LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2530-0000-000N00T20E5LED COB XLAMP NEUT WHT SQ 4000K |
4,057 | 4.80 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA1507-0000-000F0YE227FLED COB XLAMP WARM WHT SQU 2700K |
100 | 4.96 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
XPEEPR-L1-0000-00C01-SB01LED MOD XLAMP RED STARBOARD |
4,869 | 6.00 |
|
Datasheet |
XLamp® XP-E Horticulture | Bulk | Not For New Designs | LED Module | Red | - | 660nm | Starboard | 463mW (425mW ~ 500mW) | 350mA | 25°C | 2.1V | - | 1A | - | 130° | - | 19.89mm Dia | 2.04mm | - | Domed |
|

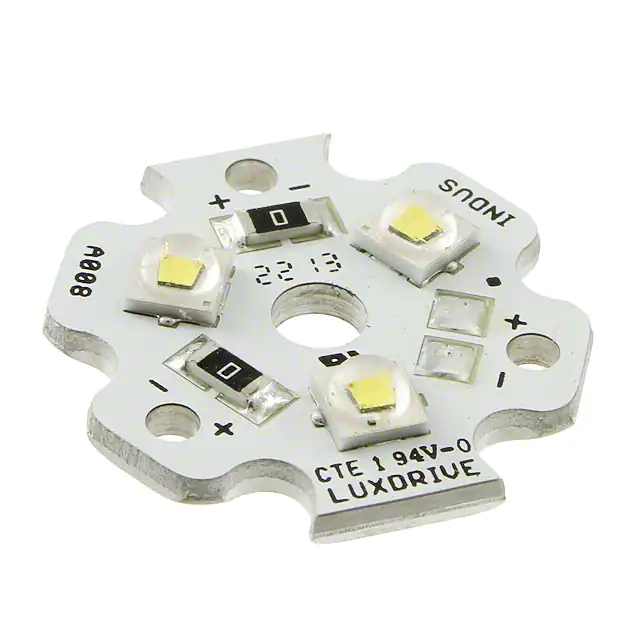

A008-E2750-Q4LED MOD INDUS STAR STARBOARD |
3,147 | 6.12 |
|
Datasheet |
Indus Star™ | - | Active | LED Module | - | - | - | Starboard | - | - | - | - | - | - | - | - | - | - | - | - | Domed |
|
|
CXA2530-0000-000N00T230HLED COB XLAMP WARM WHT SQU 3000K |
1,068 | 5.12 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU02Q-1204E1-302M2X2LED COB CLU02Q WARM WHT SQ 3000K |
2,776 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2060lm (Typ) | 360mA | 85°C | 33.8V | 157 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-302H5X3LED COB CLU02Q WARM WHT SQ 3000K |
1,644 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1781lm (Typ) | 360mA | 85°C | 33.8V | 136 lm/W | 920mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|

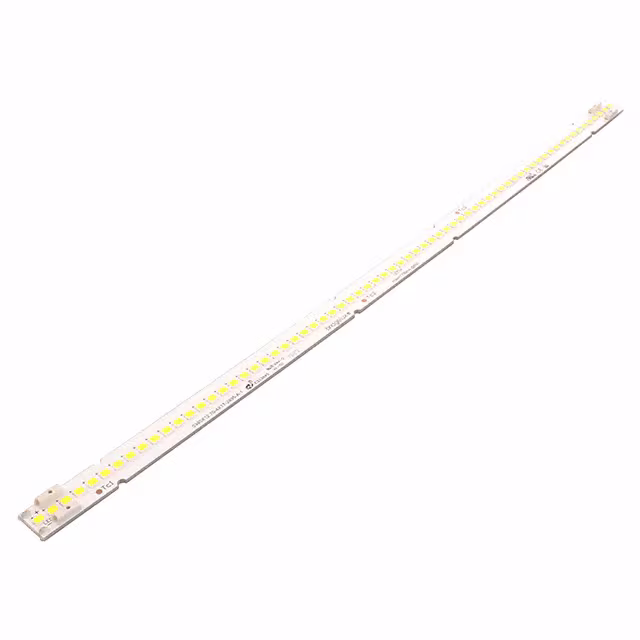

BXEB-L0340U-40E0750-C-C3LED MOD EB SER WH LNR STRP 4000K |
2,252 | 6.30 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1530lm (Typ) | 700mA | 25°C | 10.9V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 340.00mm L x 12.70mm W | 4.30mm | - | Flat |
|

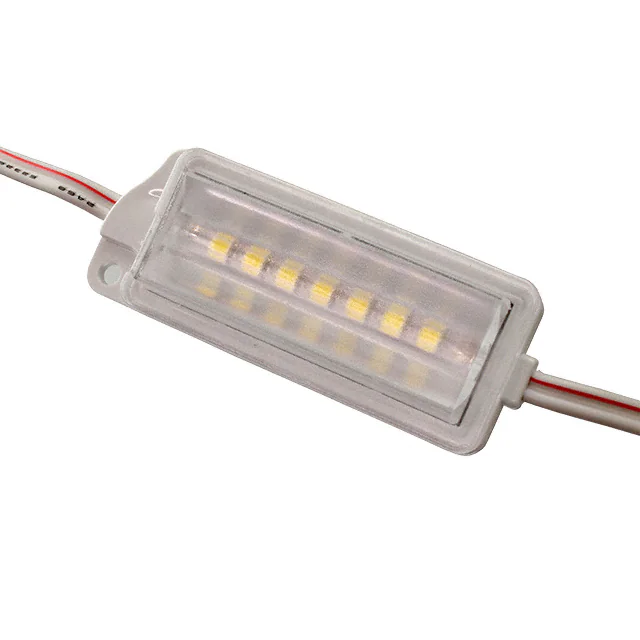

ZM-6223-CWLED MOD COOL WHT RECT 6500K |
1,742 | 7.63 |
|
Datasheet |
- | Strip | Active | LED Module | White, Cool | 6500K | - | Rectangle | 212lm | - | - | 24V | - | - | - | 18° x 70° | - | 61.70mm L x 22.86mm W | 12.32mm | - | Flat |
|
|
CLU02Q-1204E1-272H5X3LED COB CLU02Q WARM WHT SQ 2700K |
4,359 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1672lm (Typ) | 360mA | 85°C | 33.8V | 127 lm/W | 920mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-272M2X2LED COB CLU02Q WARM WHT SQ 2700K |
1,090 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1952lm (Typ) | 360mA | 85°C | 33.8V | 149 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-402M2X2LED COB CLU02Q NEUT WHT SQ 4000K |
2,819 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2085lm (Typ) | 360mA | 85°C | 33.8V | 159 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU703-1202E1-243H5X3LED COB CLU703 WARM WHT SQ 2400K |
2,664 | 0.00 |
|
Datasheet |
CLU703 | Tray | Active | Chip On Board (COB) | White, Warm | 2400K 3-Step MacAdam Ellipse | - | Square | 1330lm (Typ) | 350mA | 85°C | 36.5V | 97 lm/W | 600mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 6.00mm Dia | Flat |
|
CXA1830-0000-000N00T230GLED COB XLAMP WARM WHT SQ 3000K |
2,259 | 5.30 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 36V | 115 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA2530-0000-000N00U20E5LED COB XLAMP NEUT WHT SQ 4000K |
3,684 | 5.32 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA2520-0000-000N0HR250GLED COB XLAMP COOL WHT SQU 5000K |
100 | 5.38 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU028-1202C4-353M2K1LED COB CLU028 WARM WHT SQ 3500K |
3,382 | 7.46 |
|
Datasheet |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 937lm (Typ) | 180mA | 85°C | 34.6V | 150 lm/W | 460mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
XQEAWT-00-0000-00000HDE5-SB01LED MOD XLAMP WHT STARBRD 4000K |
4,179 | 6.72 |
|
Datasheet |
XLamp® XQ-E | Tray | Active | LED Module | White, Neutral | 4000K | - | Starboard | - | 350mA | 85°C | 2.9V | 116 lm/W | 1A | 75 | 110° | - | 19.89mm Dia | - | - | Domed |
|
BXRC-30G10H0-C-83LED COB VERO 10C STARBRD 3000K |
3,541 | 6.94 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1395lm (Typ) | 300mA | 25°C | 30.7V | 151 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
BXRC-57E1001-C-84-SELED COB VERO SE 10C WH RND 5700K |
1,727 | 6.99 |
|
Datasheet |
Gen 8 Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1595lm (Typ) | 300mA | 25°C | 30.7V | 173 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia | Flat |
