LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

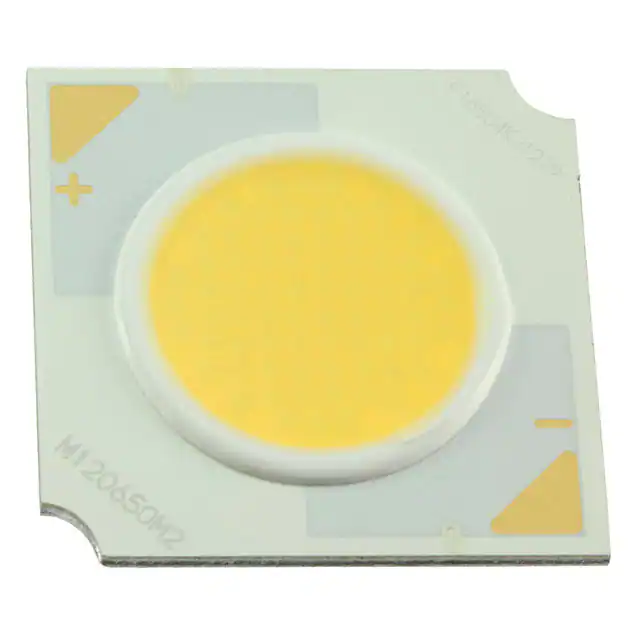

CLU721-1206C4-50AL7K3LED COB CLU721 COOL WH SQ 5000K |
3,783 | 15.41 |
|
Datasheet |
CLU721 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5084lm (Typ) | 1.05A | 85°C | 37.6V | 129 lm/W | 1.38A | 70 | - | - | 19.00mm L x 19.00mm W | - | 11.00mm Dia | Flat |
|
CLU038-1206C4-273H7K4LED COB CLU038 WARM WHT SQ 2700K |
3,371 | 15.41 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1978lm (Typ) | 540mA | 85°C | 34.6V | 106 lm/W | 1.38A | 97 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU721-1206C4-403M2K1LED COB CLU721 NEUT WH SQ 4000K |
4,855 | 15.41 |
|
Datasheet |
CLU721 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4750lm (Typ) | 1.05A | 85°C | 37.6V | 120 lm/W | 1.38A | 80 | - | - | 19.00mm L x 19.00mm W | - | 11.00mm Dia | Flat |
|
CMU2239-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
3,526 | 12.10 |
|
Datasheet |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4551lm (Typ) | 1.08A | 85°C | 33.7V | 125 lm/W | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRE-50C6501-C-74LED COB V22 CL WHT SQUARE 5000K |
1,357 | 14.64 |
|
Datasheet |
Gen 7 V22 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 11216lm (Typ) | 1.44A | 85°C | 50.7V | 154 lm/W | 2.88A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|
|
CLU04Q-1211E1-272H5X3LED COB CLU04Q WARM WHT SQ 2700K |
3,286 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4801lm (Typ) | 990mA | 85°C | 33.8V | 133 lm/W | 2.53A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
BXRV-DR-1830G-3000-A-13-S2LED COB VESTA WM WHT RECT 1800K |
1,956 | 14.82 |
|
Datasheet |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3725lm | 950mA | 25°C | 34.1V | 115 lm/W | 1.05A | 90 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 16.20mm Dia | Flat |
|
BXRC-30C4001-C-84LED COB VERO 18C WHT RND 3000K |
100 | 16.80 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 6701lm (Typ) | 1.05A | 25°C | 33.9V | 188 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
BXRC-50G4001-C-84-SELED COB VERO SE 18C WH RND 5000K |
3,103 | 16.82 |
|
Datasheet |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 5685lm (Typ) | 1.05A | 25°C | 33.9V | 160 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
|
BXRC-27E4000-C-83-SELED COB VERO SE 18C WH RND 2700K |
2,663 | 16.82 |
|
Datasheet |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 5945lm (Typ) | 1.05A | 25°C | 33.9V | 167 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|

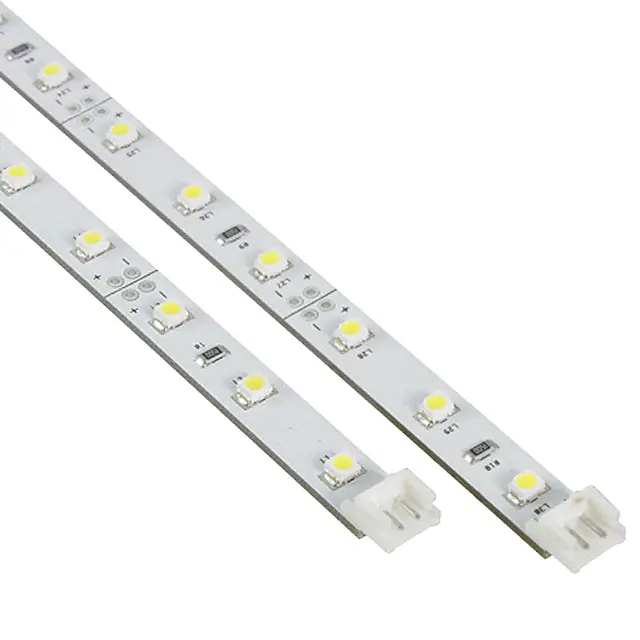

ZRS-8480-CWLED ENG CL WHT LNR LGT STRIP |
4,169 | 16.97 |
|
Datasheet |
- | Tube | Active | LED Engine | White, Cool | - | - | Linear Light Strip | 90lm (Typ) | 200mA | 25°C | 12V | 38 lm/W | 200mA | - | 120° | With Connector | 480.00mm L x 8.00mm W | 3.60mm | - | Flat |
|
|
CLU04Q-1212E1-402H5X3LED COB CLU04Q NEUT WHT SQ 4000K |
2,177 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5899lm (Typ) | 1.08A | 85°C | 33.8V | 150 lm/W | 2.76A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
AB-FO02465-02012-9A1LED COB AB-FO WH LNR STRP 6500K |
3,456 | 5.00 |
|
Datasheet |
AB-FO | Bag | Active | Chip On Board (COB) | White, Cool | 6500K | - | Linear Light Strip, Flexible | 550lm | 250mA | - | 24V | 90 lm/W | 250mA | 90 | 150° | IP65 | - | 2.20mm | - | Flat |
|
|
CLU04Q-1212E1-403L7X4LED COB CLU04Q NEUT WHT SQ 4000K |
2,206 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6965lm (Typ) | 1.08A | 85°C | 33.8V | 177 lm/W | 2.76A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1212E1-303L7X4LED COB CLU04Q WM WHT SQ 3000K |
4,086 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6925lm | 1.08A | 85°C | 33.8V | 176 lm/W | 2.76A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1212E1-503L7X4LED COB CLU04Q COOL WHT SQ 5000K |
4,390 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6991lm (Typ) | 1.08A | 85°C | 33.8V | 178 lm/W | 2.76A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1212E1-402M2X2LED COB CLU04Q NEUT WHT SQ 4000K |
1,517 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 6642lm (Typ) | 1.08A | 85°C | 33.8V | 169 lm/W | 2.76A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1212E1-352H5X3LED COB CLU04Q WARM WHT SQ 3500K |
2,122 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5693lm (Typ) | 1.08A | 85°C | 33.8V | 145 lm/W | 2.76A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
AB-GES-C04108W50BN2LED ENG AB-GES COOL WH RND 5000K |
1,830 | 17.49 |
|
Datasheet |
AB-GES | Bag | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 900lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 45.00mm Dia | - | - | Flat |
|
|
BXRE-27G65F0-C-83LED COB V22 F90 ARRAY SQ 2700K |
4,486 | 0.00 |
|
Datasheet |
V22 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 20808lm | - | 85°C | 57V | 135 lm/W | 2.7A | 90 | 120° | Dimming | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
