LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-40G10K0-B-73LED COB VERO 29 WHT RND 4000K |
1,253 | 23.56 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13304lm (Typ) | 1.8A | 25°C | 52V | 142 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-50E10K1-C-84-SELED COB VERO SE 29C WH RND 5000K |
4,590 | 39.46 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 16662lm (Typ) | 1.3A | 25°C | 66.7V | 192 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
CMB3090-0000-000Q0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
2,577 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12488lm | 1.8A | 85°C | 45.4V | 153 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|

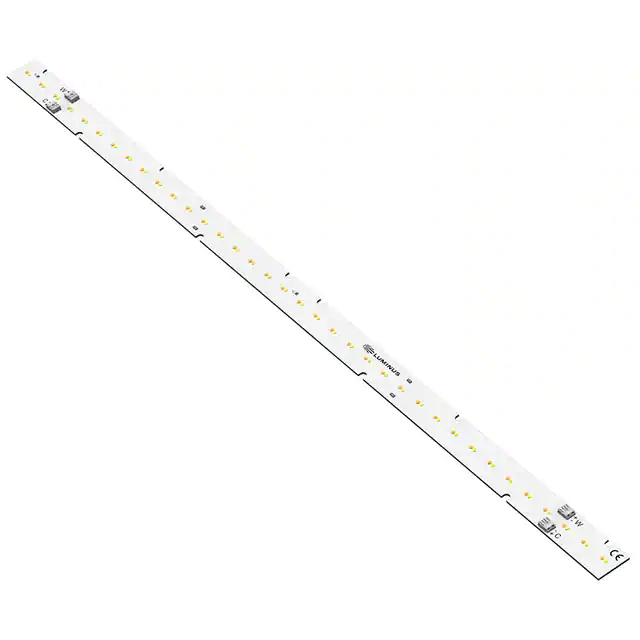

CSB1-72G02-6527-90-00LED MOD CSB1 WHT LNR STRP 6500K |
1,415 | 18.55 |
|
Datasheet |
CSB1, New Energy™ | Tray | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Linear Light Strip | 2409lm (Typ) | 480mA | - | 35.4V | 128 lm/W | 600mA | 90 | - | - | 559.50mm L x 22.00mm W | 4.20mm | - | Flat |
|
|
BXRC-35E10K0-D-72LED COB VERO 29 WM WHT RND 3500K |
3,636 | 24.74 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 13013lm (Typ) | 2.1A | 25°C | 37.6V | 165 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-40E10K0-C-73-SELED COB VERO SE 29 WHT RND 4000K |
4,818 | 25.40 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 19581lm (Typ) | 1.71A | 25°C | 69.4V | 165 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-C-73-SELED COB VERO WHT RND 3000K |
3,543 | 25.40 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 18869lm (Typ) | 1.71A | 25°C | 69.4V | 159 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-35G10K0-C-73-SELED COB VERO SE 29 WHT RND 3500K |
3,996 | 25.40 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 16258lm (Typ) | 1.71A | 25°C | 69.4V | 137 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
CLU048-1212C4-353M2K1LED COB CLU048 WARM WHT SQ 3500K |
4,052 | 28.93 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5674lm (Typ) | 1.08A | 85°C | 34.6V | 152 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-303M2K1LED COB CLU048 WM WHT SQ 3000K |
1,724 | 28.93 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5562lm (Typ) | 1.08A | 85°C | 34.6V | 149 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|

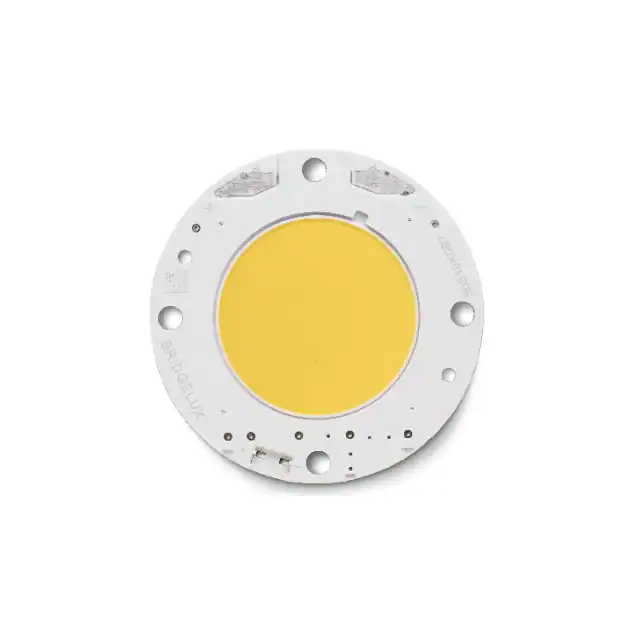

BXRC-30E10K0-C-83LED COB VERO 29C WHT RND 3000K |
4,430 | 39.35 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 16043lm (Typ) | 1.3A | 25°C | 66.7V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
CLU04Q-1818E1-352M2X2LED COB CLU04Q WARM WHT SQ 3500K |
4,171 | 0.00 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 13828lm (Typ) | 1.62A | 85°C | 50.7V | 157 lm/W | 4.14A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0Z0A40HLED COB XLAMP NEUT WHT SQU 4000K |
2,084 | 24.20 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 10198lm (Typ) | 1.62A | 85°C | 50.5V | 125 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
BXRC-30E10K0-C-73LED COB VERO 29 WM WH RND 3000K |
100 | 30.64 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 18946lm (Typ) | 1.71A | 25°C | 69.4V | 160 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-40E10K0-C-73LED COB VERO 29 WHT RND 4000K |
4,816 | 30.64 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 19680lm (Typ) | 1.71A | 25°C | 69.4V | 166 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
LZ4-V0UBH0-00U5LED MOD ROUND |
3,974 | 0.00 |
|
Datasheet |
- | Tray | Active | LED Module | - | - | - | Round | - | 700mA | - | - | - | - | - | - | - | 19.90mm Dia | 5.40mm | 6.20mm Dia | Domed |
|
|
BXRC-40E10K0-C-83LED COB VERO 29C WHT ROUND 4000K |
100 | 39.35 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 16515lm (Typ) | 1.3A | 25°C | 66.7V | 190 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-50C10K1-C-83LED COB VERO 29C WHT ROUND 5000K |
1,615 | 41.31 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 17364lm (Typ) | 1.3A | 25°C | 66.7V | 200 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
CXB3590-0000-00PR0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
4,183 | 0.00 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 1.2A | 85°C | 72V | - | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
ZWF-337-24CWLED MOD ALUMILINE WH LNR STRP 1' |
4,350 | 4.00 |
|
Datasheet |
ALUMILINE® ZWF | Tube | Active | LED Module | White, Cool | 6000K | - | Linear Light Strip, Plug and Play | 248lm | 120mA | 25°C | - | - | - | - | - | IP67 | 337.00mm L x 12.70mm W | - | - | Flat |
