LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-30E6500-D-83LED COB V SER GEN 8 WH SQ 3000K |
2,357 | 14.79 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6407lm (Typ) | 1.05A | 25°C | 33.5V | 182 lm/W | - | 80 | - | - | - | - | 22.00mm Dia | Flat |
|
CLU03Q-1208E1-352H5X3LED COB CLU03Q WARM WHT SQ 3500K |
3,847 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3723lm (Typ) | 720mA | 85°C | 33.8V | 142 lm/W | 1.84A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1208E1-302H5X3LED COB CLU03Q WARM WHT SQ 3000K |
3,757 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3601lm (Typ) | 720mA | 85°C | 33.8V | 137 lm/W | 1.84A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
BXRC-30G20H0-C-83-SELED COB VERO SE13C WH RND 3000K |
3,531 | 10.90 |
|
Datasheet |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2482lm (Typ) | 500mA | 25°C | 33.4V | 149 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|
|
BXRC-30C2001-C-84-SELED COB VERO SE 13C WH RND 3000K |
1,774 | 10.90 |
|
Datasheet |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 3058lm (Typ) | 500mA | 25°C | 33.4V | 183 lm/W | 1.75A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|
|
BXRC-27E2000-C-83-SELED COB VERO SE 13C WH RND 2700K |
1,519 | 10.90 |
|
Datasheet |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2749lm (Typ) | 500mA | 25°C | 33.4V | 165 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|
|
CLM-22-27-90-36-AC30-F4-3LED COB CLM-22 GEN3 WHT SQ 2700K |
3,482 | 17.34 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4485lm (Typ) | 1.1A | 85°C | 33.8V | 121 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|

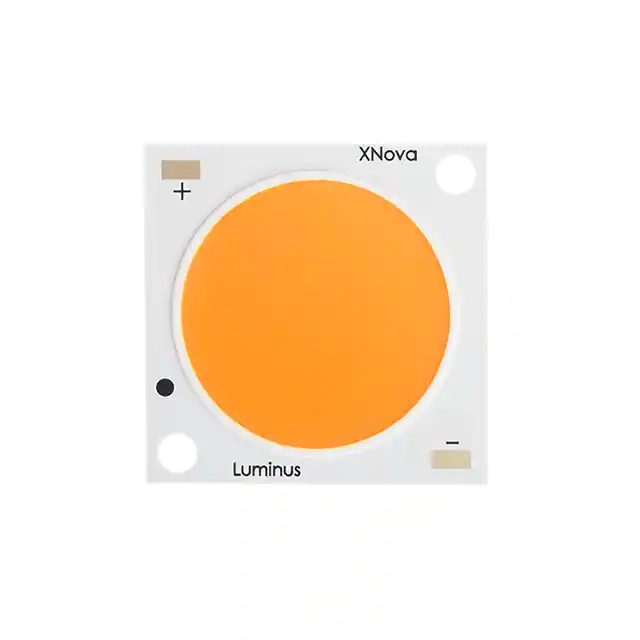

CLM-22-30-80-36-AC30-F4-3LED COB CLM-22 GEN3 WH SQ 3000K |
1,723 | 17.34 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5750lm (Typ) | 1.1A | 85°C | 33.8V | 155 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CMT1930-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
4,241 | 10.80 |
|
Datasheet |
XLamp® CMT1930 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3724lm (Typ) | 800mA | 85°C | 34.4V | 135 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
|

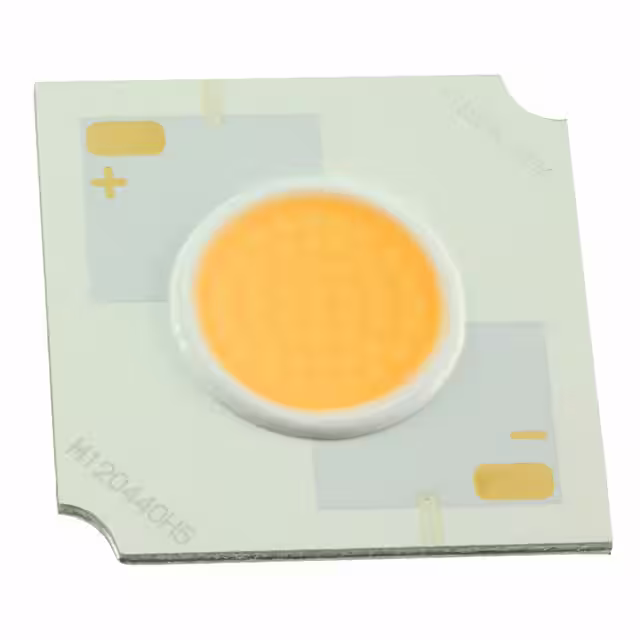

CLU711-1204C4-403H5K2LED COB CLU711 NEUT WH SQ 4000K |
4,797 | 12.28 |
|
Datasheet |
CLU711 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2619lm (Typ) | 700mA | 85°C | 37.6V | 100 lm/W | 920mA | 90 | - | - | 19.00mm L x 19.00mm W | - | 8.50mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
2,514 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3693lm | 800mA | 85°C | 35V | 132 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CLU03Q-1208E1-272H7X5LED COB CLU03Q WARM WHT SQ 2700K |
4,306 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2994lm (Typ) | 720mA | 85°C | 33.8V | 114 lm/W | 1.84A | 97 (Typ) | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CMB1840-R096-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
1,715 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4912lm | 1.1A | 85°C | 34.4V | 130 lm/W | 2.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
BXRC-27G4000-C-83LED COB VERO 18C WM WH RND 2700K |
1,118 | 16.80 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4969lm (Typ) | 1.05A | 25°C | 33.9V | 140 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|

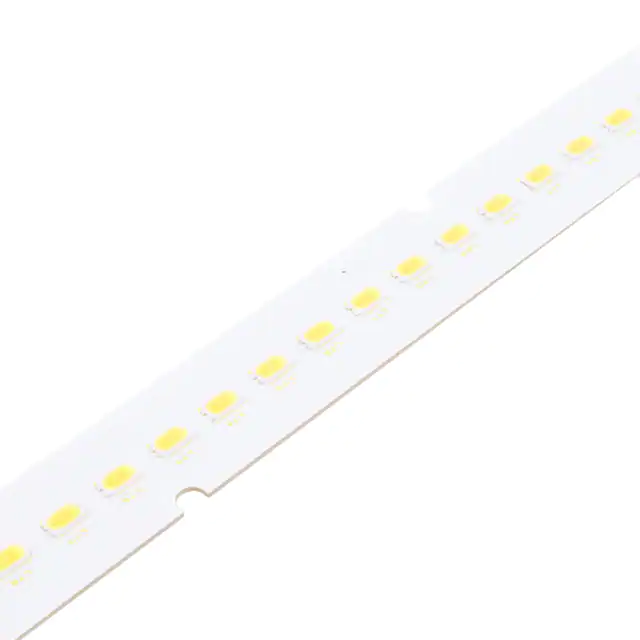

SMJD-3622120B-XXN1 00E26F038ALLLED MOD HE WARM WHT RECT 3500K |
1,991 | 16.82 |
|
Datasheet |
HE | Tray | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 4260lm (Typ) | 650mA | 25°C | 33.6V | 195 lm/W | 1.3A | 80 | - | - | 1120.00mm L x 20.00mm W | 5.50mm | - | Flat |
|
|
SPHWHAHDNM271ZV3DBLED COB D GEN2 WM WHT SQ 3000K |
3,060 | 12.34 |
|
Datasheet |
COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12468lm (Typ) | 1.62A | 85°C | 51.1V | 151 lm/W | 3.24A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2239-0000-000N0U0A30HLED COB XLAMP WARM WHT SQU 3000K |
4,619 | 10.08 |
|
Datasheet |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5136lm (Typ) | 1.08A | 85°C | 33.7V | 141 lm/W | 2.88A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXA2540-0000-000N00W250FLED COB XLAMP COOL WHT SQU 5000K |
100 | 10.34 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 37V | 124 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CLU723-1206E1-303M2X2LED COB CLU723 WM WHT SQ 3000K |
1,792 | 0.00 |
|
Datasheet |
CLU723 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5346lm (Typ) | 1.05A | 85°C | 36.5V | 131 lm/W | 1.38A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 11.00mm Dia | Flat |
|
|
CXA2540-0000-000N0UU240HLED COB XLAMP NEUT WHT SQU 4000K |
3,824 | 10.50 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
