LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNL271ZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
2,058 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 8421lm (Typ) | 1.08A | 85°C | 50.5V | 154 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
CMA1840-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
4,253 | 11.25 |
|
Datasheet |
XLamp® CMA1840 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5035lm (Typ) | 1.1A | 85°C | 34.7V | 132 lm/W | 1.26A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CMU2236-0000-000N0Z0A40HLED COB XLAMP NEUT WHT SQU 4000K |
1,456 | 10.90 |
|
Datasheet |
XLamp® CMU2236 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4319lm (Typ) | 990mA | 85°C | 33.7V | 129 lm/W | 2.64A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
4,276 | 10.90 |
|
Datasheet |
XLamp® CMU2236 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4173lm (Typ) | 990mA | 85°C | 33.7V | 125 lm/W | 2.64A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZV3D4LED COB D GEN4 WM WHT SQ 3000K |
4,935 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9234lm (Typ) | 1.08A | 85°C | 50.5V | 169 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM231ZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
3,240 | 15.84 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 14290lm (Typ) | 1.62A | 85°C | 50.6V | 175 lm/W | 3.24A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXM-22-50-80-54-AC30-F4-3LED COB CXM-22 GEN3 WHT SQ 5000K |
4,690 | 22.76 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 8700lm (Typ) | 1.1A | 85°C | 51V | 155 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CXM-14-30-90-36-AC32-F4-3LED COB SENSUS WM WHT SQ 3000K |
4,393 | 14.06 |
|
Datasheet |
Sensus™ | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2880lm (Typ) | 720mA | 85°C | 34V | 118 lm/W | 1.44A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.30mm Dia | Flat |
|
CXA2540-0000-000N0YU230HLED COB XLAMP WARM WHT SQU 3000K |
4,470 | 11.84 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU038-1206C4-353M2K1LED COB CLU038 WARM WHT SQ 3500K |
2,673 | 15.41 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2798lm (Typ) | 540mA | 85°C | 34.6V | 150 lm/W | 1.38A | 80 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
CDM-18-4027-90-36-DW01LED MOD CDM WHITE RECT 4000K |
3,738 | 14.65 |
|
Datasheet |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 3190lm (Typ) | 900mA | 85°C | 35.5V | 100 lm/W | 1.08A | 92 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 16.80mm Dia | Flat |
|

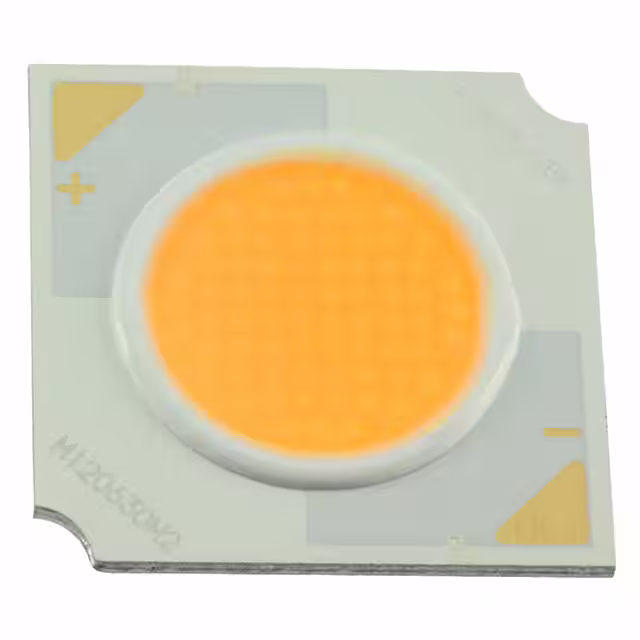

CLU721-1206C4-303M2K1LED COB CLU721 WM WHT SQ 3000K |
4,466 | 15.41 |
|
Datasheet |
CLU721 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4555lm (Typ) | 1.05A | 85°C | 37.6V | 115 lm/W | 1.38A | 80 | - | - | 19.00mm L x 19.00mm W | - | 11.00mm Dia | Flat |
|
|
CLU038-1206C4-303H5K2LED COB CLU038 WM WHT SQ 3000K |
1,341 | 15.41 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2265lm (Typ) | 540mA | 85°C | 34.6V | 121 lm/W | 1.38A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU721-1206C4-303H5K2LED COB CLU721 WM WHT SQ 3000K |
3,346 | 15.41 |
|
Datasheet |
CLU721 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3764lm (Typ) | 1.05A | 85°C | 37.6V | 95 lm/W | 1.38A | 90 | - | - | 19.00mm L x 19.00mm W | - | 11.00mm Dia | Flat |
|
|
CMU2258-0000-000P0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
100 | 12.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8797lm (Typ) | 1.08A | 85°C | 50.5V | 161 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-0000-000P0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
3,900 | 12.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8870lm (Typ) | 1.08A | 85°C | 50.5V | 163 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CLU038-1210C4-353H5K2LED COB CLU038 WARM WHT SQ 3500K |
2,685 | 23.85 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3690lm (Typ) | 900mA | 85°C | 34.6V | 118 lm/W | 2.3A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
CLU731-1210C4-50AL7K3LED COB CLU731 COOL WH SQ 5000K |
4,364 | 21.84 |
|
Datasheet |
CLU731 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 8595lm (Typ) | 1.75A | 85°C | 37.6V | 131 lm/W | 2.3A | 70 | - | - | 28.00mm L x 28.00mm W | - | 13.00mm Dia | Flat |
|
|
CMU2239-0000-000N0Z0A40HLED COB XLAMP NEUT WHT SQU 4000K |
4,388 | 12.10 |
|
Datasheet |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4712lm (Typ) | 1.08A | 85°C | 33.7V | 129 lm/W | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRE-40E6500-C-73LED COB V22 NEUT WHT SQU 4000K |
3,860 | 14.64 |
|
Datasheet |
Gen 7 V22 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 10885lm (Typ) | 1.44A | 85°C | 50.7V | 149 lm/W | 2.88A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
