LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBT-140-WDH-L16-RA220LED MOD CBT-140 WHT RECT 6020K |
1,265 | 122.37 |
|
Datasheet |
CBT-140 | Tray | Active | LED Module | White, Cool | 5310K ~ 6020K | - | Rectangle | 2510lm (2420lm ~ 2600lm) | 21A | 85°C | 3.6V | 33 lm/W | 28A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
12V-UB-BLU-12MLED ENG BLU 465NM 3LEDS 12M REEL |
1,635 | 0.49 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | Blue | - | 465nm | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | 120° | - | 12000.0mm L x 8.00mm W (26.92mm L per Segment) | 1.50mm | - | Flat |
|

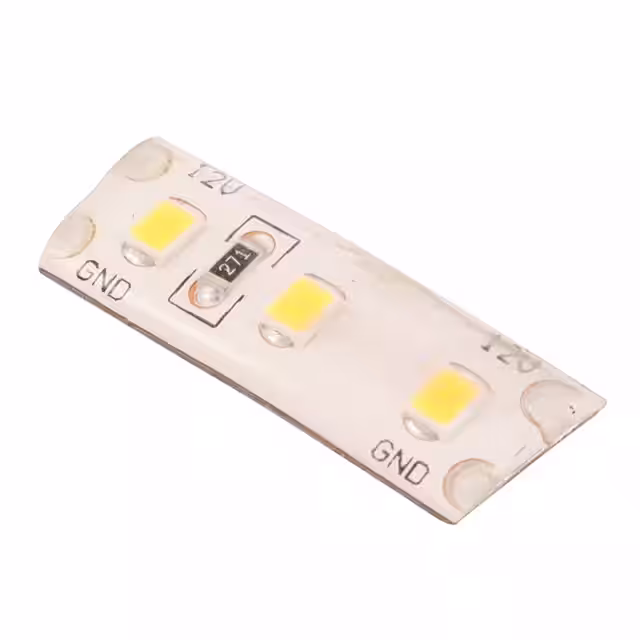

AB-FC01240-19700-8A1LED MOD AB-FC WH LNR STRP 4000K |
2,958 | 0.69 |
|
Datasheet |
AB-FC | Tape & Reel (TR) | Active | LED Module | White, Warm | 4000K | - | Linear Light Strip, Flexible | 334lm | 660mA | 25°C | 12V | 46 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W (25.00mm L per Segment) | 2.50mm | - | Flat |
|

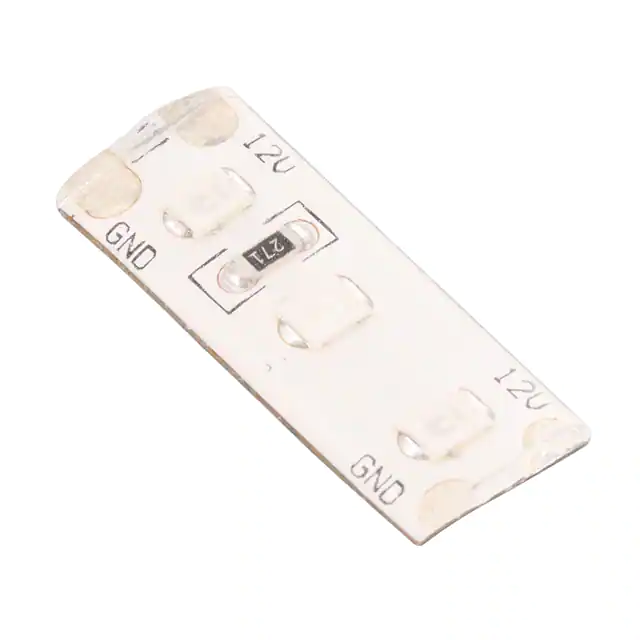

AB-FC012BL-19700-XA1LED MOD AB-FC BLUE LNR STRIP |
2,826 | 1.12 |
|
Datasheet |
AB-FC | Tape & Reel (TR) | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 168lm | 660mA | 25°C | 12V | 90 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W (25.00mm L per Segment) | 2.50mm | - | Flat |
|

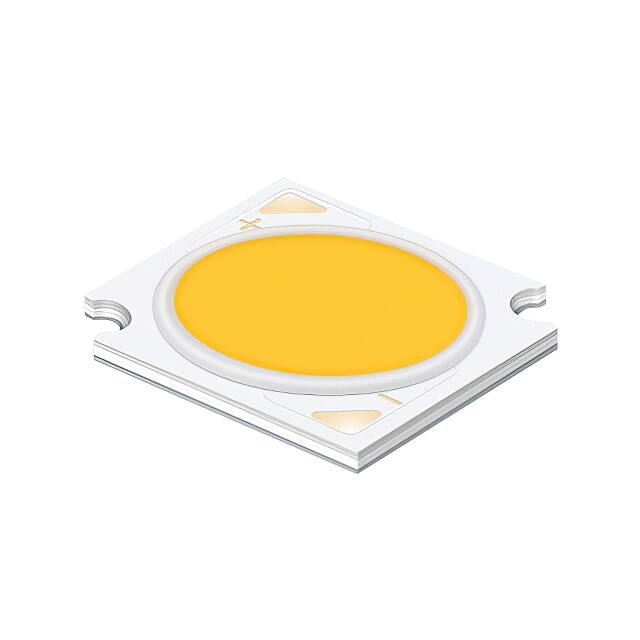

SPHWHAHDNA25YZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
358 | 1.76 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 544lm (Typ) | 90mA | 85°C | 33.6V | 180 lm/W | 230mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|

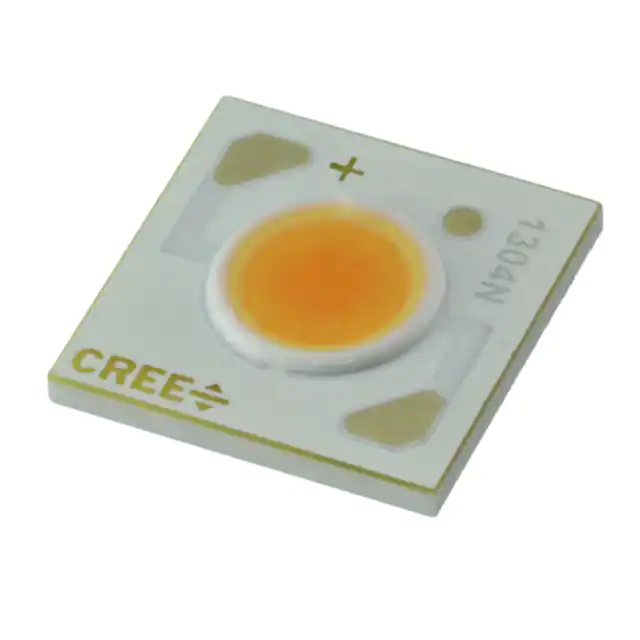

CXA1304-0000-000C00B40E3LED COB XLAMP COOL WHT SQ 5000K |
139 | 1.04 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00B40E5LED COB XLAMP NEUT WHT SQ 4000K |
114 | 1.10 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|

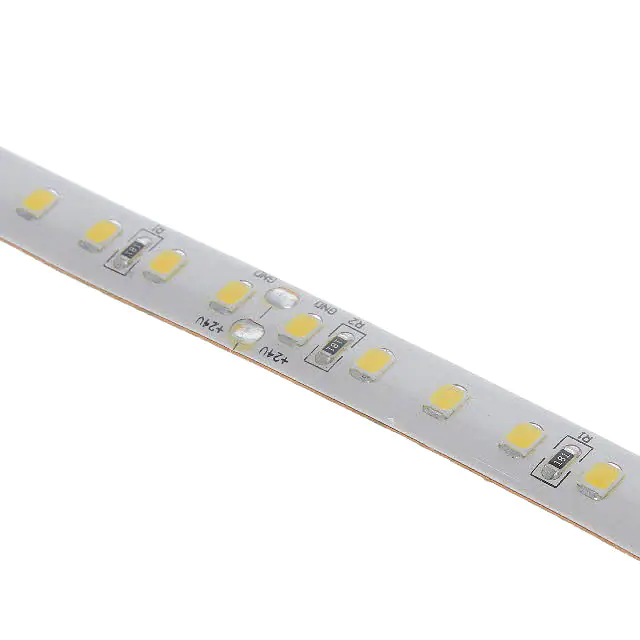

AB-FC02450-19700-8A1LED MOD AB-FC WH LNR STRP 5000K |
2,036 | 1.23 |
|
Datasheet |
AB-FC | Tape & Reel (TR) | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 334lm | 660mA | 25°C | 24V | 46 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W (50.00mm L per Segment) | 2.50mm | - | Flat |
|
CXM-4-30-90-36-AC40-F5-3LED COB CXM-4 WARM WHT SQ 3000K |
1,654 | 2.18 |
|
Datasheet |
CXM-4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 470lm (Typ) | 120mA | 25°C | 33.8V | 116 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CXA1304-0000-000F00B430GLED COB XLAMP WARM WHT SQ 3000K |
157 | 1.26 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 200mA | 85°C | 18V | 118 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXM-4-40-95-36-AC40-F5-3LED COB CXM-4 NEUT WHT SQU 4000K |
1,457 | 2.46 |
|
Datasheet |
CXM-4 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 455lm (Typ) | 120mA | 25°C | 33.8V | 112 lm/W | 400mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
SPHWHAHDNA27WJV3DBLED COB D GEN2 WM WHT SQ 3000K |
177 | 1.37 |
|
Datasheet |
COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 485lm (Typ) | 180mA | 85°C | 17V | 158 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
BXRH-30H0600-B-83LED COB V4 HD WARM WHT SQ 3000K |
287 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 638lm (Typ) | 350mA | 25°C | 18.3V | 100 lm/W | 600mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
BXRH-40E1000-B-73LED COB V6 HD NEUT WHT SQU 4000K |
721 | 1.67 |
|
Datasheet |
Gen 7 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1452lm (Typ) | 350mA | 85°C | 35.4V | 117 lm/W | 480mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia | Flat |
|
|
BXRH-30G1000-B-73LED COB V6 HD WARM WHT SQ 3000K |
563 | 1.67 |
|
Datasheet |
Gen 7 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1173lm (Typ) | 350mA | 85°C | 35.4V | 95 lm/W | 480mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia | Flat |
|
|
BXRH-27E1000-B-73LED COB V6 HD WARM WHT SQU 2700K |
417 | 1.67 |
|
Datasheet |
Gen 7 V6 HD LED Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1327lm (Typ) | 350mA | 85°C | 35.4V | 107 lm/W | 480mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia | Flat |
|
|
BXRH-30E1000-B-73LED COB V6 HD WARM WHT SQ 3000K |
288 | 1.67 |
|
Datasheet |
Gen 7 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1397lm (Typ) | 350mA | 85°C | 35.4V | 113 lm/W | 480mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia | Flat |
|
|
SPHWHAHDNA27YZV3D4LED COB D GEN4 WM WHT SQ 3000K |
363 | 1.76 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 443lm (Typ) | 90mA | 85°C | 33.6V | 146 lm/W | 230mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
BXRH-30H1000-B-73LED COB V6 HD WARM WHT SQ 3000K |
416 | 1.76 |
|
Datasheet |
Gen 7 V6 HD LED Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1033lm (Typ) | 350mA | 85°C | 35.4V | 83 lm/W | 480mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia | Flat |
|

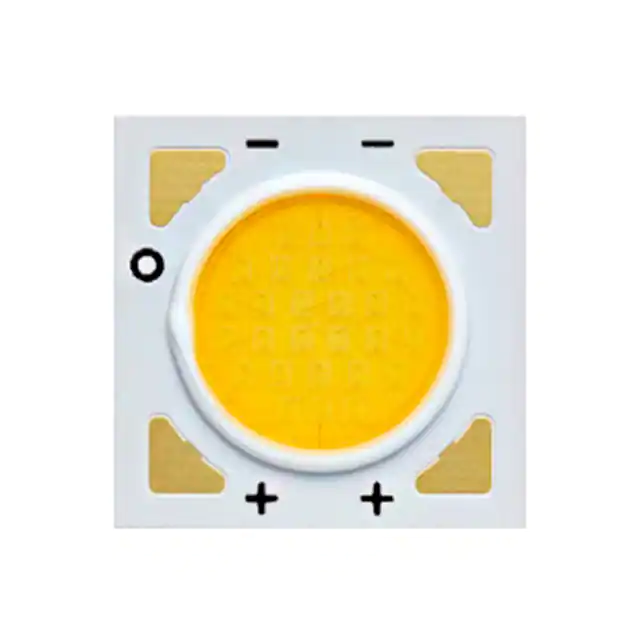

BXRE-40E0800-D-73LED COB V8 NEUT WHT SQUARE 4000K |
312 | 1.81 |
|
Datasheet |
Gen 7 V8 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 850lm (Typ) | 350mA | 85°C | 16.7V | 145 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
