LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1507-0000-000N00H257FLED COB XLAMP COOL WHT SQU 5700K |
106 | 1.54 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 200mA | 85°C | 37V | 126 lm/W | 375mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CHA0304-0000-000G0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
346 | 0.00 |
|
Datasheet |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 475lm | 175mA | 85°C | 21V | - | 300mA | 80 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
CMB1304-0000-000F0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
323 | 0.00 |
|
Datasheet |
XLamp® CMB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 535lm | 200mA | 85°C | 16.7V | 160 lm/W | 1.2A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1304-0000-000C0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
286 | 0.00 |
|
Datasheet |
XLamp® CMB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 543lm | 400mA | 85°C | 8.3V | 164 lm/W | 1.2A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1304-0000-000C0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
199 | 0.00 |
|
Datasheet |
XLamp® CMB1304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 548lm | 400mA | 85°C | 8.3V | 165 lm/W | 1.2A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
BXRE-50C0801-D-73LED COB V8 COOL WHT SQUARE 5000K |
183 | 1.96 |
|
Datasheet |
Gen 7 V8 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 932lm (Typ) | 350mA | 85°C | 16.7V | 159 lm/W | 700mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
CMB1304-0000-000C0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
158 | 0.00 |
|
Datasheet |
XLamp® CMB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 464lm | 400mA | 85°C | 8.3V | 140 lm/W | 1.2A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CHA0304-0000-000G0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
399 | 0.00 |
|
Datasheet |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 391lm (Typ) | 175mA | 85°C | 21V | - | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
BXRH-40H0300-B-83LED COB V3 NEUT WHT SQUARE 4000K |
532 | 1.92 |
|
Datasheet |
Gen 8 V3 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 307lm (Typ) | 160mA | 25°C | 17.6V | 109 lm/W | 360mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 3.80mm Dia | Flat |
|
|
BXRH-27H0300-B-83LED COB V3 WARM WHT SQUARE 2700K |
291 | 1.92 |
|
Datasheet |
Gen 8 V3 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 273lm (Typ) | 160mA | 25°C | 17.6V | 97 lm/W | 360mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 3.80mm Dia | Flat |
|
BXRE-40E0400-C-83LED COB V6 NEUT WHT SQUARE 4000K |
431 | 3.09 |
|
Datasheet |
Gen 8 V6 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 478lm (Typ) | 80mA | 25°C | 33.7V | 177 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia | Flat |
|

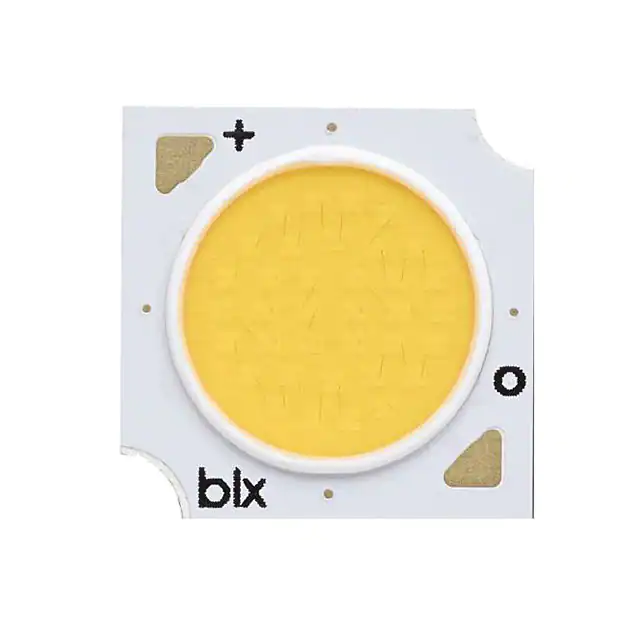

BXRE-30E1000-B-73LED COB V10 WM WH SQUARE 3000K |
607 | 2.25 |
|
Datasheet |
Gen 7 V10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1276lm (Typ) | 270mA | 85°C | 34V | 139 lm/W | 540mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
|
BXRE-30G1000-B-73LED COB V10 WM WH SQUARE 3000K |
577 | 2.25 |
|
Datasheet |
Gen 7 V10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1049lm (Typ) | 270mA | 85°C | 34V | 114 lm/W | 540mA | 90 | - | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
|
BXRH-27G0600-B-83LED COB V4 HD WARM WHT SQU 2700K |
320 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 674lm (Typ) | 350mA | 25°C | 18.3V | 105 lm/W | 600mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|

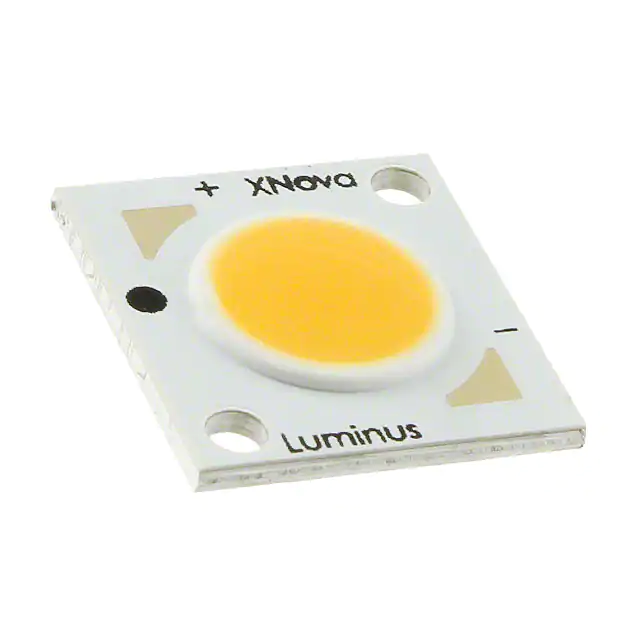

CXM-6-27-80-36-AA00-F2-3LED COB CXM-6 WARM WHT SQU 2700K |
2,378 | 1.98 |
|
Datasheet |
CXM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 120mA | - | 35V | - | 240mA | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CMB1304-R160-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
115 | 0.00 |
|
Datasheet |
XLamp® CMB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 543lm | 100mA | 85°C | 33.6V | 162 lm/W | 1.2A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
SPHWHAHDNB27YZW3DCLED COB D GEN3 WARM WHT SQ 2700K |
280 | 2.18 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 796lm (Typ) | 180mA | 85°C | 33.7V | 130 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
BXRH-27G10H0-G-83LED COB V6 HD WARM WHT SQU 2700K |
128 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1448lm (Typ) | 700mA | 25°C | 18.3V | 113 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-40H0600-B-83LED COB V4 HD NEUT WHT SQU 4000K |
573 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 674lm (Typ) | 350mA | 25°C | 18.3V | 105 lm/W | 600mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
|
BXRH-35G0600-A-83LED COB V4 HD WARM WHT SQU 3500K |
531 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 730lm (Typ) | 175mA | 25°C | 36.6V | 114 lm/W | 300mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
