LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

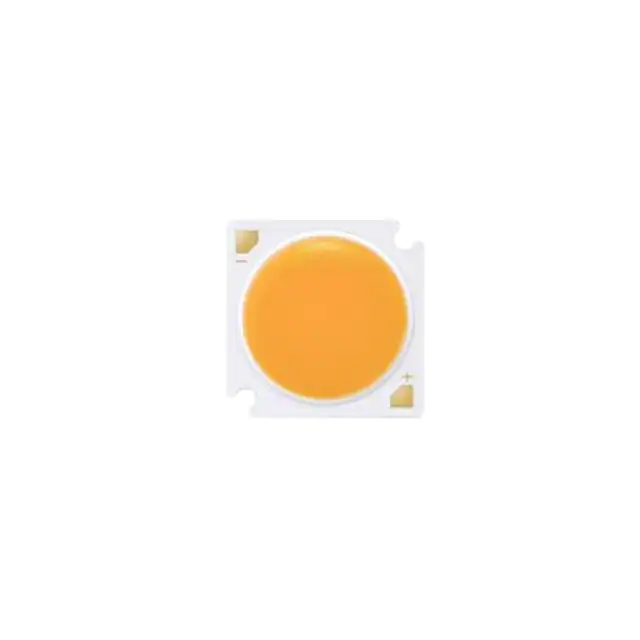

SPHWHAHDND25YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
347 | 3.05 |
|
Datasheet |
COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1857lm (Typ) | 360mA | 85°C | 34V | 152 lm/W | 720mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
CXM-6-30-90-18-AC40-F5-3LED COB WARM WHT SQUARE 3000K |
2,153 | 2.98 |
|
Datasheet |
- | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 665lm (Typ) | 300mA | 85°C | 16.65V | 133 lm/W | 900mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CXM-6-30-90-36-AC40-F5-3LED COB WARM WHT SQUARE 3000K |
379 | 2.98 |
|
Datasheet |
- | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 665lm (Typ) | 150mA | 85°C | 33.3V | 133 lm/W | 450mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CXM-6-30-90-36-TC41-F5-2LED COB CXM-6 WARM WHT SQU 3000K |
235 | 2.98 |
|
Datasheet |
CXM-6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 150mA | 25°C | 33.3V | 142 lm/W | 450mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
BXRE-65E0401-C-83LED COB V6 COOL WHT SQUARE 6500K |
565 | 3.23 |
|
Datasheet |
Gen 8 V6 Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 469lm (Typ) | 80mA | 25°C | 33.7V | 174 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia | Flat |
|
CXA1304-0000-000C0Y9427FLED COB XLAMP WARM WHT SQU 2700K |
252 | 2.60 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 310lm (290lm ~ 330lm) | 400mA | 85°C | 9V | 86 lm/W | 1A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|

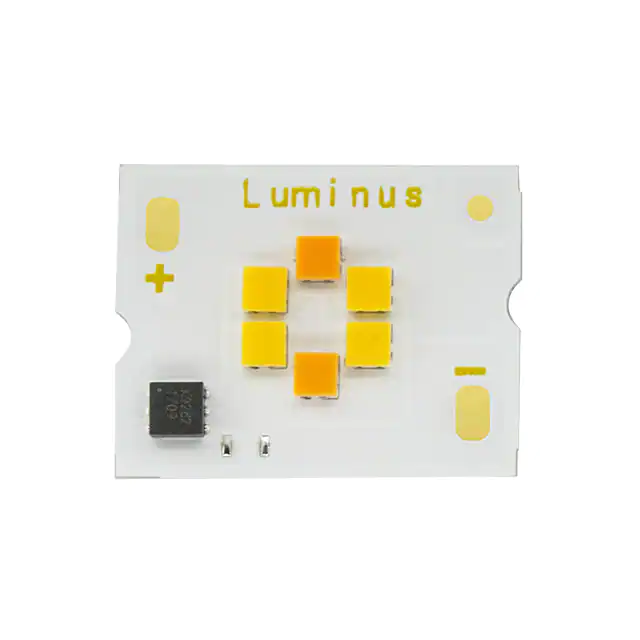

CDM-6-3018-90-18-DW02LED MOD CDM WARM WHT RECT 3000K |
771 | 5.09 |
|
Datasheet |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 438lm (Typ) | 300mA | 85°C | 17.8V | 82 lm/W | 440mA | 90 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 6.80mm Dia | Flat |
|
CXA1512-0000-000N00M40E5LED COB XLAMP NEUT WHT SQ 4000K |
180 | 2.62 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 37V | 119 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|

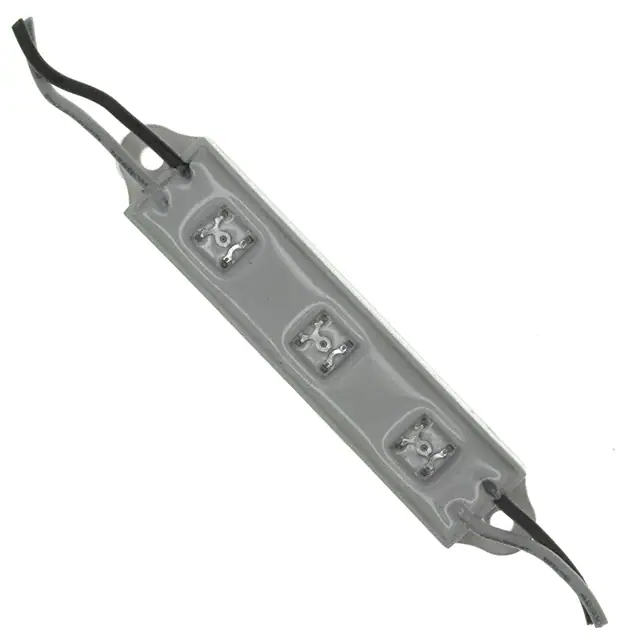

OVM12F3Y7LED ENG YELLOW LINEAR STRIP |
563 | 3.07 |
|
Datasheet |
- | Tray | Active | LED Engine | Yellow | - | 590nm | Linear Light Strip, Plug and Play | - | 42mA | - | - | - | 42mA | - | 120° | - | 73.30mm L x 17.80mm W | 11.50mm | - | Flat |
|
|
SPHWHAHDNC27YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
500 | 2.97 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1294lm (Typ) | 270mA | 85°C | 33.7V | 142 lm/W | 540mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZW3DCLED COB D GEN3 WARM WHT SQ 2700K |
500 | 2.97 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1406lm (Typ) | 270mA | 85°C | 33.7V | 155 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|

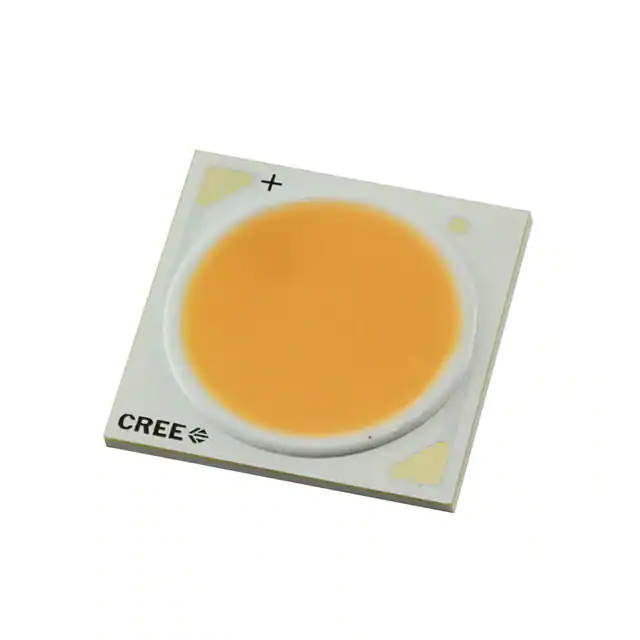

CXA1507-0000-000N00F20E7LED COB XLAMP WARM WHT SQ 3000K |
197 | 2.66 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 705lm (680lm ~ 730lm) | 200mA | 85°C | 37V | 95 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N00M40E3LED COB XLAMP COOL WHT SQ 5000K |
184 | 2.70 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 37V | 119 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
BXRH-30G1000-B-83LED COB V6 HD WARM WHT SQ 3000K |
596 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1459lm (Typ) | 350mA | 25°C | 36.6V | 114 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-27G1000-B-83LED COB V6 HD WARM WHT SQU 2700K |
595 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 350mA | 25°C | 36.6V | 109 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-27G1000-G-83LED COB V6 HD WARM WHT SQU 2700K |
595 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 700mA | 25°C | 18.3V | 109 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-30E1000-G-83LED COB V6 HD WARM WHT SQ 3000K |
581 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1797lm (Typ) | 700mA | 25°C | 18.3V | 140 lm/W | 1.2A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-35G1000-G-83LED COB V6 HD WARM WHT SQU 3500K |
293 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1512lm (Typ) | 700mA | 25°C | 18.3V | 118 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-40E1000-G-83LED COB V6 HD NEUT WHT SQU 4000K |
275 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1850lm (Typ) | 700mA | 25°C | 18.3V | 144 lm/W | 1.2A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-30H1000-B-83LED COB V6 HD WARM WHT SQ 3000K |
120 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1321lm (Typ) | 350mA | 25°C | 36.6V | 103 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
