LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHM-9-40-80-36-XH00-F1-3LED COB CHM9 WHT SQUARE 4000K |
4,257 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-80-36-XH00-F2-2LED COB CHM9 WHT SQUARE 4000K |
3,239 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2605lm (Typ) | 720mA | 85°C | 36V | 100 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-80-36-XH00-F2-3LED COB CHM9 WHT SQUARE 4000K |
2,423 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2605lm (Typ) | 720mA | 85°C | 36V | 100 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-90-36-XH00-F1-3LED COB CHM9 WHT SQUARE 4000K |
1,398 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-90-36-XH00-F2-2LED COB CHM9 WHT SQUARE 4000K |
2,720 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2085lm (Typ) | 720mA | 85°C | 36V | 80 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-95-36-XH00-F1-3LED COB CHM9 WHT SQUARE 4000K |
4,410 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-95-36-XH00-F2-2LED COB CHM9 WHT SQUARE 4000K |
4,889 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1955lm (Typ) | 720mA | 85°C | 36V | 75 lm/W | 1.05A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-40-95-36-XH00-F2-3LED COB CHM9 WHT SQUARE 4000K |
2,215 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1955lm (Typ) | 720mA | 85°C | 36V | 75 lm/W | 1.05A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-50-80-36-XH00-F1-5LED COB CHM9 CL WH SQUARE 5000K |
3,408 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-50-80-36-XH00-F2-3LED COB CHM9 CL WH SQUARE 5000K |
1,395 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2690lm (Typ) | 720mA | 85°C | 36V | 104 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-50-80-36-XH00-F2-5LED COB CHM9 CL WH SQUARE 5000K |
3,753 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2690lm (Typ) | 720mA | 85°C | 36V | 104 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-50-90-36-XH00-F1-5LED COB CHM9 CL WH SQUARE 5000K |
1,579 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-50-90-36-XH00-F2-5LED COB CHM9 CL WH SQUARE 5000K |
3,638 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2155lm (Typ) | 720mA | 85°C | 36V | 83 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-65-80-36-XH00-F1-5LED COB CHM9 CL WH SQUARE 6500K |
4,452 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-65-80-36-XH00-F2-3LED COB CHM9 CL WH SQUARE 6500K |
2,347 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 2685lm (Typ) | 720mA | 85°C | 36V | 104 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-65-80-36-XH00-F2-5LED COB CHM9 CL WH SQUARE 6500K |
1,379 | 0.00 |
|
- |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 2685lm (Typ) | 720mA | 85°C | 36V | 104 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|

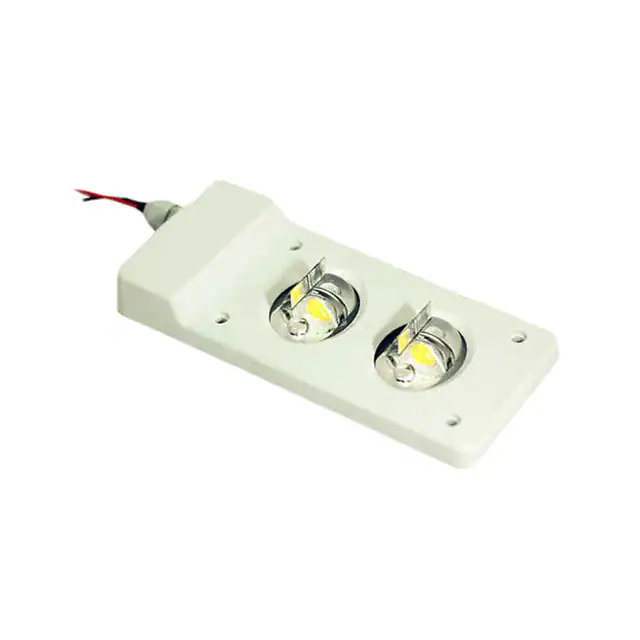

OLMA-50C000-A01A-AA000LED MOD OLM COOL WHT RECT 5000K |
2,855 | 0.00 |
|
Datasheet |
OLM™ | Tray | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 2144lm (Typ) | 350mA | 70°C | 53V | 116 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - | - |
|
|
OLMA-40E000-A01A-AA000LED MOD OLM NEUT WHT RECT 4000K |
1,139 | 0.00 |
|
Datasheet |
OLM™ | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2022lm (Typ) | 350mA | 70°C | 53V | 109 lm/W | 700mA | 80 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - | - |
|
GW KAHJB1.CM-SQSR-27B3-T02LED COB SOLERIQ WHT SQ 2700K |
4,131 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 2090lm (2100lm ~ 2590lm) | 500mA | 85°C | 48V | 87 lm/W | 700mA | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHJB1.CM-SRSS-30B3-T02LED COB SOLERIQ WHT SQ 3000K |
4,237 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2250lm (2100lm ~ 2400lm) | 500mA | 85°C | 48V | 94 lm/W | 700mA | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
