LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

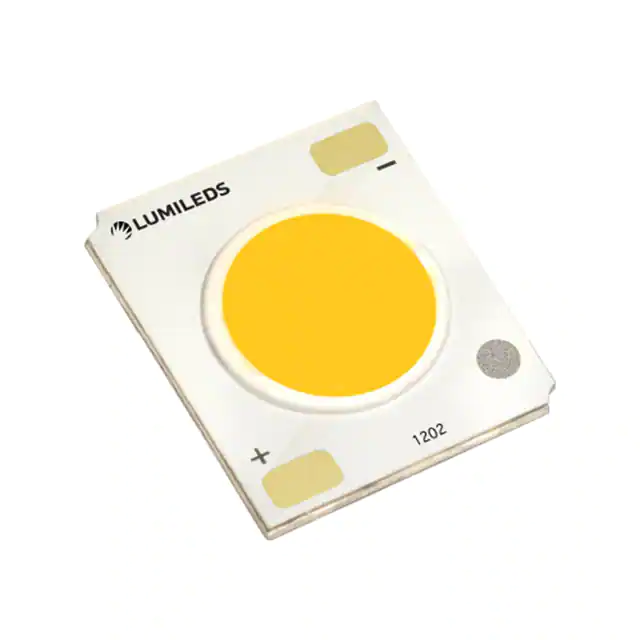

L2C3-3090109E06C00LED COB LUXEON WHT RECT 3000K |
1,920 | 0.00 |
|
Datasheet |
LUXEON CoB, CrispWhite | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 650lm (Typ) | 250mA | 85°C | 35V | 74 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
L2C2-22801216E2300LED COB LUXEON WARM WHT SQ 2200K |
4,900 | 0.00 |
|
- |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 5716lm (Typ) | 1.6A | 85°C | 35V | 102 lm/W | 3.2A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-27901216E2300LED COB LUXEON WARM WHT SQ 2700K |
1,744 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 6006lm (Typ) | 1.6A | 85°C | 35V | 107 lm/W | 3.2A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-30901216E2300LED COB LUXEON WM WHT SQ 3000K |
1,020 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6223lm (Typ) | 1.6A | 85°C | 35V | 111 lm/W | 3.2A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-35701216E2300LED COB LUXEON WARM WHT SQ 3500K |
2,870 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8032lm (Typ) | 1.6A | 85°C | 35V | 143 lm/W | 3.2A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-35801216E2300LED COB LUXEON WARM WHT SQ 3500K |
2,288 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7525lm (Typ) | 1.6A | 85°C | 35V | 134 lm/W | 3.2A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-35901216E2300LED COB LUXEON WARM WHT SQ 3500K |
1,833 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6433lm (Typ) | 1.6A | 85°C | 35V | 115 lm/W | 3.2A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|

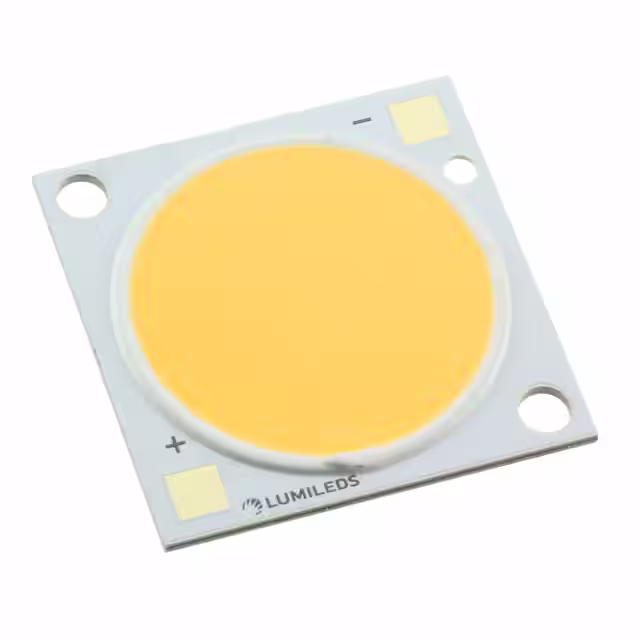

L2C2-40901216E2300LED COB LUXEON NEUT WHT SQ 4000K |
1,301 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6729lm (Typ) | 1.6A | 85°C | 35V | 120 lm/W | 3.2A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
L2C2-50701216E2300LED COB LUXEON COOL WHT SQ 5000K |
4,005 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 8538lm (Typ) | 1.6A | 85°C | 35V | 152 lm/W | 3.2A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-50801216E2300LED COB LUXEON COOL WHT SQ 5000K |
3,122 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 7815lm (Typ) | 1.6A | 85°C | 35V | 140 lm/W | 3.2A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-57701216E2300LED COB LUXEON COOL WHT SQ 5700K |
2,594 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 8177lm (Typ) | 1.6A | 85°C | 35V | 146 lm/W | 3.2A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
L2C2-57801202E0900LED COB LUXEON CL WHT RECT 5700K |
2,607 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 955lm (Typ) | 200mA | 85°C | 34.5V | 138 lm/W | 400mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
|
L2C2-57801205E1300LED COB LUXEON CL WHT RECT 5700K |
4,255 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 2808lm (Typ) | 600mA | 85°C | 35V | 134 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
L218-3580048C00000LED MOD LUXEON WH LNR STR 3500K |
4,452 | 0.00 |
|
Datasheet |
LUXEON XR-3020 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2140lm (Typ) | 400mA | 45°C | 34.8V | 154 lm/W | 600mA | 80 | - | With Connector | 558.40mm L x 20.00mm W | 3.00mm | - | Flat |
|
STIDMW830042112AAALED ENG RND-62B WHT RND 3000K |
4,495 | 0.00 |
|
- |
Round-62B | - | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 450lm (Typ) | - | - | 12V | - | - | 80 | 115° | - | 62.00mm Dia | 5.70mm | - | Flat |
|
|
STIDMW840042112AAALED ENG RND-62B WHT RND 4000K |
4,119 | 0.00 |
|
- |
Round-62B | - | Obsolete | LED Engine | White, Neutral | 4000K | - | Round | 510lm (Typ) | - | - | 12V | - | - | 80 | 115° | - | 62.00mm Dia | 5.70mm | - | Flat |
|

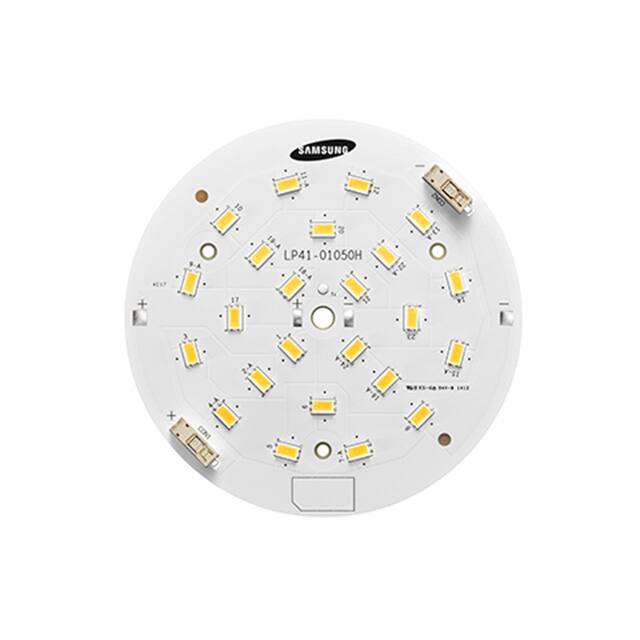

STIDMW830082112AAALED ENG RND-90B WHT RND 3000K |
2,110 | 0.00 |
|
- |
Round-90B | - | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 905lm (Typ) | - | - | 24V | - | - | 80 | 115° | - | 90.00mm Dia | 5.70mm | - | Flat |
|
|
STIDMW840082112AAALED ENG RND-90B WHT RND 4000K |
1,193 | 0.00 |
|
- |
Round-90B | - | Obsolete | LED Engine | White, Neutral | 4000K | - | Round | 1030lm (Typ) | - | - | 24V | - | - | 80 | 115° | - | 90.00mm Dia | 5.70mm | - | Flat |
|

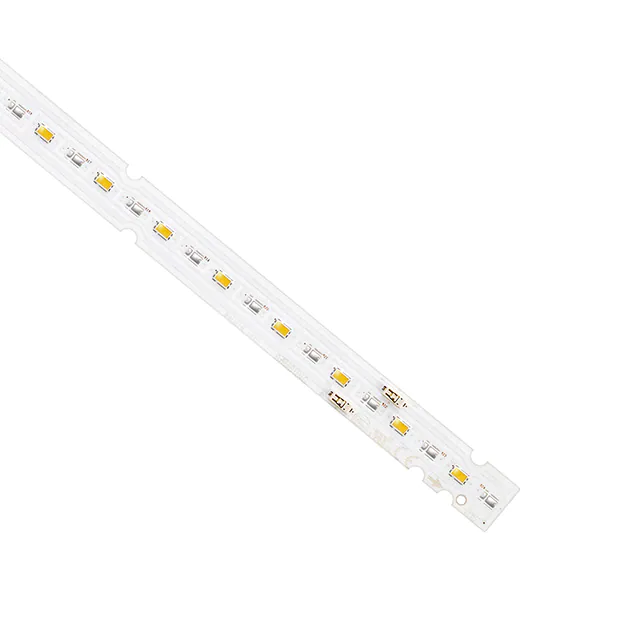

SI-B8R113560WWLED MOD LTM562A WH LNR STR 5000K |
2,635 | 0.00 |
|
Datasheet |
LT-M562A_G2 | Tray | Obsolete | LED Module | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 1650lm (Typ) | 450mA | 50°C | 24.8V | 148 lm/W | 540mA | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 4.40mm | - | Flat |
|
|
SI-B8T113560WWLED MOD LTM562A WH LNR STR 4000K |
4,597 | 0.00 |
|
Datasheet |
LT-M562A_G2 | Tray | Obsolete | LED Module | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 1650lm (Typ) | 450mA | 50°C | 24.8V | 148 lm/W | 540mA | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 4.40mm | - | Flat |
