LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW KAHJB1.CM-SSST-35B3-T02LED COB SOLERIQ WHT SQ 3500K |
3,795 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 2415lm (2240lm ~ 2590lm) | 500mA | 85°C | 48V | 101 lm/W | 700mA | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHJB1.EM-SSSU-30S3-T02LED COB SOLERIQ WHT SQ 3000K |
1,264 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2520lm (2240lm ~ 2800lm) | 500mA | 85°C | 48V | 105 lm/W | 700mA | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHJB1.EM-STTP-40S3-T02LED COB SOLERIQ WHT SQ 4000K |
1,936 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2720lm (2400lm ~ 3040lm) | 500mA | 85°C | 48V | 113 lm/W | 700mA | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB1.CM-TPTQ-27B3-T02LED COB SOLERIQ WHT SQ 2700K |
4,889 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 3050lm (2800lm ~ 3300lm) | 700mA | 85°C | 46.5V | 94 lm/W | 1A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB1.CM-TPTR-30S3-T02LED COB SOLERIQ WHT SQ 3000K |
1,635 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3195lm (2800lm ~ 3590lm) | 700mA | 85°C | 46.5V | 98 lm/W | 1A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB1.CM-TQTR-30B3-T02LED COB SOLERIQ WHT SQ 3000K |
4,510 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3315lm (3040lm ~ 3590lm) | 700mA | 85°C | 46.5V | 102 lm/W | 1A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHLB1.CM-TQTR-35B3-T02LED COB SOLERIQ WHT SQ 3500K |
4,647 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 3315lm (3040lm ~ 3590lm) | 700mA | 85°C | 46.5V | 102 lm/W | 1A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.CM-TTTU-27B3-T02LED COB SOLERIQ WHT SQ 2700K |
4,705 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 4200lm (3900lm ~ 4500lm) | 1.05A | 85°C | 44V | 91 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.CM-TTTU-30B3-T02LED COB SOLERIQ WHT SQ 3000K |
4,582 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4200lm (3900lm ~ 4500lm) | 1.05A | 85°C | 44V | 91 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.CM-TUUP-35B3-T02LED COB SOLERIQ WHT SQ 3500K |
3,797 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 4515lm (4190lm ~ 4840lm) | 1.05A | 85°C | 44V | 98 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.CM-TUUQ-40S3-T02LED COB SOLERIQ WHT SQ 4000K |
4,238 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4695lm (4190lm ~ 5200lm) | 1.05A | 85°C | 44V | 102 lm/W | 1.4A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.EM-TUUR-30S3-1050-T02LED COB SOLERIQ WHT SQ 3000K |
4,802 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4910lm (4190lm ~ 5630lm) | 1.05A | 85°C | 44V | 106 lm/W | 1.4A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
|
GW KAHNB1.EM-UPUS-40S3-1050-T02LED COB SOLERIQ WHT SQ 4000K |
2,297 | 0.00 |
|
Datasheet |
SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5300lm (4500lm ~ 6100lm) | 1.05A | 85°C | 44V | 115 lm/W | 1.4A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
SL-B8T7NK0L2WWLED MOD LT-F564A LNR STRP 4000K |
4,080 | 0.00 |
|
Datasheet |
LT-F564A | Bulk | Obsolete | LED Module | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 8850lm (Typ) | 1.5A | 25°C | 49.6V | 119 lm/W | - | 80 | - | - | 558.80mm L x 40.00mm W | 5.90mm | - | Flat |
|
|
SL-B8R7NK0L2WWLED MOD LT-F564A LNR STRP 5000K |
4,509 | 0.00 |
|
Datasheet |
LT-F564A | Bulk | Obsolete | LED Module | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 9050lm (Typ) | 1.5A | 25°C | 49.6V | 122 lm/W | - | 80 | - | - | 558.80mm L x 40.00mm W | 5.90mm | - | Flat |
|

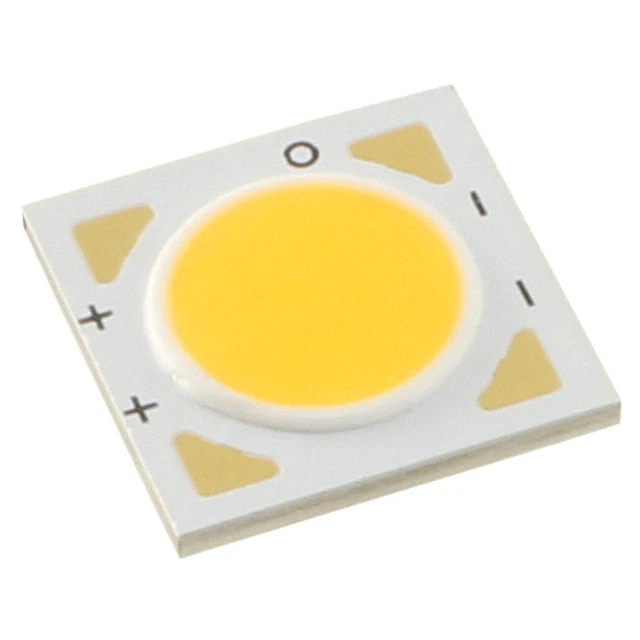

BXRE-27E6500-H-23LED COB V22 ARRAY WHT SQU 2700K |
1,303 | 0.00 |
|
- |
V22 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5492lm (Typ) | 1.4A | 85°C | 34.7V | 113 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|

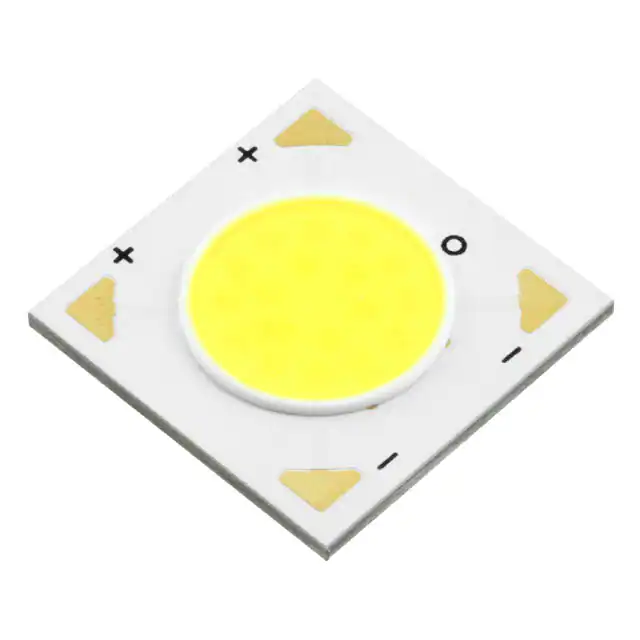

BXRE-30E6500-H-23LED COB V22 ARRAY WHT SQ 3000K |
3,991 | 0.00 |
|
- |
V22 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5830lm (Typ) | 1.4A | 85°C | 34.7V | 120 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|

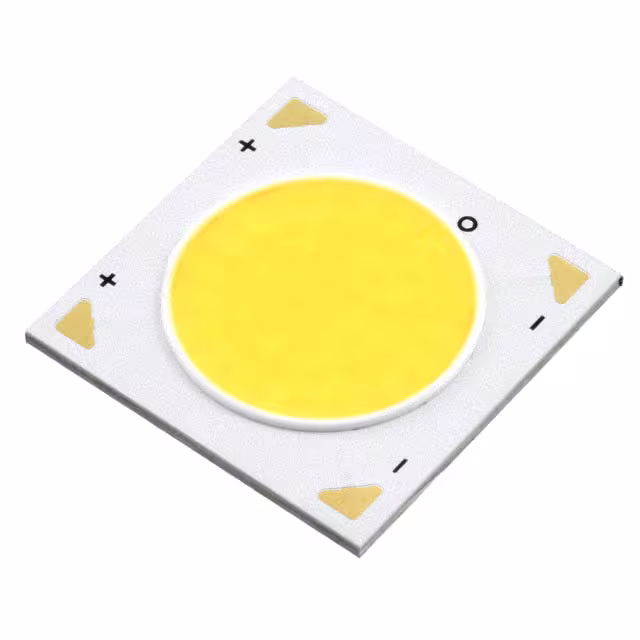

BXRE-40E6500-H-23LED COB V22 ARRAY WHT SQU 4000K |
3,045 | 0.00 |
|
- |
V22 Array | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6229lm (Typ) | 1.4A | 85°C | 34.7V | 128 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
CLU046-1212C1-303H5G3LED COB CLU046 WM WHT SQ 3000K |
2,252 | 28.49 |
|
Datasheet |
CLU046 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4363lm (Typ) | 1.08A | 85°C | 34.6V | 117 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1812C1-403H5G3LED COB NEUT WHT SQUARE 4000K |
1,126 | 31.44 |
|
Datasheet |
- | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6596lm (Typ) | 1.08A | 85°C | 52V | 117 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
