LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

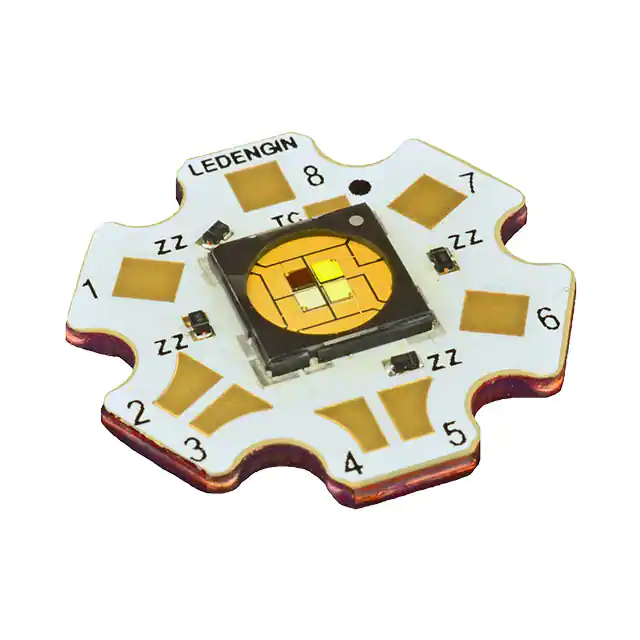

LZ4-V4MDPB-0000LED MOD LUXIGEN STARBRD 6335K |
4,965 | 0.00 |
|
Datasheet |
LuxiGen™ LZ4 | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6335K | 624nm Red, 525nm Green, 454nm Blue | Starboard | 115lm Red, 220lm Green, 1250mW Blue, 293lm White | 1A Red, 1A Green, 1A Blue, 1A White | 25°C | 2.4V Red, 3.5V Green, 3V Blue, 3V White | 48 lm/W Red, 63 lm/W Green, 98 lm/W White | 2.5A Red, 3A Green, 3A Blue, 3A White | 75 (Typ) | 110° | - | 19.90mm Dia | 2.66mm | 7.00mm L x 7.00mm W | Flat |
.jpg)
|
BXRH-30G6000-G-23LED COB H12 ARRAY WHT SQ 3000K |
3,215 | 0.00 |
|
Datasheet |
H12 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5380lm (Typ) | 1.75A | 25°C | 36.6V | 84 lm/W | 2.2A | 90 | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia | Flat |
|
|
BXRH-40E6000-G-23LED COB H12 ARRAY WHT SQU 4000K |
4,183 | 0.00 |
|
Datasheet |
H12 Array | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6789lm (Typ) | 1.75A | 25°C | 36.6V | 106 lm/W | 2.2A | 80 | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia | Flat |
.jpg)
|

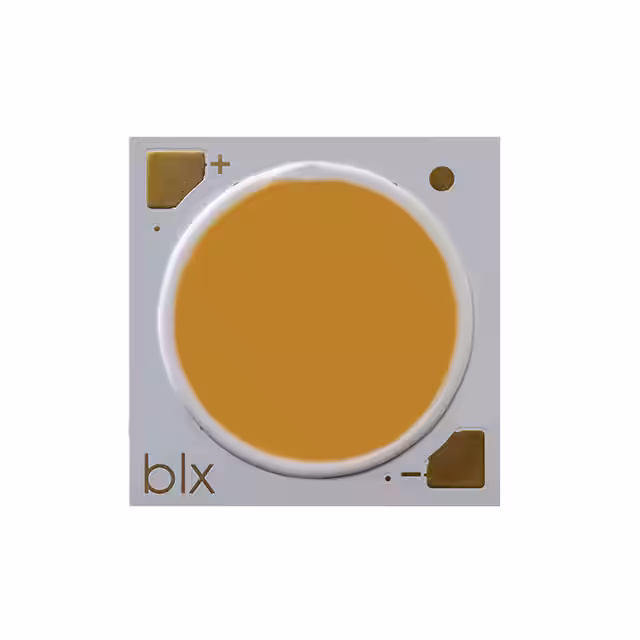

BXRH-27E8000-J-23LED COB H15 ARRAY WHT SQU 2700K |
2,271 | 0.00 |
|
Datasheet |
H15 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8693lm (Typ) | 2.5A | 25°C | 36.6V | 95 lm/W | 3.5A | 80 | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia | Flat |
|
|
BXRH-40E8000-J-23LED COB H15 ARRAY WHT SQU 4000K |
1,807 | 0.00 |
|
Datasheet |
H15 Array | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9699lm (Typ) | 2.5A | 25°C | 36.6V | 106 lm/W | 3.5A | 80 | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia | Flat |
|
SL-P7R2F37MZWWLED SMD |
1,224 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

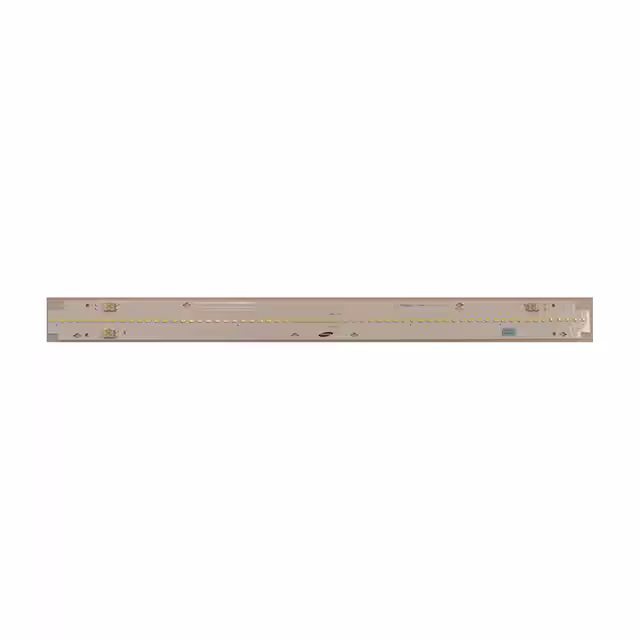

SI-B8V161560WWLED MOD LT-H564A LNR STRP 3000K |
3,697 | 0.00 |
|
- |
LT-H564A | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2140lm (Typ) | 700mA | 45°C | 23.2V | 132 lm/W | 1.2A | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
|
SI-B8U161560WWLED MOD LT-H564A LNR STRP 3500K |
1,812 | 0.00 |
|
- |
LT-H564A | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2200lm (Typ) | 700mA | 45°C | 23.2V | 135 lm/W | 1.2A | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
|
SI-B8T161560WWLED MOD LT-H564A LNR STRP 4000K |
4,972 | 0.00 |
|
- |
LT-H564A | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2280lm (Typ) | 700mA | 45°C | 23.2V | 140 lm/W | 1.2A | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
|
SI-B8R161560WWLED MOD LT-H564A LNR STRP 5000K |
2,423 | 0.00 |
|
- |
LT-H564A | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2320lm (Typ) | 700mA | 45°C | 23.2V | 143 lm/W | 1.2A | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|

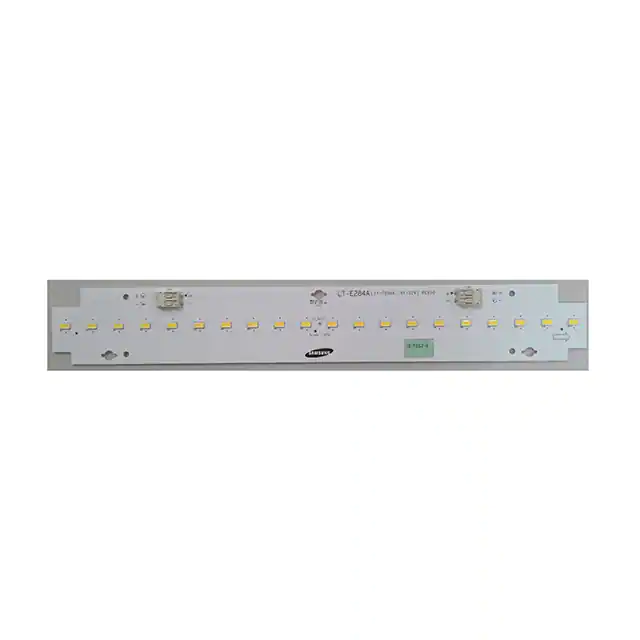

SI-B8U082280WWLED MOD LT-E284A LNR STRP 3500K |
4,198 | 0.00 |
|
- |
LT-E284A | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1040lm (Typ) | 700mA | 45°C | 12.1V | 123 lm/W | 750mA | 80 | 115° | With Connector | 280.00mm L x 40.00mm W | 5.60mm | - | Flat |
|

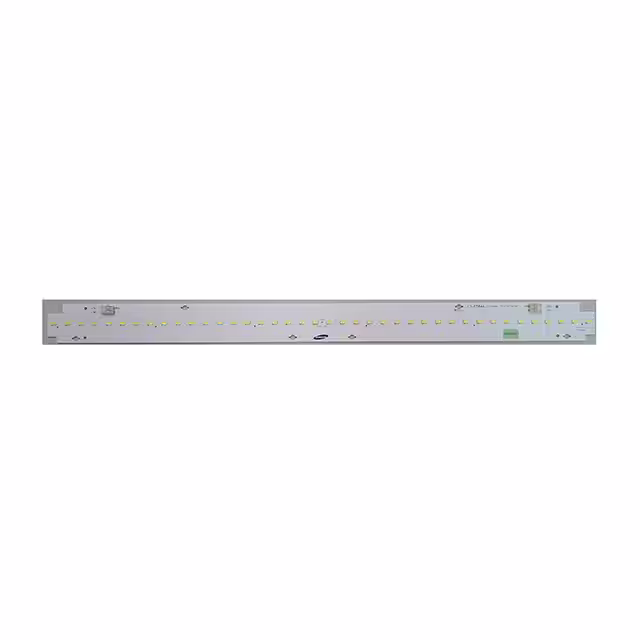

SI-B8T162560WWLED MOD LT-E564A LNR STRP 4000K |
4,723 | 0.00 |
|
- |
LT-E564A | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2160lm (Typ) | 700mA | 45°C | 24.3V | 127 lm/W | 750mA | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
SI-B8U052280WWLED MOD LTM282AG2 WARM WHT STRIP |
2,019 | 0.00 |
|
Datasheet |
LT-M282A_G2 | Tray | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Linear Light Strip | 800lm (Typ) | 450mA | 50°C | 12.4V | 143 lm/W | 540mA | 80 | 115° | With Connector | 275.00mm L x 18.00mm W | 4.40mm | - | Flat |
|
SI-B8U114280WWLED MOD LTM282BG2 WARM WHT STRIP |
2,930 | 0.00 |
|
Datasheet |
LT-M282C_G2 | Tray | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Linear Light Strip | 1605lm (Typ) | 450mA | 50°C | 24.8V | 144 lm/W | 540mA | 80 | 115° | With Connector | 275.00mm L x 18.00mm W | 4.40mm | - | Flat |
|
SL-B8U1N00L1WWLED MOD INFLUXS01 LNR STR 3500K |
3,592 | 0.00 |
|
Datasheet |
inFlux_S01 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 1335lm (Typ) | 1.15A | 65°C | 9.1V | 128 lm/W | 1.15A | 80 | 115° | With Connector | 279.60mm L x 23.70mm W | 5.90mm | - | Flat |
|
SL-B8U1N40L1WWLED MOD INFLUXS02 LNR STR 3500K |
4,173 | 0.00 |
|
Datasheet |
inFlux_S02 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2130lm (Typ) | 1.38A | 65°C | 12.1V | 128 lm/W | 1.38A | 80 | 115° | With Connector | 279.60mm L x 23.70mm W | 5.90mm | - | Flat |
|
SL-B8U2N60L1WWLED MOD INFLUXL03 LNR STR 3500K |
1,087 | 0.00 |
|
Datasheet |
inFlux_L03 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2670lm (Typ) | 1.15A | 65°C | 18.1V | 128 lm/W | 1.15A | 80 | 115° | With Connector | 559.50mm L x 23.70mm W | 5.90mm | - | Flat |
|
SL-B8U3N80L1WWLED MOD INFLUXL04 LNR STR 3500K |
3,916 | 0.00 |
|
Datasheet |
inFlux_L04 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 4260lm (Typ) | 1.38A | 65°C | 24.1V | 128 lm/W | 1.38A | 80 | 115° | With Connector | 559.50mm L x 23.70mm W | 5.90mm | - | Flat |
|
SL-B8U4N80L1WWLED MOD INFLUXS04 LNR STR 3500K |
3,320 | 0.00 |
|
Datasheet |
inFlux_S04 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 4265lm (Typ) | 1.38A | 65°C | 24.1V | 128 lm/W | 1.38A | 80 | 115° | With Connector | 279.60mm L x 39.60mm W | 5.90mm | - | Flat |
|
SL-B8U7N90L1WWLED MOD INFLUXL09 LNR STR 3500K |
3,852 | 0.00 |
|
Datasheet |
inFlux_L09 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 8530lm (Typ) | 1.38A | 65°C | 48.2V | 128 lm/W | 1.38A | 80 | 115° | With Connector | 559.50mm L x 39.60mm W | 5.90mm | - | Flat |
