LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

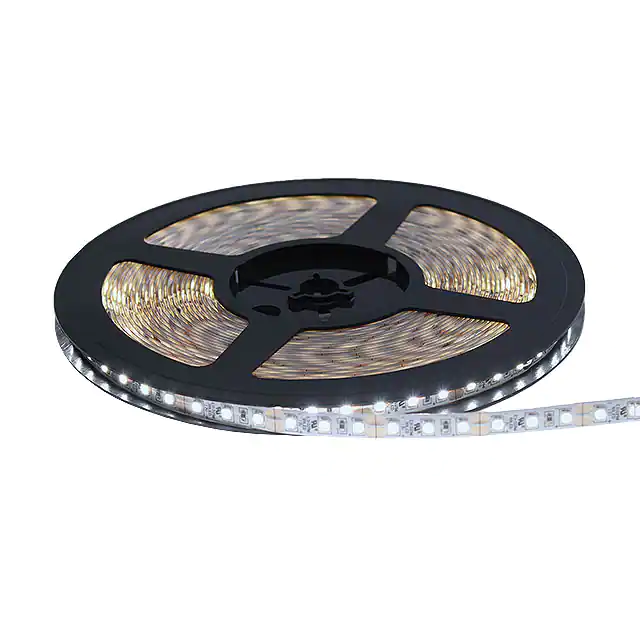

12V-UB-CW-12MLED ENG COOL WHT 6000K 12M REEL |
3,634 | 0.49 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 95lm (Typ) | - | - | 12V | - | - | 85 | 120° | - | 12000.0mm L x 8.00mm W (26.92mm L per Segment) | 1.50mm | - | Flat |
|
12V-SB-PW-12MLED ENG NEU WHT 4200K 12M REEL |
109,690 | 0.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | White, Neutral | 4200K | - | Linear Light Strip, Flexible | 95lm (Typ) | - | - | 12V | - | - | 94 | 120° | - | 12000.0mm L x 8.00mm W (46.99mm L per Segment) | 1.50mm | - | Flat |
|
12V-SB-RED-12MLED ENG RED 625NM 3LEDS 12M REEL |
2,086 | 0.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | Red | - | 625nm | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | 120° | - | 12000.0mm L x 8.00mm W (46.99mm L per Segment) | 1.50mm | - | Flat |
|

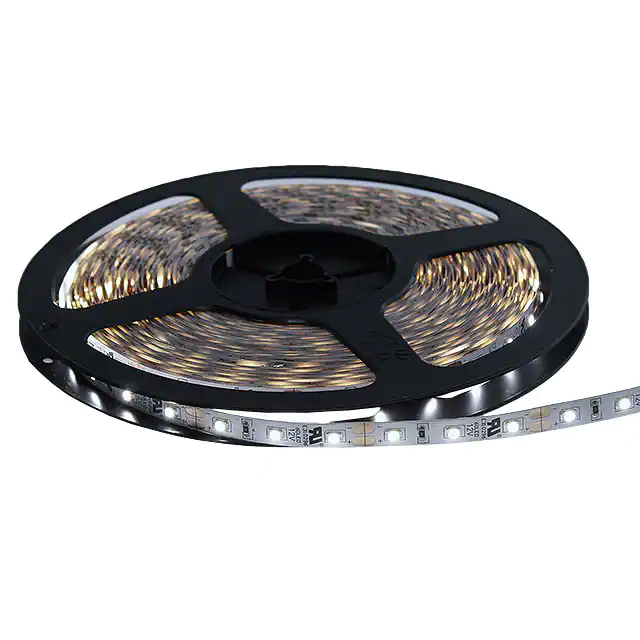

12V-SB-CW-12MLED ENG COOL WHT 6000K 12M REEL |
1,584 | 0.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 100lm (Typ) | - | - | 12V | - | - | 92 | 120° | - | 12000.0mm L x 8.00mm W (46.99mm L per Segment) | 1.50mm | - | Flat |
|

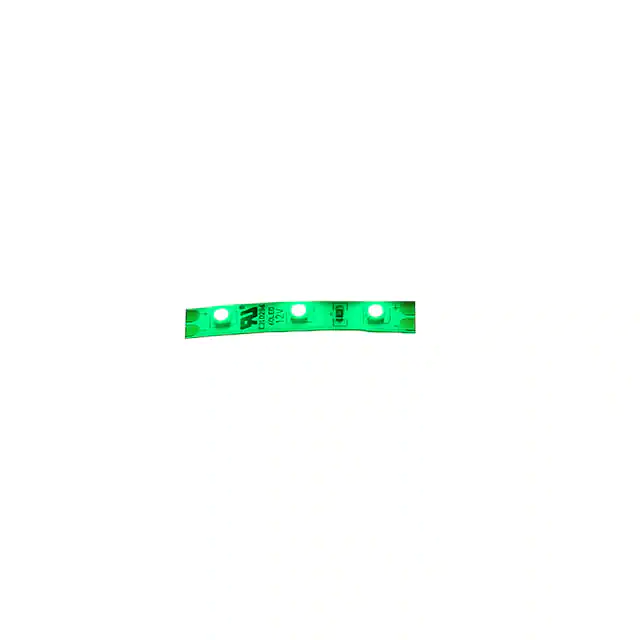

12V-SB-GRN-12MLED ENG GRN 565NM 3LEDS 12M REEL |
1,418 | 0.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | Green | - | 565nm | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | 120° | - | 12000.0mm L x 8.00mm W (46.99mm L per Segment) | 1.50mm | - | Flat |
|
12V-COB-4000K-12MLED COB WH LNR STRP 4000K |
2,238 | 0.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 2lm (Typ) | - | - | 12V | - | - | 93 | - | Dimming | 12000.00mm L x 8.13mm W (35.56mm L per Segment) | 1.78mm | - | Flat |
|
AB-FA01230-19700-8A1LED MOD AB-FA WH LNR STRP 3000K |
2,309 | 0.60 |
|
Datasheet |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (25.00mm L per Segment) | 1.60mm | - | Flat |
.jpg)
|

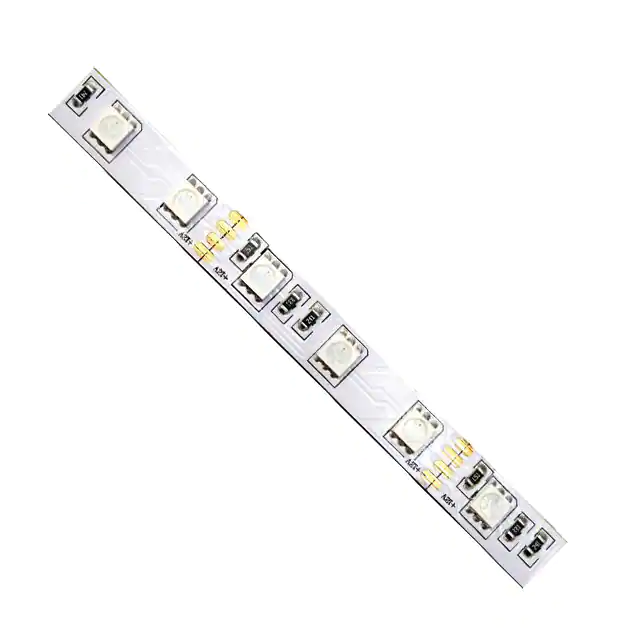

12V-SB-RGB-5MLED ENG RGB LINEAR STRIP 5M REEL |
2,564 | 1.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LED Engine | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | - | - | 12000.0mm L x 10.00mm W (114.30mm L per Segment) | 2.29mm | - | Flat |
|
AB-FA01250-19700-8A1LED MOD AB-FA WH LNR STRP 5000K |
1,319 | 0.60 |
|
Datasheet |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (25.00mm L per Segment) | 1.60mm | - | Flat |
|
|
24V-COB-4000K-12MLED COB WH LNR STRP 4000K |
1,865 | 0.40 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 2lm (Typ) | - | - | 24V | - | - | 91 | - | Dimming | 12000.0mm L x 8.00mm W (50.04mm L per Segment) | 1.78mm | - | Flat |
|

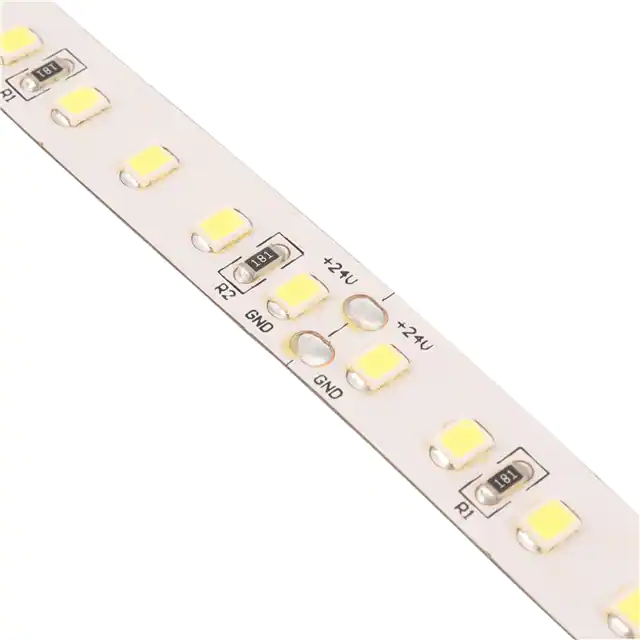

AB-FA02465-19700-8A1LED MOD AB-FA WH LNR STRP 6500K |
1,967 | 1.08 |
|
Datasheet |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 760lm | 330mA | 25°C | 24V | 96 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 1.60mm | - | Flat |
|
CXA1304-0000-000C00B20E5LED COB XLAMP NEUT WHT SQ 4000K |
155 | 1.04 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00C250FLED COB XLAMP COOL WHT SQU 5000K |
447 | 1.20 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
BXRV-DR-1830G-1000-A-13LED COB VESTA WM WHT RECT 2400K |
136 | 1.51 |
|
Datasheet |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 684lm (Typ) | 350mA | 25°C | 17V | 115 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
|
|
SPHWHAHDNA27WJW3DBLED COB D GEN2 WARM WHT SQ 2700K |
620 | 1.37 |
|
Datasheet |
COB D Gen2 Plus | Box | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 468lm (Typ) | 180mA | 85°C | 17V | 153 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
BXRE-30E0800-D-73LED COB V8 WARM WHT SQU 3000K |
602 | 1.81 |
|
Datasheet |
Gen 7 V8 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 817lm (Typ) | 350mA | 85°C | 16.7V | 140 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRE-27E0800-D-73LED COB V8 WARM WHT SQUARE 2700K |
437 | 1.81 |
|
Datasheet |
Gen 7 V8 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 785lm (Typ) | 350mA | 85°C | 16.7V | 134 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
CHA0304-0000-000G0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
530 | 0.00 |
|
Datasheet |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 449lm (Typ) | 175mA | 85°C | 21V | - | 300mA | 80 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
BXRV-DR-1827G-1000-B-13LED COB VESTA WM WHT RECT 2250K |
631 | 2.44 |
|
Datasheet |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse | - | Rectangle | 1242lm (Typ) | 350mA | 25°C | 33.8V | 105 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
|
CXA1512-0000-000F00M40E3LED COB XLAMP COOL WHT SQ 5000K |
103 | 2.10 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 18V | 122 lm/W | 1.2A | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
