LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHM-9-27-90-18-AC10-F3-3LED COB CHM9 WM WH SQUARE 2700K |
1,708 | 4.82 |
|
Datasheet |
CHM-9 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 360mA | 85°C | 18V | - | 545mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.00mm Dia | Flat |
|

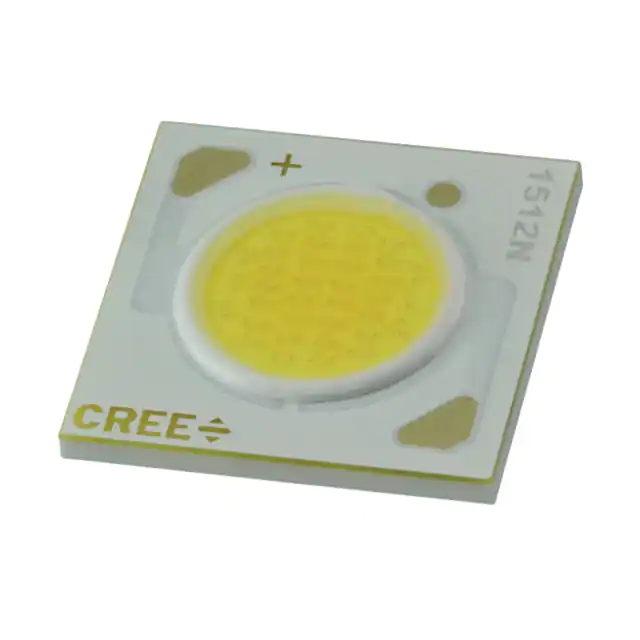

CXA1512-0000-000N00M230GLED COB XLAMP WARM WHT SQ 3000K |
315 | 2.94 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 36V | 114 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
BXRE-27S1001-C-73LED COB V10 THRIVE WHT SQ 2700K |
594 | 3.65 |
|
Datasheet |
Gen 7 V10 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 1204lm (Typ) | 360mA | 85°C | 33.7V | 99 lm/W | 720mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
BXRE-30E2000-B-73LED COB V13 WM WH SQUARE 3000K |
457 | 3.95 |
|
Datasheet |
Gen 7 V13 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2178lm (Typ) | 450mA | 85°C | 33.9V | 143 lm/W | 900mA | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia | Flat |
|

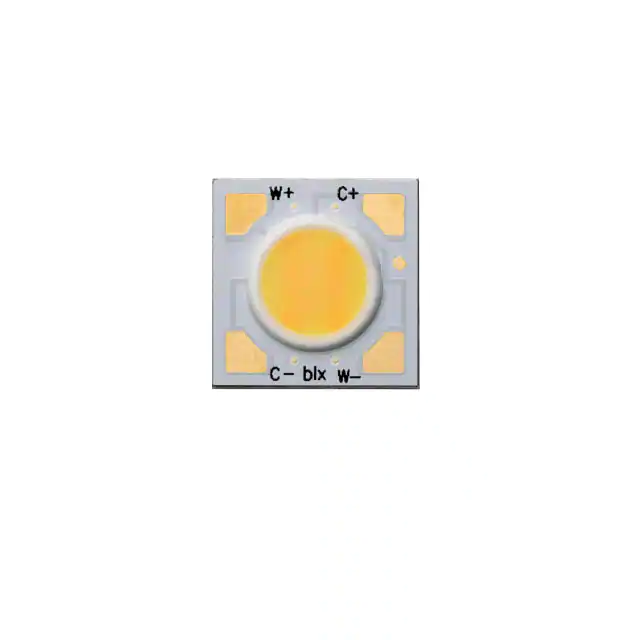

BXRV-TR-2765G-06A0-B-23LED COB VESTA WHITE SQU 6500K |
220 | 3.52 |
|
Datasheet |
Vesta™ | Bulk | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | - | 250mA | 25°C | - | - | 480mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia | Flat |
|

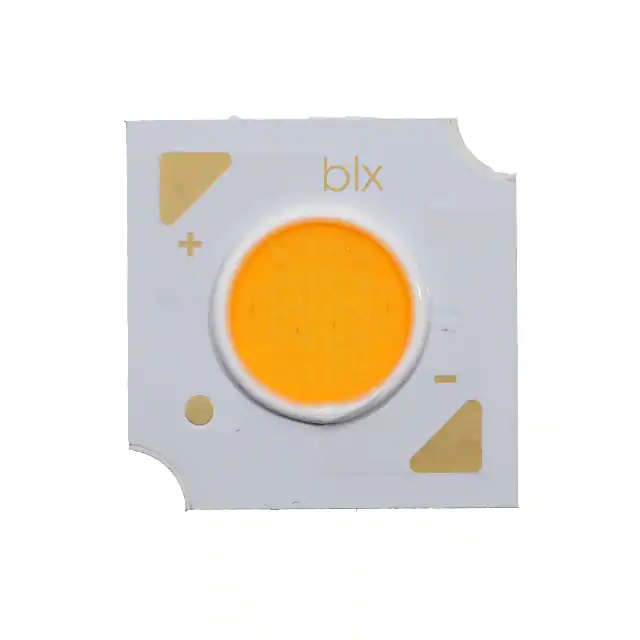

BXRH-27S1001-G-73LED COB V6HD THRIVE WHT SQ 2700K |
620 | 3.55 |
|
Datasheet |
V6 HD Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1147lm (Typ) | 700mA | 25°C | 18.2V | 96 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|

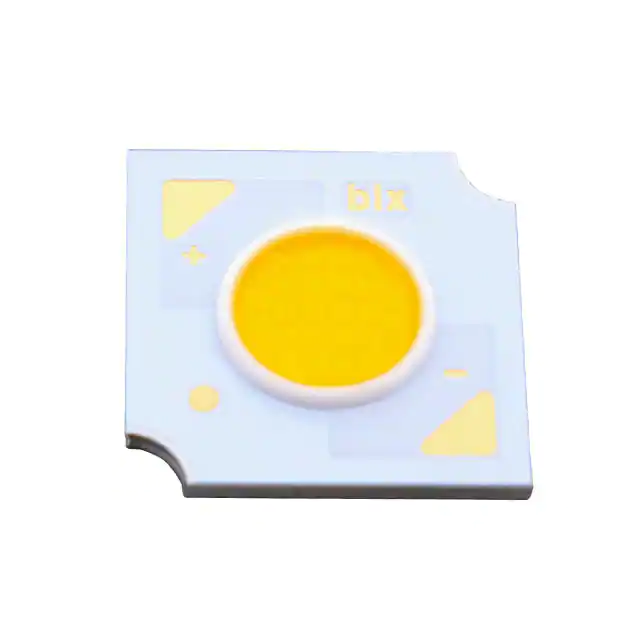

BXRH-65S1001-G-74LED COB V6HD THRIVE WHT SQ 6500K |
605 | 3.55 |
|
Datasheet |
V6 HD Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1414lm (Typ) | 700mA | 25°C | 18.2V | 111 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-30S1001-G-73LED COB V6HD THRIVE WH SQ 3000K |
459 | 3.55 |
|
Datasheet |
V6 HD Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1223lm (Typ) | 700mA | 25°C | 18.2V | 96 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-57S1001-G-74LED COB V6HD THRIVE WHT SQ 5700K |
228 | 3.55 |
|
Datasheet |
V6 HD Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 700mA | 25°C | 18.2V | 110 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-50S1001-G-74LED COB V6HD THRIVE WHT SQ 5000K |
200 | 3.55 |
|
Datasheet |
V6 HD Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 700mA | 25°C | 18.2V | 110 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-40S1001-G-73LED COB V6HD THRIVE WHT SQ 4000K |
177 | 3.55 |
|
Datasheet |
V6 HD Thrive™ Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1338lm (Typ) | 700mA | 25°C | 18.2V | 105 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|

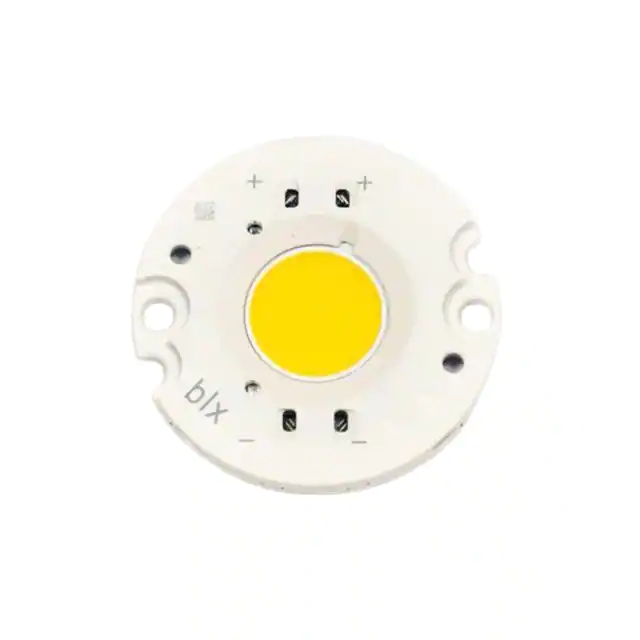

BXRC-30E2000-B-73-SELED COB VERO WHT RND 3000K |
200 | 4.37 |
|
Datasheet |
Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2134lm (Typ) | 450mA | 85°C | 34.1V | 139 lm/W | 900mA | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia | Flat |
|
CXB1512-0000-000N0HM427GLED COB XLAMP WARM WHT SQU 2700K |
114 | 3.42 |
|
Datasheet |
XLamp® CXB1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 36V | 122 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1512-0000-000F0UK227GLED COB XLAMP WARM WHT SQU 2700K |
109 | 3.42 |
|
Datasheet |
XLamp® CXB1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
S4SM-0661509736-0A600H3S-00001LED COB SUNLIKE COOL WH SQ 5000K |
2,344 | 5.62 |
|
- |
SunLike | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 585lm (Typ) | 170mA | 85°C | 36.1V | 95 lm/W | 260mA | 97 (Typ) | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 6.00mm Dia | Flat |
|

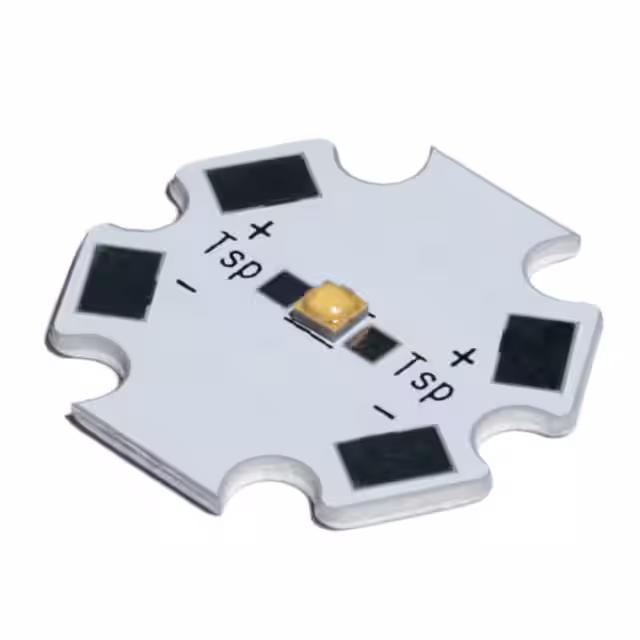

LST1-01H06-3080-01LED MOD LUXEON C STARBRD 3000K |
857 | 3.50 |
|
Datasheet |
LUXEON C | Tray | Active | LED Module | White, Warm | 3000K | - | Starboard | - | 350mA | 85°C | 2.75V | 102 lm/W | 1.23A | - | 150° | - | 19.89mm Dia | 3.05mm | - | Domed |
|
LST1-01H06-RED1-01LED MOD LUXEON C RED STARBOARD |
376 | 3.50 |
|
Datasheet |
LUXEON C | Tray | Active | LED Module | Red | - | - | Starboard | - | 350mA | 85°C | 2V | 49 lm/W | 1.05A | - | 162° | - | 19.89mm Dia | 3.05mm | - | Domed |
|
LST1-01H06-BLU1-01LED MOD LUXEON C BLUE STARBRD |
253 | 3.50 |
|
Datasheet |
LUXEON C | Tray | Active | LED Module | Blue | - | - | Starboard | - | 350mA | 85°C | 2.84V | 43 lm/W | 1.05A | - | 170° | - | 19.89mm Dia | 3.05mm | - | Domed |
|
LST1-01H06-GRN1-01LED MOD LUXEON C GREEN STARBRD |
226 | 3.50 |
|
Datasheet |
LUXEON C | Tray | Active | LED Module | Green | - | - | Starboard | - | 350mA | 85°C | 3.05V | 141 lm/W | 1.05A | - | 170° | - | 19.89mm Dia | 3.05mm | - | Domed |
|
BXRV-DR-1830G-2000-A-13LED COB VESTA WM WHT RECT 2400K |
302 | 4.23 |
|
Datasheet |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 2312lm (Typ) | 600mA | 25°C | 33.5V | 115 lm/W | 720mA | 90 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 14.00mm Dia | Flat |
