LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30E1000-D-73-SELED COB VERO WHT RND 3000K |
111 | 2.79 |
|
Datasheet |
Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1229lm (Typ) | 350mA | 85°C | 25.3V | 139 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
|

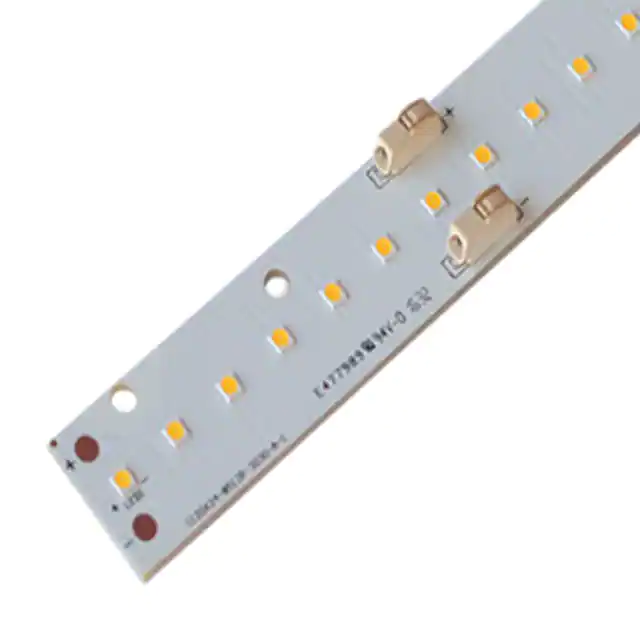

BXEB-L0280Z-35E1000-C-B3LED MOD EB SER WH LNR STRP 3500K |
1,329 | 2.80 |
|
Datasheet |
EB Series™ Gen 2 | Bulk | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1195lm (Typ) | 350mA | 25°C | 19.5V | 175 lm/W | 700mA | 80 | 120° | - | 280.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
|
BXEB-L0280Z-50E1000-C-B3LED MOD EB SER WH LNR STRP 5000K |
230 | 2.80 |
|
Datasheet |
EB Series™ Gen 2 | Bulk | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1230lm (Typ) | 350mA | 25°C | 19.5V | 180 lm/W | 700mA | 80 | 120° | - | 280.00mm L x 24.00mm W | 6.10mm | - | Flat |
|

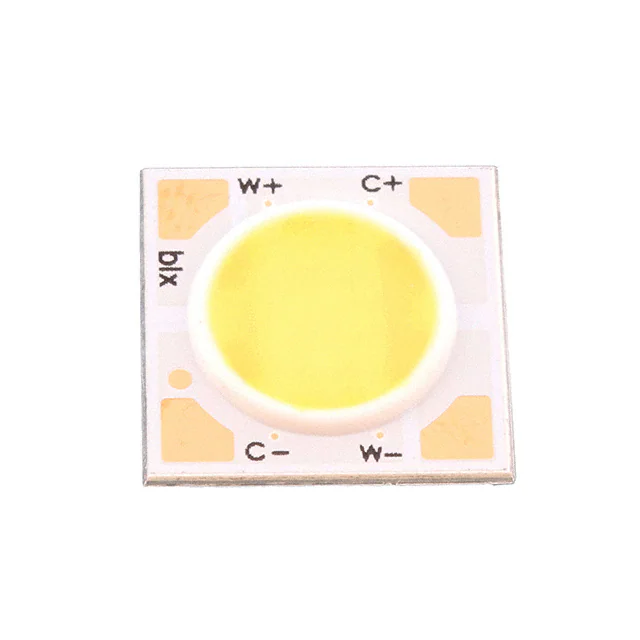

BXRV-TR-2750G-10A0-A-23LED COB VESTA WHITE SQUARE 3850K |
191 | 2.80 |
|
Datasheet |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 500mA | 25°C | 18V | 126 lm/W | 700mA | 92 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia | Flat |
|
CHA0410-0000-000D0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
395 | 0.00 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 796lm | 525mA | 85°C | 12V | 126 lm/W | 900mA | 80 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 4.20mm Dia | Flat |
|
|
BXRH-27H1000-G-83LED COB V6 HD WARM WHT SQU 2700K |
448 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1237lm (Typ) | 700mA | 25°C | 18.3V | 97 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-30G1000-G-83LED COB V6 HD WARM WHT SQ 3000K |
595 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1459lm (Typ) | 700mA | 25°C | 18.3V | 114 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|

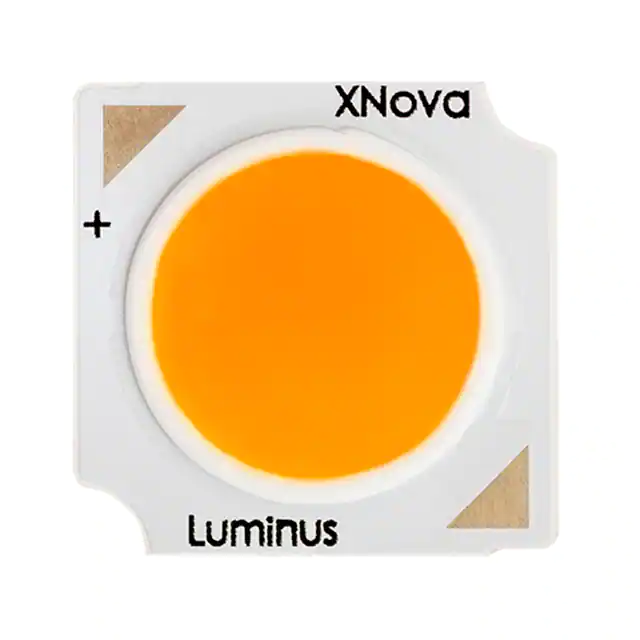

CXM-9-27-90-36-AC30-F4-3LED COB CXM-9 GEN3 WHT SQ 2700K |
1,168 | 4.61 |
|
Datasheet |
CXM-9 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1390lm (Typ) | 360mA | 85°C | 34V | 114 lm/W | 720mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia | Flat |
|

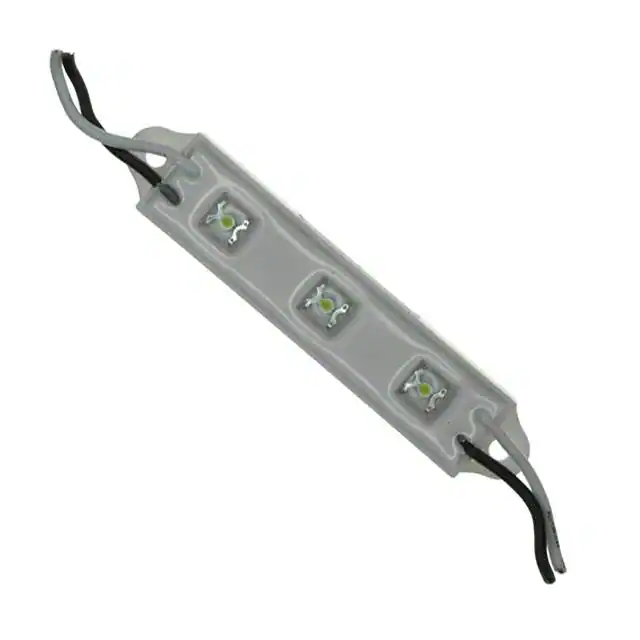

OVM12F3W7LED ENG CL WHT LNR STRIP 6000K |
4,481 | 3.07 |
|
Datasheet |
- | Tray | Active | LED Engine | White, Cool | 5000K ~ 6000K | - | Linear Light Strip, Plug and Play | - | 25mA | - | - | - | 25mA | - | 120° | - | 73.30mm L x 17.80mm W | 11.50mm | - | Flat |
|

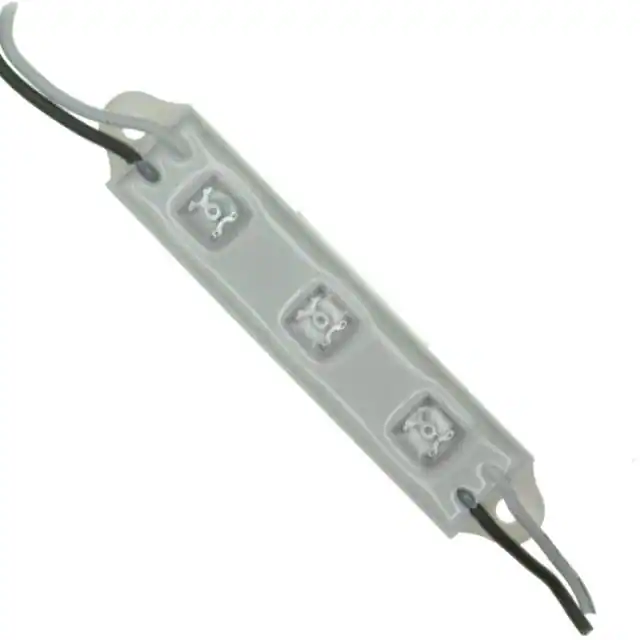

OVM12F3B7LED ENG BLUE LINEAR STRIP 3POS |
4,325 | 3.07 |
|
Datasheet |
- | Tray | Active | LED Engine | Blue | - | 470nm | Linear Light Strip, Plug and Play | - | 25mA | - | - | - | 25mA | - | 120° | - | 73.30mm L x 17.80mm W | 11.50mm | - | Flat |
|
BXRC-30E1000-B-73LED COB VERO WHT STARBRD 3000K |
777 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1452lm (Typ) | 270mA | 25°C | 34.8V | 155 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27G1000-B-73LED COB VERO WM WH STARBRD 2700K |
510 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1161lm (Typ) | 270mA | 25°C | 34.8V | 124 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-50C1001-D-74LED COB VERO WHT STARBOARD 5000K |
427 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 1603lm (Typ) | 350mA | 25°C | 26V | 176 lm/W | 700mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40E1000-D-73LED COB VERO WHT STARBOARD 4000K |
413 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1462lm (Typ) | 350mA | 25°C | 26V | 161 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40G1000-D-73LED COB VERO WHT STARBOARD 4000K |
408 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1256lm (Typ) | 350mA | 25°C | 26V | 138 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35E1000-D-73LED COB VERO WM WH STARBRD 3500K |
296 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1453lm (Typ) | 350mA | 25°C | 26V | 160 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27E1000-B-73LED COB VERO WM WH STARBRD 2700K |
170 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1394lm (Typ) | 270mA | 25°C | 34.8V | 148 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27E1000-D-73LED COB VERO WM WH STARBRD 2700K |
102 | 3.36 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1350lm (Typ) | 350mA | 25°C | 26V | 148 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRV-DR-1830G-0600-A-13LED COB VESTA WM WHT RECT 1800K |
556 | 3.38 |
|
Datasheet |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Rectangle | 684lm | 350mA | 25°C | 17V | 115 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
|

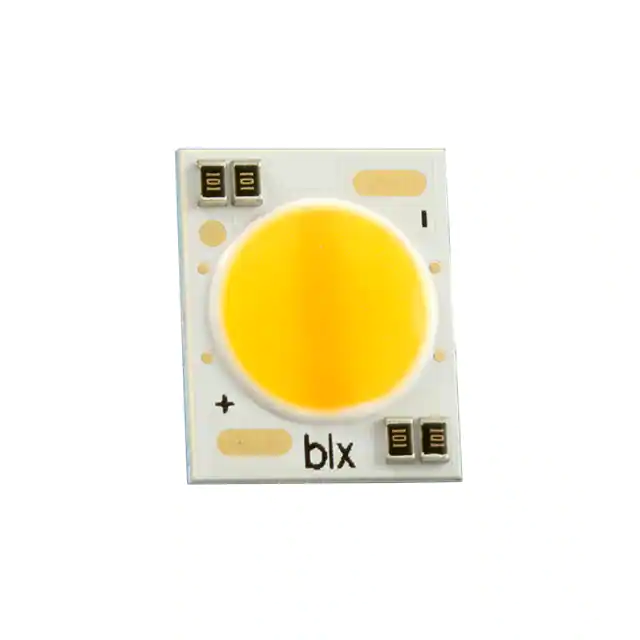

BXRV-DR-1827G-0600-A-13LED COB VESTA WM WHT RECT 1800K |
122 | 3.38 |
|
Datasheet |
Vesta™ | Bulk | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 2700K 3-Step MacAdam Ellipse | - | Rectangle | 613lm | 350mA | 25°C | 17V | 103 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia | Flat |
