LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNM251ZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
130 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 14199lm (Typ) | 1.62A | 85°C | 50.5V | 174 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
BXRE-57E6501-C-83LED COB V22 CL WHT SQUARE 5700K |
150 | 21.60 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 11076lm (Typ) | 1.2A | 25°C | 50.7V | 182 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
CMB2550-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
148 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5665lm | 1.4A | 85°C | 34V | 119 lm/W | 3.6A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|

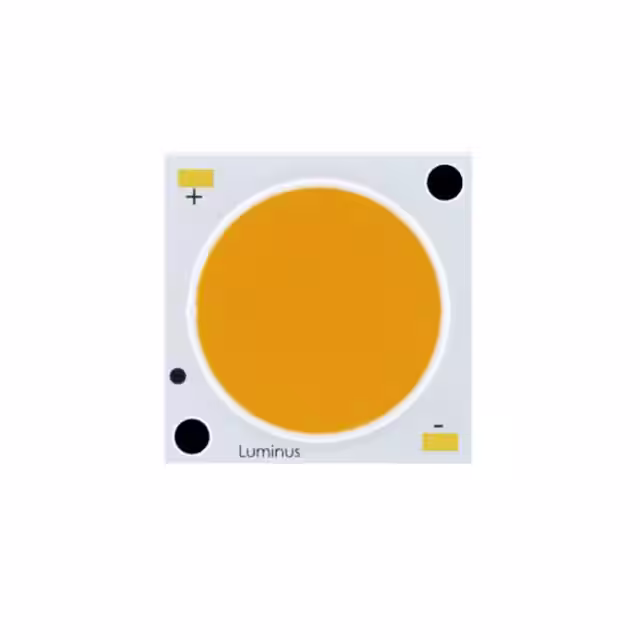

CXM-22-HM-61-54-AC30-P1-3LED COB SENSUS HORT WHT SQUARE |
443 | 36.69 |
|
Datasheet |
Sensus™ Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 1.1A | 85°C | 51.5V | - | 2.2A | - | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
160 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 14336lm (Typ) | 1.62A | 85°C | 50.5V | 175 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
160 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 12998lm (Typ) | 1.62A | 85°C | 50.5V | 159 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZV3D4LED COB D GEN4 WM WHT SQ 3000K |
157 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 13727lm (Typ) | 1.62A | 85°C | 50.5V | 168 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM271ZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
148 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 10823lm (Typ) | 1.62A | 85°C | 50.5V | 132 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SMJD-2423072G-XXN100C00G039ALLSUNLIKE CRI95 LINEAR MODULE 72LE |
299 | 21.97 |
|
Datasheet |
- | Box | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2000lm (Typ) | 900mA | 25°C | 26V | 90 lm/W | 1.35A | 95 | - | - | 560.00mm L x 18.00mm W | 6.40mm | - | Flat |
|

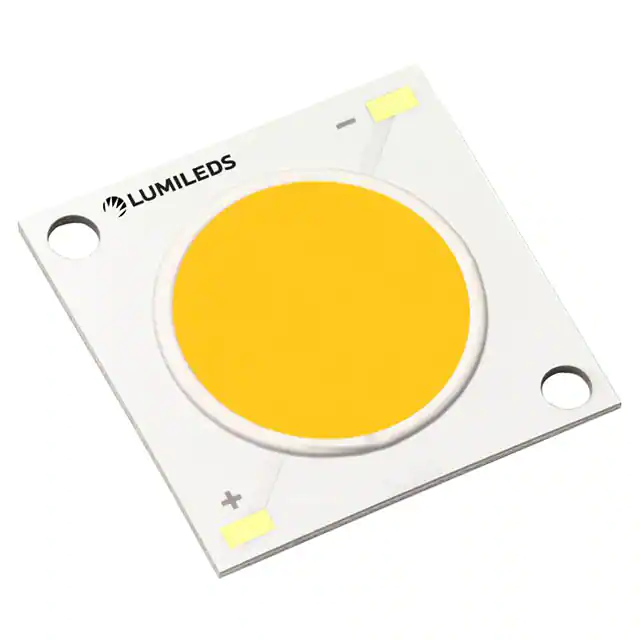

L2C5-27801211E1900LED COB LUXEON WARM WHT SQ 2700K |
560 | 35.09 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5758lm (Typ) | 1.2A | 85°C | 34.8V | 138 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
CXM-32-30-80-54-AC40-F5-3LED COB CXM-32 GEN4 WH SQ 3000K |
300 | 39.01 |
|
Datasheet |
CXM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Neutral | 3000K 3-Step MacAdam Ellipse | - | Square | 19400lm (Typ) | 2.4A | 85°C | 50.8V | 159 lm/W | 5A | 80 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 32.80mm Dia | Flat |
|
CXM-32-40-70-54-AC00-F2-3LED COB CXM-32 NEUT WHT SQ 4000K |
297 | 36.57 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 18920lm (Typ) | 2.64A | 85°C | 52.5V | 137 lm/W | 3.96A | 70 | 120° | - | 38.00mm L x 38.00mm W | - | - | Flat |
|
|
CXM-32-50-70-54-AC00-F2-5LED COB CXM-32 COOL WHT SQ 5000K |
130 | 36.57 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 19385lm (Typ) | 2.64A | 85°C | 52.5V | 140 lm/W | 3.96A | 70 | 120° | - | 38.00mm L x 38.00mm W | - | - | Flat |
|
|
CMB3090-0000-000Q0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
125 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 11675lm | 1.8A | 85°C | 45.4V | 143 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000R0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
123 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12386lm | 1.2A | 85°C | 68.1V | 152 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000R0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
123 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 11675lm | 1.2A | 85°C | 68.1V | 143 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000Q0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
123 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12180lm | 1.8A | 85°C | 45.4V | 149 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000R0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
121 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12180lm | 1.2A | 85°C | 68.1V | 149 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000Q0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
119 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12386lm | 1.8A | 85°C | 45.4V | 152 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000R0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
112 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12488lm | 1.2A | 85°C | 68.1V | 153 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
