LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNL251ZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9664lm (Typ) | 1.08A | 85°C | 50.5V | 177 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
104 | 15.84 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 13735lm (Typ) | 1.62A | 85°C | 50.6V | 168 lm/W | 3.24A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

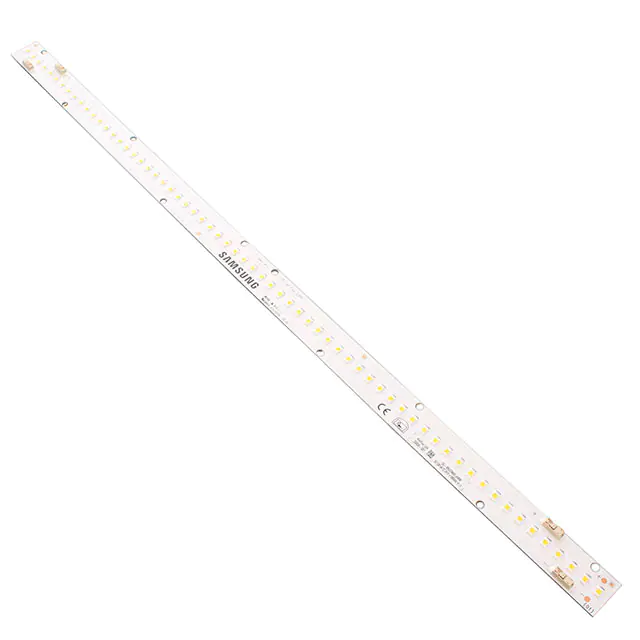

SL-B8U2N80LAWWLED MOD H INFLUX LNR STRP 3500K |
102 | 15.60 |
|
Datasheet |
H inFlux | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 4060lm (Typ) | 1A | 55°C | 22.3V | 182 lm/W | 1.6A | 80 | 118° | - | 560.00mm L x 24.00mm W | 5.20mm | - | Flat |
|
|
CMB2550-0000-000N0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
150 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7053lm | 1.4A | 85°C | 34V | 148 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMB2550-0000-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
149 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7487lm | 1.4A | 85°C | 34V | 157 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMB2550-0000-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
147 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7355lm | 1.4A | 85°C | 34V | 155 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMB2550-0000-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
145 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 7543lm | 1.4A | 85°C | 34V | 158 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
BXRE-65E6501-C-83LED COB V22 CL WHT SQUARE 6500K |
213 | 21.60 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 11206lm (Typ) | 1.2A | 25°C | 50.7V | 184 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
BXRV-TR-2750G-1KA0-A-23LED COB VESTA WHITE SQUARE 3850K |
198 | 15.34 |
|
Datasheet |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 6878lm (Typ) | 1.05A | 25°C | 52.4V | 125 lm/W | 1.8A | 92 | 130° | - | 32.05mm L x 32.05mm W | 1.65mm | 29.60mm Dia | Flat |
|
COB-WD-10-1512-30K-18K-90LED COB WARM WHT RECT 3000K |
110 | 10.83 |
|
- |
- | Tray | Active | Chip On Board (COB) | White, Warm | 1800K ~ 3000K | - | Rectangle | 1220lm | 350mA | 105°C | 36V | 98 lm/W | 385mA | 90 | - | - | 15.00mm L x 12.00mm W | 1.50mm | 10.00mm Dia | Flat |
|
|
SMJD-4253182B-XXN1 00J70C038ALLLED MOD IND COOL WHT RECT 5000K |
157 | 22.73 |
|
Datasheet |
Industrial | Tray | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 9700lm (Typ) | 1.3A | 25°C | 41.5V | 180 lm/W | 1.82A | 80 | - | - | 1120.00mm L x 20.00mm W | 5.50mm | - | Flat |
|
|
CMB2550-0000-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
132 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6393lm | 1.4A | 85°C | 34V | 134 lm/W | 3.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
BXRC-65C4001-C-83LED COB VERO 18C WHT ROUND 6500K |
134 | 17.64 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 6739lm (Typ) | 1.05A | 25°C | 33.9V | 189 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
|
SPHWHAHDNM271ZU3D4LED COB D GEN4 WARM WHT SQ 3500K |
158 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12000lm (Typ) | 1.62A | 85°C | 50.5V | 147 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZU3D4LED COB D GEN4 WARM WHT SQ 3500K |
160 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 13926lm (Typ) | 1.62A | 85°C | 50.5V | 170 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM271ZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
160 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 12493lm (Typ) | 1.62A | 85°C | 50.5V | 153 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
E1300.jpg)
|
L2C5-40701204E1300LED COB LUXEON WHT RECT 4000K |
199 | 17.93 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 2509lm (Typ) | 450mA | 85°C | 34.8V | 160 lm/W | 900mA | 70 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
SI-B8R521B20WWLED MOD F-SER GEN3 LNR 5000K |
635 | 23.19 |
|
Datasheet |
F-Series Gen3 | Bulk | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 9300lm (Typ) | 1.12A | 65°C | 46V | 181 lm/W | - | 80 | - | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
CTM-22-4018-90-36-TW01LED MOD CTM WHITE SQUARE 4000K |
177 | 18.14 |
|
Datasheet |
CTM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Neutral | 1800K ~ 4000K | - | Square | 1875lm Warm White, 3100lm Cool White | 875mA | 85°C | 37V | 58 lm/W Warm White, 96 lm/W Cool White | 1.1A | 90 | 130° | - | 28.00mm L x 28.00mm W | 1.58mm | 22.00mm Dia | Flat |
|
|
BXRC-40C4001-C-83LED COB VERO 18C WHT ROUND 4000K |
200 | 17.64 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 6889lm (Typ) | 1.05A | 25°C | 33.9V | 194 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
