Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLV74HC08ADTR2GIC GATE AND 4CH 2-INP 14TSSOP |
2,684 | 0.09 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LVC1G11GF,132IC GATE AND 1CH 3-INP 6XSON |
50,988 | 0.00 |
|
Datasheet |
74LVC | 6-XFDFN | Bulk | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1x1) |
|
NLU2G04BMX1TCGIC INVERTER 2CH 2-INP 6ULLGA |
48,000 | 0.09 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
NLU2G06BMX1TCGIC INVERTER 2CH 2-INP 6ULLGA |
45,000 | 0.09 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Inverter | 2 | 2 | Open Drain | 1.65V ~ 5.5V | 1 µA | -, 8mA | - | - | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
NLU1GU04CMX1TCGIC INVERTER 1CH 1-INP 6ULLGA |
4,610 | 0.09 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NLX2GU04BMX1TCGIC INVERTER 2CH 2-INP 6ULLGA |
42,000 | 0.09 |
|
Datasheet |
- | 6-XFLGA | Bulk | Obsolete | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 16mA, 16mA | - | - | 5.6ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
MC74ACT08DTR2IC GATE AND 4CH 2-INP 14TSSOP |
2,001 | 0.09 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74VHCT00ANIC GATE NAND 4CH 2-INP 14DIP |
37,000 | 0.00 |
|
Datasheet |
74VHCT | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
MC74ACT05DR2IC INVERTER OD 6CH 1IN 14SOIC |
36,794 | 0.09 |
|
Datasheet |
74ACT | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Inverter | 6 | 1 | Open Drain | 4.5V ~ 5.5V | 4 µA | -, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74VHC02NIC GATE NOR 4CH 2-INP 14DIP |
36,500 | 0.00 |
|
Datasheet |
74VHC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|

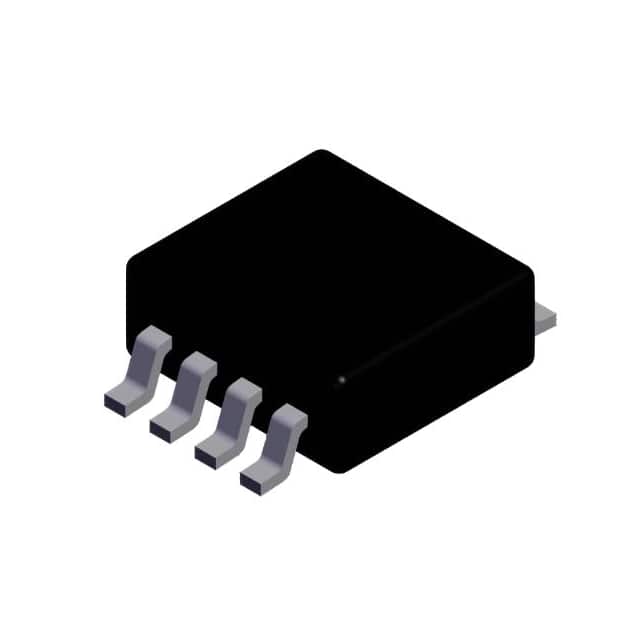

SN74AHC2G53HDCU3IC GEN PURP |
36,000 | 0.09 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74HC32AFR1IC GATE OR 4CH 2-INP 14SOIC |
36,000 | 0.09 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
MC74HC00ADR2IC GATE NAND 4CH 2-INP 14-SOIC |
35,898 | 0.09 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
74AC20MTCIC GATE NAND 2CH 4-INP 14TSSOP |
32,775 | 0.00 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
MC74HCT00ADTR2IC GATE NAND 4CH 2-INP 14TSSOP |
32,500 | 0.09 |
|
- |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.8V | 2V | 20ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHCT14ANIC INVERT SCHMITT 6CH 1INP 14DIP |
31,700 | 0.00 |
|
Datasheet |
74VHCT | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 9.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
SN74AHCT14NSIC HEX SCHMITT-TRIG INV 14SO |
31,300 | 0.09 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74VHCT04ANIC INVERTER 6CH 1-INP 14DIP |
31,000 | 0.00 |
|
Datasheet |
74VHCT | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
SN74AHC14NSIC HEX SCHMITT-TRIG 14SO |
29,235 | 0.09 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC74LCXU04DR2IC INVERTER 6CH 1-INP 14SOIC |
3,175 | 0.09 |
|
Datasheet |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 2V ~ 3.6V | 10 µA | 18mA, 16mA | 0.55V | 1.7V ~ 2.7V | 3.6ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
