Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G08DRLRIC GATE AND 1CH 2-INP SOT5 |
6,602 | 0.59 |
|
Datasheet |
74AUP | SOT-553 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-5 |
|
SN74LV1T02DBVRIC GATE NOR 1CH 2-INP SOT23-5 |
5,660 | 0.56 |
|
Datasheet |
74LV | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 1.6V ~ 5.5V | 10 µA | 8mA, 8mA | 0.58V ~ 0.8V | 0.94V ~ 2.1V | 7ns @ 5V, 30pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
HEF40106BTT,118IC INVERTER 6CH 1-INP 14TSSOP |
5,065 | 0.58 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 15V | 4 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 60ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT2G14GW-Q100HIC INVERT SCHMITT 2CH 2IN 6TSSOP |
4,293 | 0.53 |
|
Datasheet |
74HCT | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 32ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
CD4049UBPWRIC INVERTER 6CH 1-INP 16TSSOP |
3,672 | 0.65 |
|
Datasheet |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 4.3mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74ALVC08BQ,115IC GATE AND 4CH 2-INP 14DHVQFN |
2,068 | 0.54 |
|
Datasheet |
74ALVC | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 1.65V ~ 3.6V | 20 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|

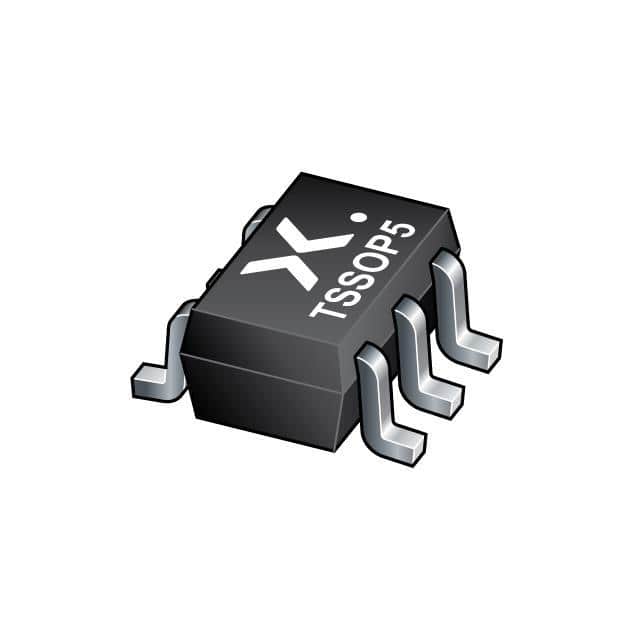

74AUP1T08GW-Q100HIC GATE AND 1CH 2-INP 5TSSOP |
1,514 | 0.56 |
|
Datasheet |
74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | Schmitt Trigger | 2.3V ~ 3.6V | 1.2 µA | 4mA, 4mA | 0.6V ~ 0.85V | 1.1V ~ 1.16V | 7ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
CD74HCT27EIC GATE NOR 3CH 3-INP 14DIP |
1,271 | 0.19 |
|
Datasheet |
74HCT | 14-DIP (0.300", 7.62mm) | Tube | Active | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 23ns @ 4.5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74LVC3G04DCURIC INVERTER 3CH 3-INP 8VSSOP |
5,170 | 0.67 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74AHC14NIC INVERT SCHMITT 6CH 1INP 14DIP |
10,418 | 0.60 |
|
Datasheet |
74AHC | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
74LVC2G86DP,125IC GATE XOR 2CH 2-INP 8TSSOP |
10,873 | 0.56 |
|
Datasheet |
74LVC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
SN74AC08PWRIC GATE AND 4CH 2-INP 14TSSOP |
6,995 | 0.61 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC3G14DC,125IC INVERT SCHMITT 3CH 3IN 8VSSOP |
6,485 | 0.60 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 1.1V ~ 2.5V | 1.7V ~ 3.8V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74AC00DRIC GATE NAND 4CH 2-INP 14SOIC |
5,998 | 0.59 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
CD4077BM96IC GATE XNOR 4CH 2-INP 14SOIC |
1,844 | 0.58 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | XNOR (Exclusive NOR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
CD74HC4002PWRIC GATE NOR 2CH 4-INP 14TSSOP |
2,251 | 0.60 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74ACT08PWRIC GATE AND 4CH 2-INP 14TSSOP |
3,141 | 0.65 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74AHC2G32DP,125IC GATE OR 2CH 2-INP 8TSSOP |
2,740 | 0.55 |
|
Datasheet |
74AHC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
74HC30D,653IC GATE NAND 1CH 8-INP 14SO |
2,441 | 0.13 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74AC00PWRIC GATE NAND 4CH 2-INP 14TSSOP |
2,261 | 0.61 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
