Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC7S32F,LFIC GATE OR 1CH 2-INP SMV |
34,585 | 0.48 |
|
Datasheet |
TC7S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
SN74LV00ADRIC GATE NAND 4CH 2-INP 14SOIC |
7,633 | 0.58 |
|
Datasheet |
74LV | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74HC11D,653IC GATE AND 3CH 3-INP 14SO |
16,679 | 0.61 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
TC7S04F,LFIC INVERTER 1CH 1-INP SMV |
15,122 | 0.48 |
|
Datasheet |
TC7S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
SN74AUP1G08QDCKRQ1IC GATE AND 1CH 2-INP SC70-5 |
12,693 | 0.58 |
|
Datasheet |
74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-70-5 |
|
|
TC7S00F,LFIC GATE NAND 1CH 2-INP SMV |
10,666 | 0.45 |
|
Datasheet |
TC7S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
SN74LVC2G02DCURIC GATE NOR 2CH 2-INP 8VSSOP |
9,330 | 0.65 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
74LVC2G00DP,125IC GATE NAND 2CH 2-INP 8TSSOP |
9,000 | 0.61 |
|
Datasheet |
74LVC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
SN74HCS02BQARIC GATE NOR 4CH 2-INP 14WQFN |
6,835 | 0.58 |
|
Datasheet |
74HCS | 14-QFN Exposed Pad | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 12ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-WQFN (3x2.5) |
|
|
TC7S14F,LFIC INVERT SCHMITT 1CH 1-INP SMV |
6,357 | 0.48 |
|
Datasheet |
TC7S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
SN74LV00APWRIC GATE NAND 4CH 2-INP 14TSSOP |
6,246 | 0.64 |
|
Datasheet |
74LV | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
CD4070BPWRIC GATE XOR 4CH 2-INP 14TSSOP |
5,338 | 0.58 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74AHCT14QPWRQ1IC INVERTER 6CH 1-INP 14TSSOP |
5,228 | 0.62 |
|
Datasheet |
74AHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 8ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
74LVC132APW,118IC GATE NAND 4CH 2-INP 14TSSOP |
5,150 | 0.59 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1V ~ 2V | 6.4ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
CD74HC30NSRIC GATE NAND 1CH 8-INP 14SO |
4,353 | 0.51 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74HCS00BQARIC GATE NAND 4CH 2-INP 14WQFN |
1,214 | 0.58 |
|
Datasheet |
74HCS | 14-QFN Exposed Pad | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 12ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-WQFN (3x2.5) |
|
|
SN74AC86DRIC GATE XOR 4CH 2-INP 14SOIC |
4,294 | 0.59 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74ACT08DRIC GATE AND 4CH 2-INP 14SOIC |
7,852 | 0.59 |
|
Datasheet |
74ACT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|

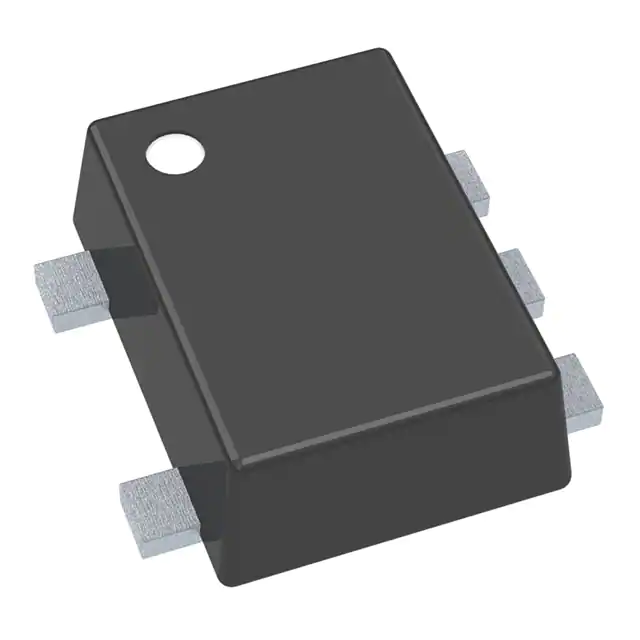

NL17SV08XV5T2GIC GATE AND 1CH 2-INP SOT553 |
7,827 | 0.46 |
|
Datasheet |
17SV | SOT-553 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 2.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-553 |
|
|
SN74AC11PWRIC GATE AND 3CH 3-INP 14TSSOP |
7,823 | 0.64 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
