Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

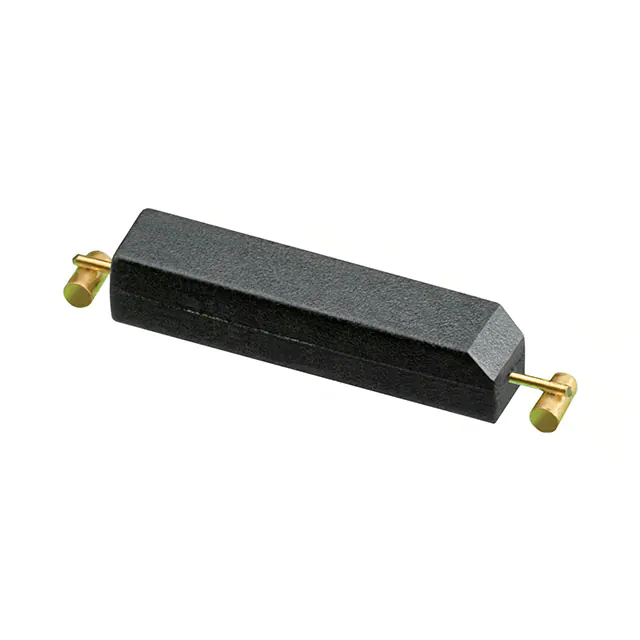

PMC-1001THYSWITCH REED SPST-NC 700MA 130V |
3,671 | 3.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NC | 10 ~ 50AT | 5AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.772" (19.60mm) | 0.575" L x 0.118" W x 0.138" H (14.60mm x 3.00mm x 3.50mm) | - | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|

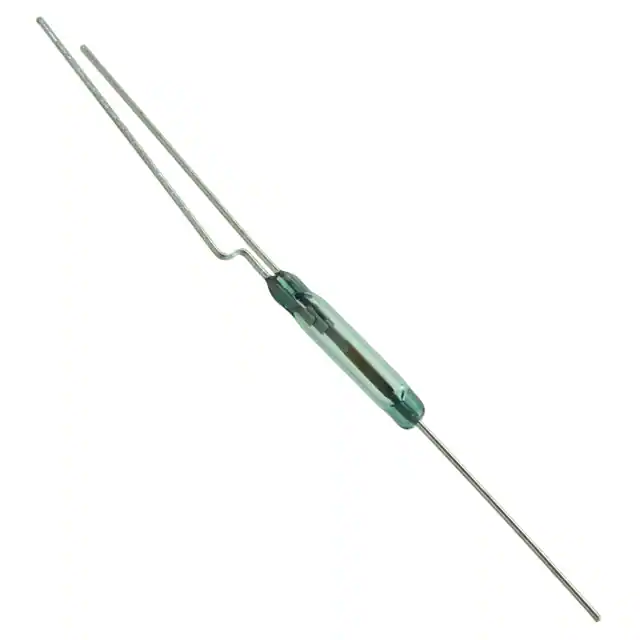

ORT 551-1/10-15 ATSWITCH REED SPDT 200MA 30V |
2,006 | 3.56 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 200mA (AC/DC) | 30 V | 30 V | 3VA | 1 ms | 0.5 ms | Through Hole | Axial | 2.209" (56.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | - | 1.5 pF | 500mA (AC/DC) |
|

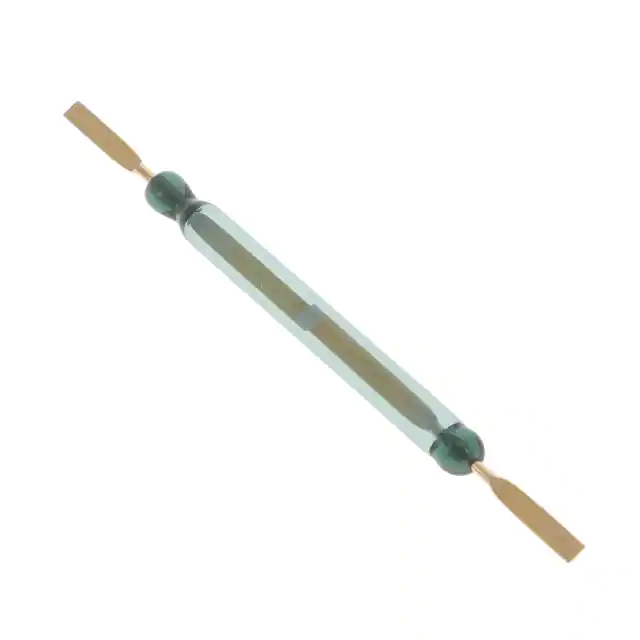

GC1513 - 8085SWITCH REED SPST-NO 3A 1500V |
2,100 | 4.66 |
|
Datasheet |
GC1513 | Bulk | Active | Glass Body Reed | SPST-NO | 80 ~ 85AT | 30AT | 3A (AC/DC) | 1500 V | 1500 V | 120W | 4 ms | 0.2 ms | Surface Mount | Axial, Flat | 3.110" (79.00mm) | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) | - | -40°C ~ 125°C | 0.8 pF | 5A (AC/DC) |
|

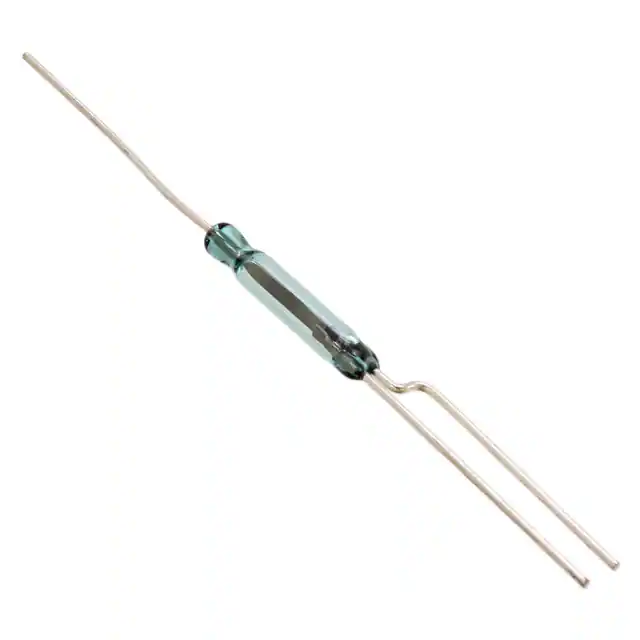

MDRR-DT-15-20-FSWITCH REED SPDT 180MA 120V |
3,797 | 5.17 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|

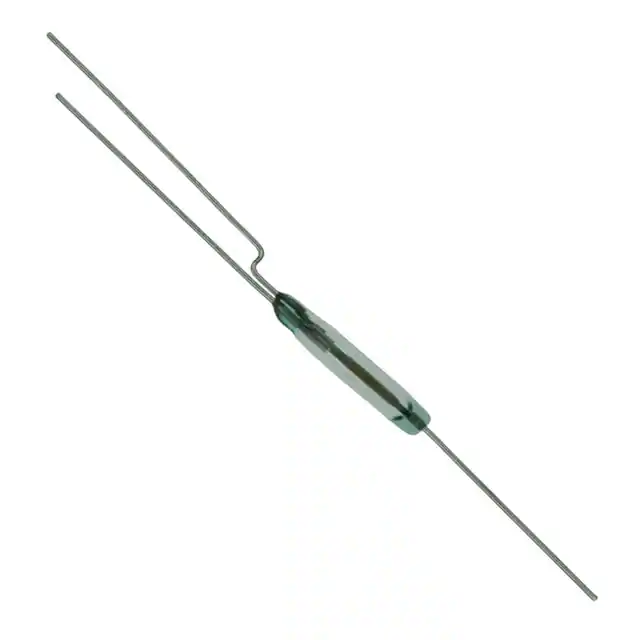

KSK-1C90F-1015SWITCH REED SPDT 500MA 175V |
1,827 | 4.22 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | Axial | 2.169" (55.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | -40°C ~ 130°C | 1 pF | 1A (AC/DC) |
|
KSK-1C90F-2025SWITCH REED SPDT 500MA 175V |
478 | 4.22 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | Axial | 2.169" (55.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | -40°C ~ 130°C | 1 pF | 1A (AC/DC) |
|

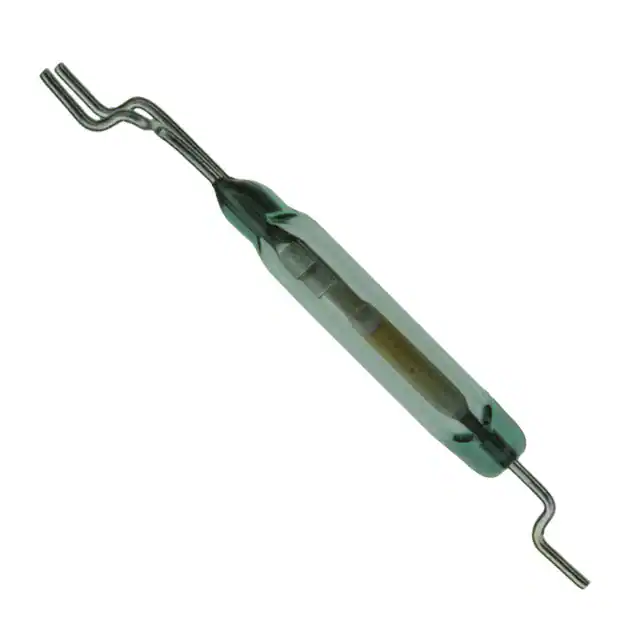

MK23-90-C-2SWITCH REED SPDT 500MA 175V |
15,263 | 4.29 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | 0.110" (2.80mm) | -40°C ~ 130°C | 1.5 pF | 1A (AC/DC) |
|
MK15-B-2-OESWITCH REED SPST-NC 500MA 180V |
5,189 | 4.41 |
|
Datasheet |
MK15 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NC | 10 ~ 15AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | Gull Wing | 0.768" (19.50mm) | 0.630" L x 0.098" W x 0.148" H (16.00mm x 2.50mm x 3.75mm) | 0.152" (3.85mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|

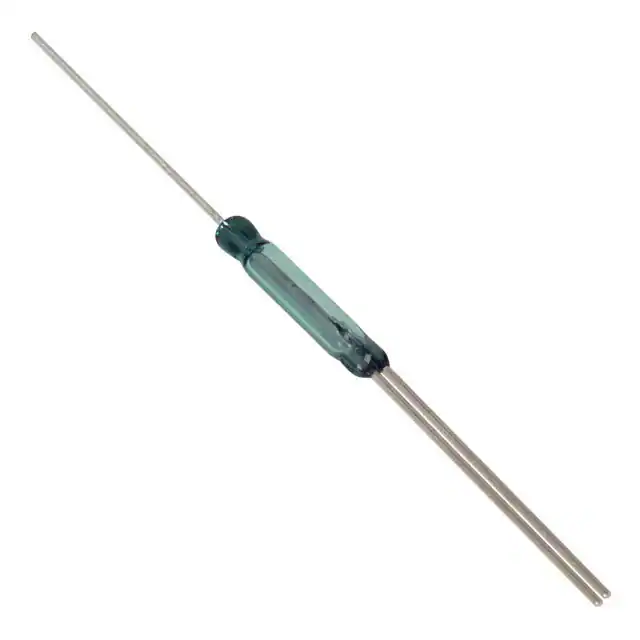

MDRR-DT-30-35-USWITCH REED SPDT 180MA 120V |
1,186 | 5.08 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 30 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|

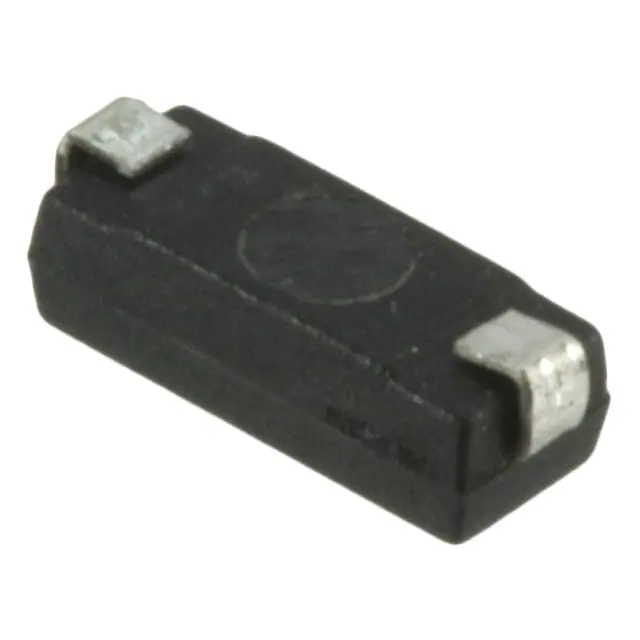

MK24-C-3SWITCH REED SPST-NO 300MA 30V |
737 | 5.07 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 40 ~ 83AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | J Lead | 0.217" (5.51mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|

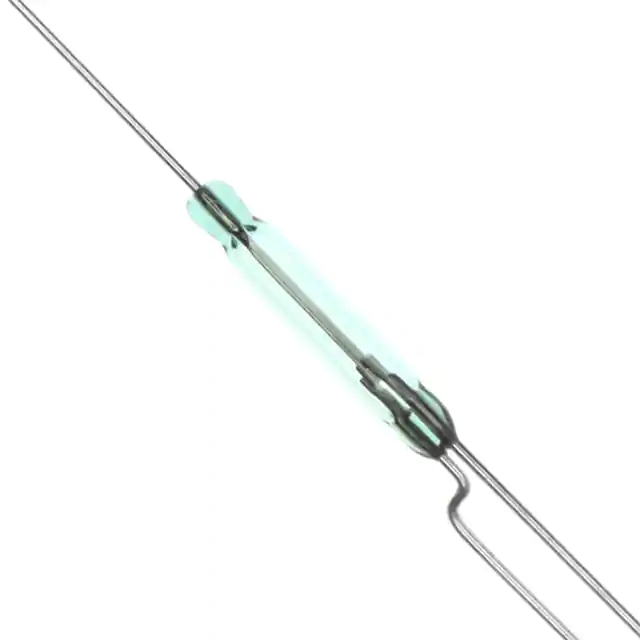

MDRR-DT-15-25-FSWITCH REED SPDT 180MA 120V |
1,329 | 3.77 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|

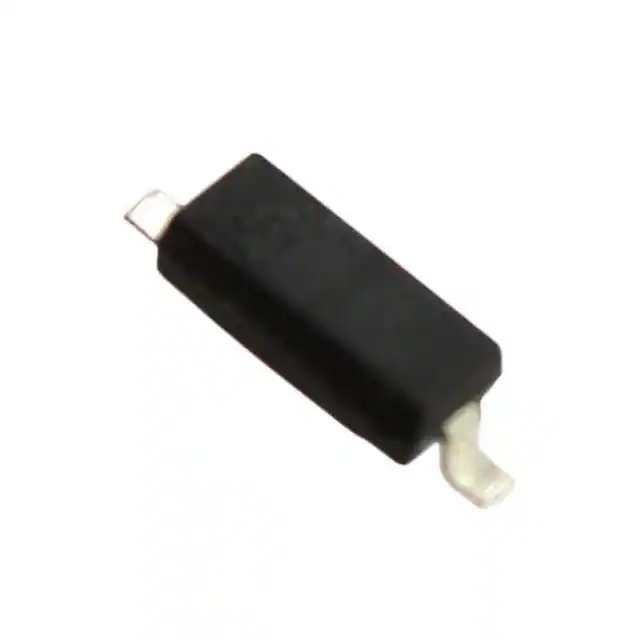

MK24-B-2SWITCH REED SPST-NO 300MA 30V |
19,134 | 4.80 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 37 ~ 71AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Gull Wing | 0.272" (6.91mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
|
MK24-A-2SWITCH REED SPST-NO 100MA 30V |
16,056 | 4.80 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 22 ~ 55AT | - | 100mA (AC/DC) | 30 V | 30 V | 1W | 0.25 ms | 0.15 ms | Surface Mount | Gull Wing | 0.272" (6.91mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 300mA (AC/DC) |
|
MDSM-DTR-20-25SWITCH REED SPDT 180MA 120V |
7,141 | 3.13 |
|
Datasheet |
MDSM-DT | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MK24-A-3SWITCH REED SPST-NO 100MA 30V |
18,482 | 5.07 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 23 ~ 50AT | - | 100mA (AC/DC) | 30 V | 30 V | 1W | 0.25 ms | 0.15 ms | Surface Mount | J Lead | 0.217" (5.51mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 300mA (AC/DC) |
|
|
MK24-B-3SWITCH REED SPST-NO 300MA 30V |
2,458 | 5.07 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 33 ~ 67AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | J Lead | 0.217" (5.51mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|

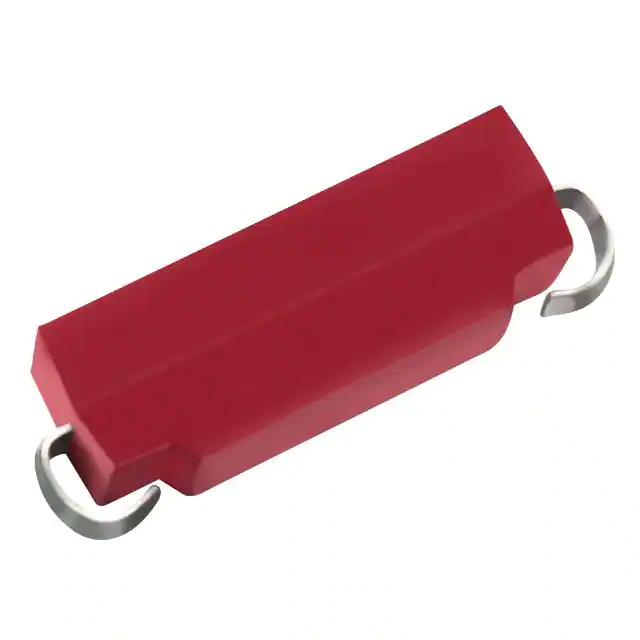

CT05-1535-J1SWITCH REED SPST-NO 250MA 100V |
4,298 | 2.94 |
|
Datasheet |
CT05 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 35AT | - | 250mA (AC), 350mA (DC) | 100 V | 140 V | 5W | - | - | Surface Mount | J Lead | 0.298" (7.57mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.094" (2.40mm) | -40°C ~ 125°C | - | 500mA (DC) |
|

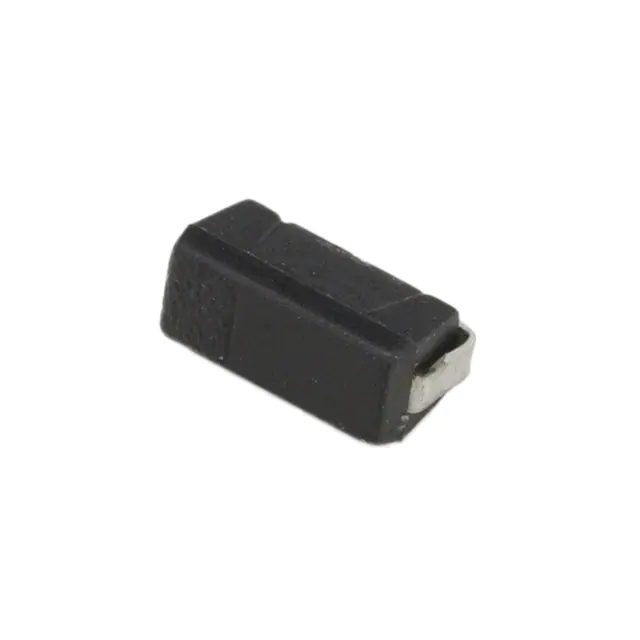

MK24-B-3-OESWITCH REED SPST-NC 300MA 30V |
3,288 | 7.93 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NC | 20 ~ 40AT | 10 ~ 35AT | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.25 ms | 0.15 ms | Surface Mount | J Lead | 0.217" (5.51mm) | 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm) | 0.102" (2.60mm) | -40°C ~ 115°C | 0.1 pF | 500mA (AC/DC) |
|

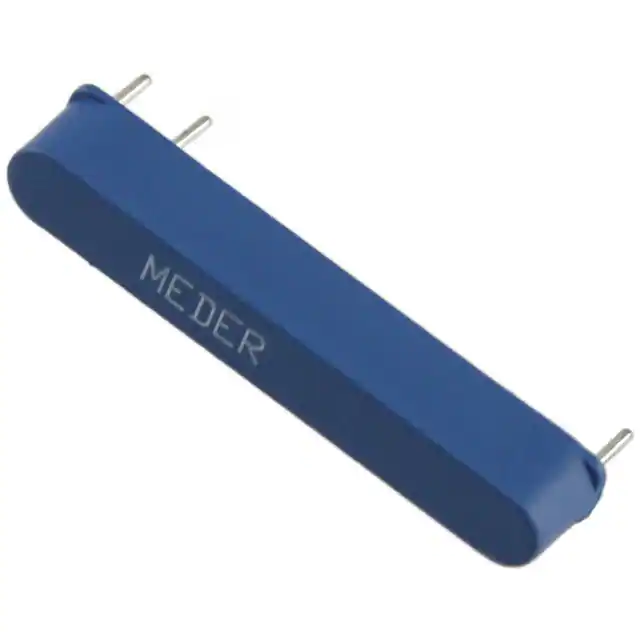

MK06-8-HSWITCH REED SPDT 500MA 175V |
785 | 6.89 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPDT | 15 ~ 20AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | PC Pin | 0.879" (22.33mm) | 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 1.5 pF | 1A (AC/DC) |
|

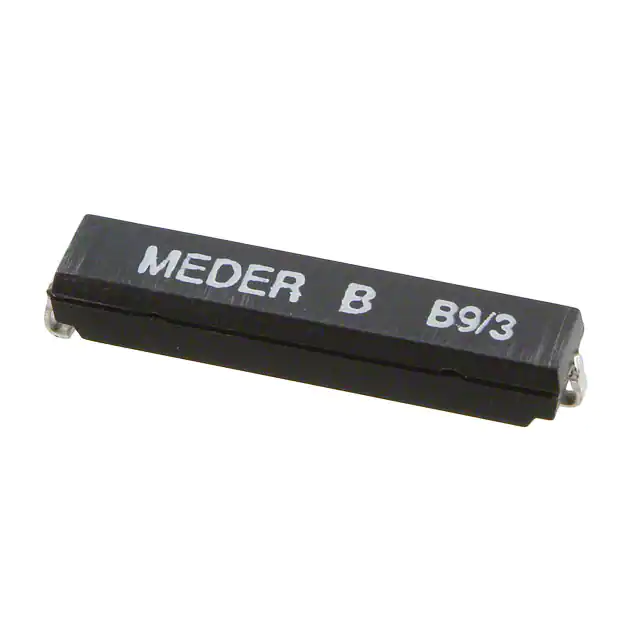

MK01-HSWITCH REED SPDT 500MA 175V |
6,758 | 7.91 |
|
Datasheet |
MK01 | Tape & Reel (TR) | Active | Molded Body Reed | SPDT | 42 ~ 84AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Surface Mount | J Lead | 0.740" (18.80mm) | 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm) | 0.134" (3.40mm) | -20°C ~ 130°C | 1.5 pF | 1A (AC/DC) |
