Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RI-46GP2530SWITCH REED SPST-NO 1A 250V |
690 | 0.93 |
|
Datasheet |
RI-46 | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 1A (AC/DC) | 250 V | 200 V | 40W | 0.35 ms | 0.03 ms | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | - | -55°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MDCG-4-17-23SWITCH REED SPST-NO 350MA 140V |
936 | 1.38 |
|
Datasheet |
MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-12-33SWITCH REED SPST-NO 350MA 140V |
684 | 1.38 |
|
Datasheet |
MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
RI-70GP1015SWITCH REED SPST-NO 500MA 120V |
27,397 | 0.87 |
|
Datasheet |
RI-70 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 120 V | 170 V | 10W | 0.15 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -55°C ~ 125°C | 0.35 pF | 400mA (AC/DC) |
|

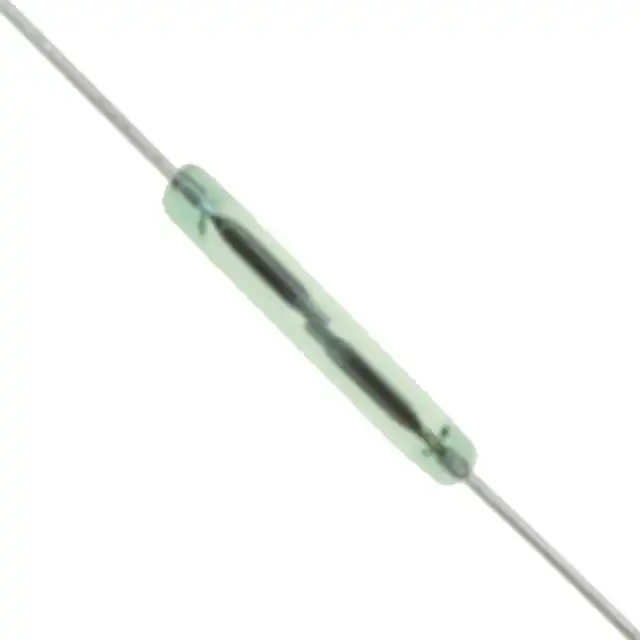

MDSR-4-12-23SWITCH REED SPST-NO 500MA |
1,644 | 1.38 |
|
Datasheet |
MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 23AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

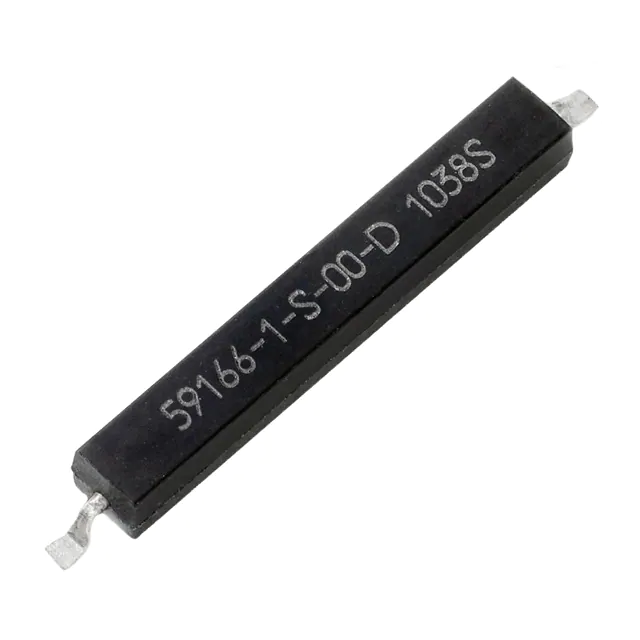

59166-1-S-00-DSWITCH REED SPST-NO 350MA 140V |
1,948 | 1.04 |
|
Datasheet |
59166 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.805" (20.45mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
KSK-1A35-1520SWITCH REED SPST-NO 1A 200V |
2,889 | 0.60 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 1A (AC/DC) | 200 V | 200 V | 20W | 0.5 ms | 0.1 ms | Surface Mount | Axial, Flat | 1.358" (34.50mm) | 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|

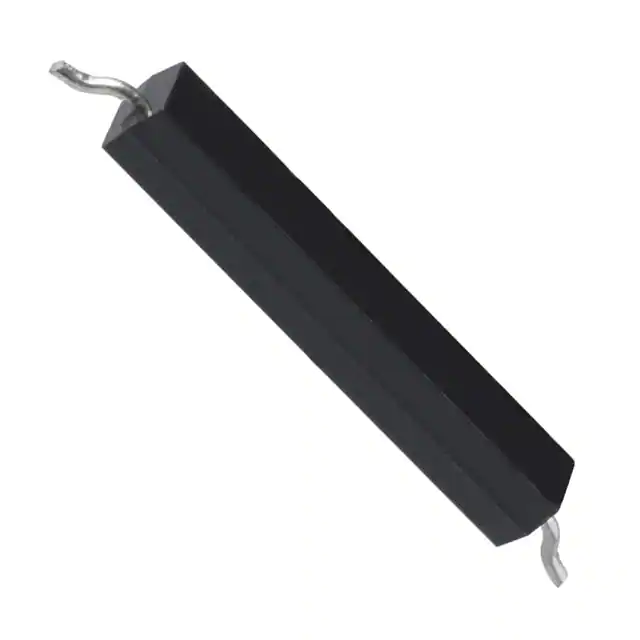

59165-1-T-00-DSWITCH REED SPST-NO 350MA 140V |
1,761 | 1.14 |
|
Datasheet |
59165 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|

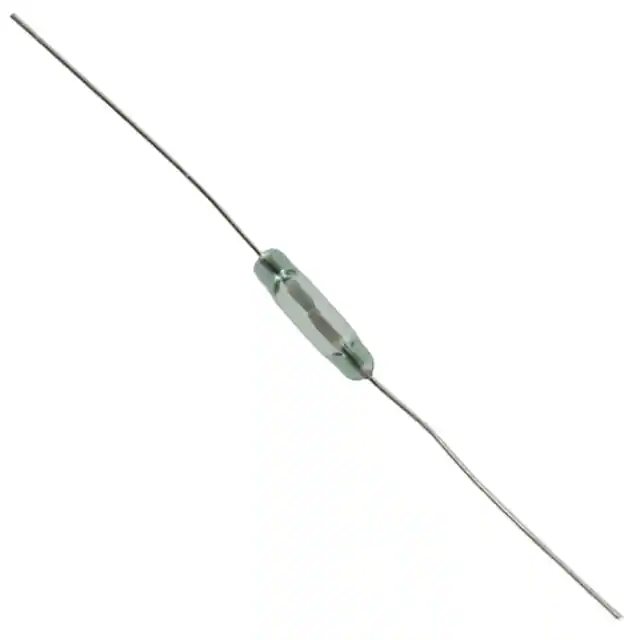

ORD 213/20-30 ATSWITCH REED SPST-NO 100MA 24V |
3,491 | 1.50 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 100mA (AC/DC) | 24 V | 24 V | 1VA | 0.3 ms | 0.05 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | - | 0.4 pF | 300mA (AC/DC) |
|

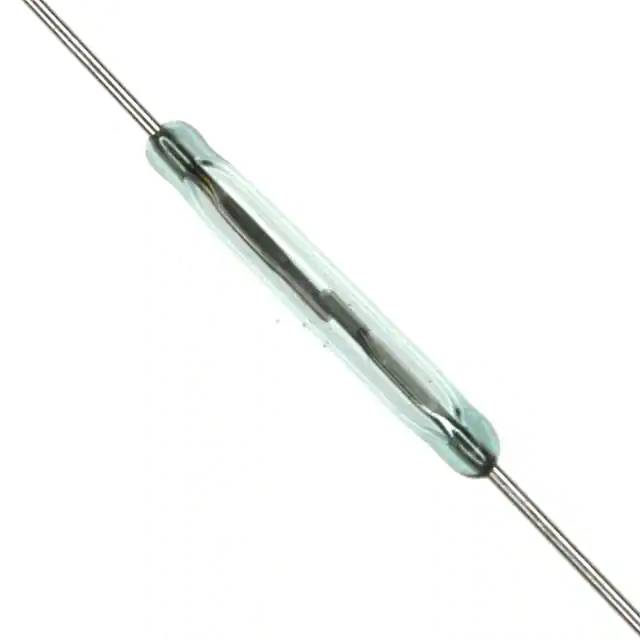

MDSR-7-20-25SWITCH REED SPST-NO 350MA 140V |
734 | 1.57 |
|
Datasheet |
MDSR-7 | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|

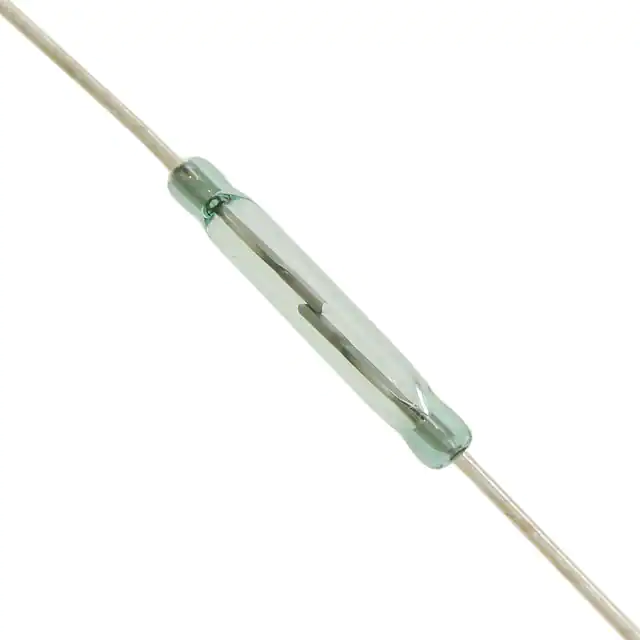

MDSR-7-10-15SWITCH REED SPST-NO 350MA 140V |
341 | 1.57 |
|
Datasheet |
MDSR-7 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|

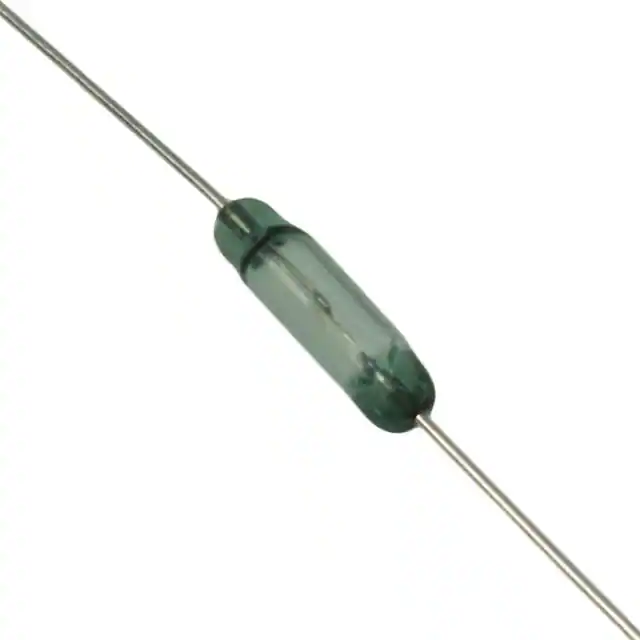

ORD 213/15-20 ATSWITCH REED SPST-NO 100MA 24V |
1,026 | 1.50 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 100mA (AC/DC) | 24 V | 24 V | 1VA | 0.3 ms | 0.05 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | - | 0.4 pF | 300mA (AC/DC) |
|

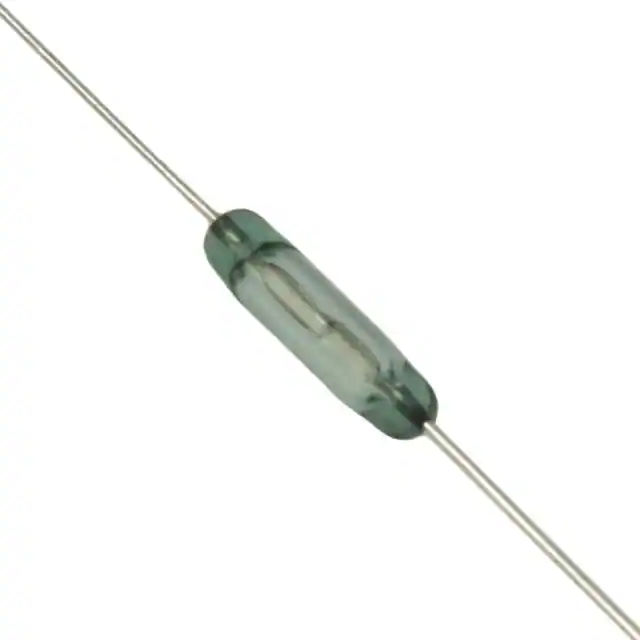

ORD 213/10-15 ATSWITCH REED SPST-NO 100MA 24V |
7,030 | 1.50 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 100mA (AC/DC) | 24 V | 24 V | 1VA | 0.3 ms | 0.05 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | - | 0.4 pF | 300mA (AC/DC) |
|

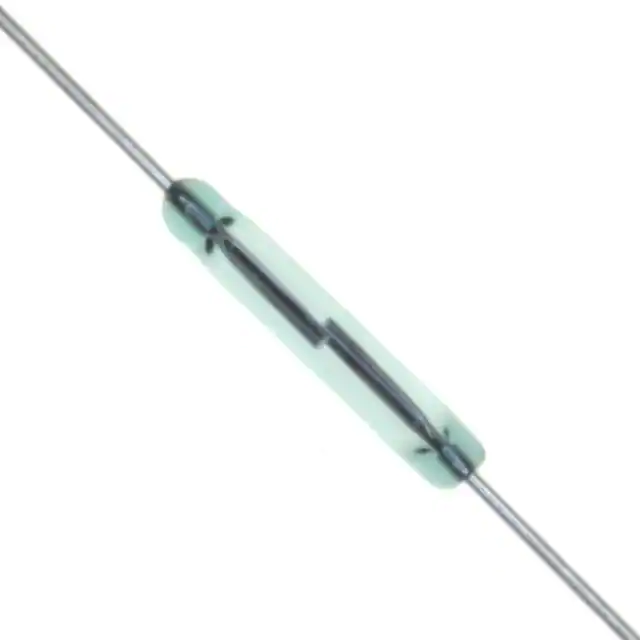

MLRR-4-17-23SWITCH REED SPST-NO 700MA 140V |
2,073 | 1.67 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
MK15-E-2SWITCH REED SPST-NO 500MA 180V |
28,374 | 1.23 |
|
Datasheet |
MK15 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | Gull Wing | 0.768" (19.50mm) | 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm) | 0.102" (2.60mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|

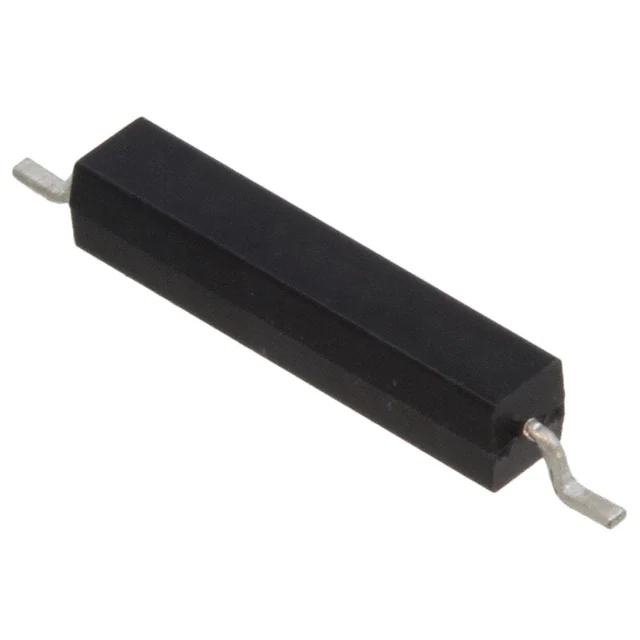

59170-1-T-00-DSWITCH REED SPST-NO 350MA 140V |
22,662 | 1.06 |
|
Datasheet |
59170 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|

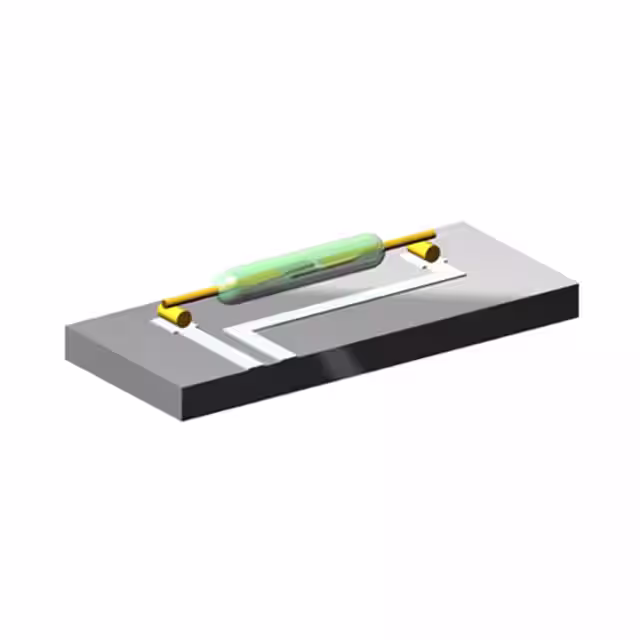

PMC-1001T1015SWITCH REED SPST-NO 700MA 130V |
4,975 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.640" (16.26mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|

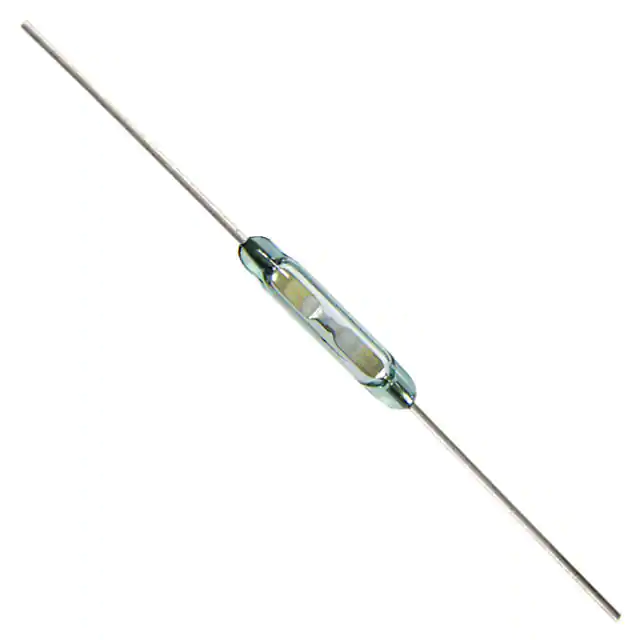

KSK-1A87-1520SWITCH REED SPST-NO 400MA 200V |
707 | 0.78 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.1 ms | Through Hole | Axial | 1.406" (35.70mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
GC2717 - 2530SWITCH REED SPST-NO 500MA 500V |
9,460 | 1.31 |
|
Datasheet |
GC2717 | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | 5AT | 500mA (AC/DC) | 500 V | 500 V | 10VA | - | 0.1 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.102" Dia x 0.748" L (2.60mm x 19.00mm) | - | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|

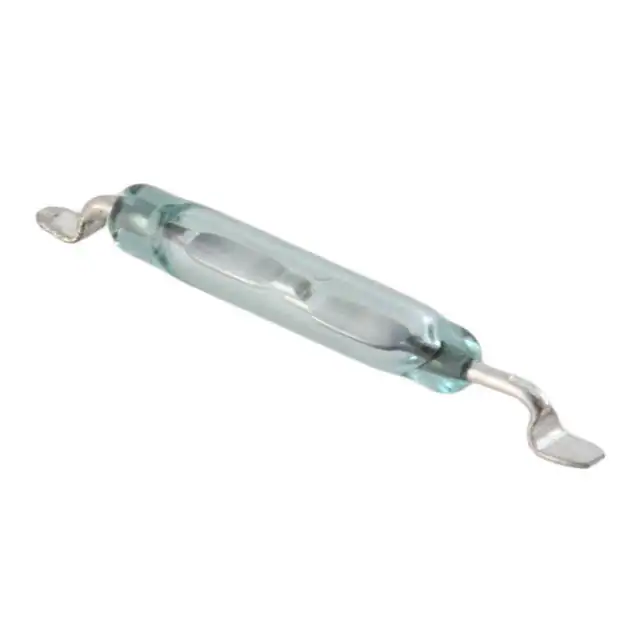

MDSM-10R-10-15SWITCH REED SPST-NO 350MA 140V |
10,961 | 1.82 |
|
Datasheet |
MDSM-10 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
