Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

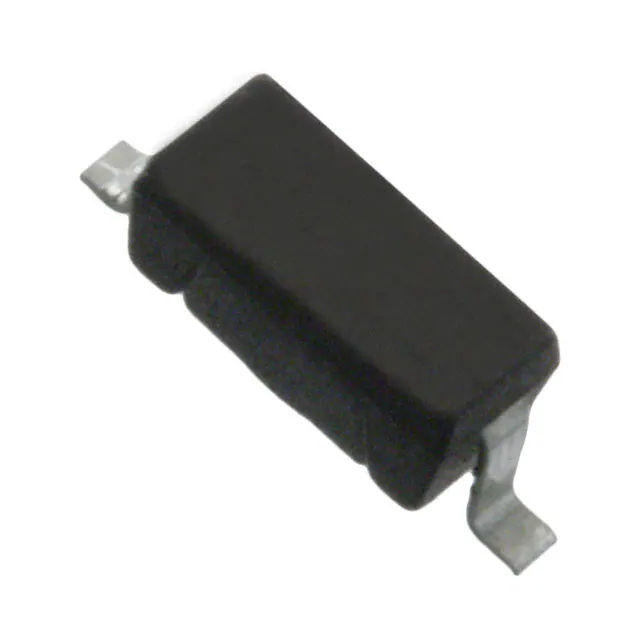

MK24-B-2-OESWITCH REED SPST-NC 300MA 30V |
6,949 | 7.93 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NC | 20 ~ 40AT | 10 ~ 35AT | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.25 ms | 0.15 ms | Surface Mount | Gull Wing | 0.283" (7.20mm) | 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm) | 0.102" (2.60mm) | -40°C ~ 115°C | 0.1 pF | 500mA (AC/DC) |
|
MG-B2-6.5-LSWITCH MAGNETIC SPST-NC 250MA |
1,788 | 8.15 |
|
Datasheet |
L | Bulk | Active | Magnasphere® Magnetic | SPST-NC | 25.40mm | 27.74mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.723" (18.36mm) | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | 1 pF | - |
|
MG-B2-6.5-L-25SWITCH MAGNETIC SPST-NC 250MA |
2,323 | 10.60 |
|
Datasheet |
L | Bulk | Active | Magnasphere® Magnetic | SPST-NC | 25.40mm | 27.74mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.723" (18.36mm) | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | 1 pF | - |
|
MG-A2-1.5-NSWITCH MAGNETIC SPST-NO 250MA |
979 | 7.09 |
|
Datasheet |
N | Bulk | Active | Magnasphere® Magnetic | SPST-NO | 20.78mm | 33.35mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.615" (15.62mm) | 0.244" Dia x 0.175" L (6.20mm x 4.45mm) | 0.175" (4.45mm) | -40°C ~ 150°C | 1 pF | - |
|

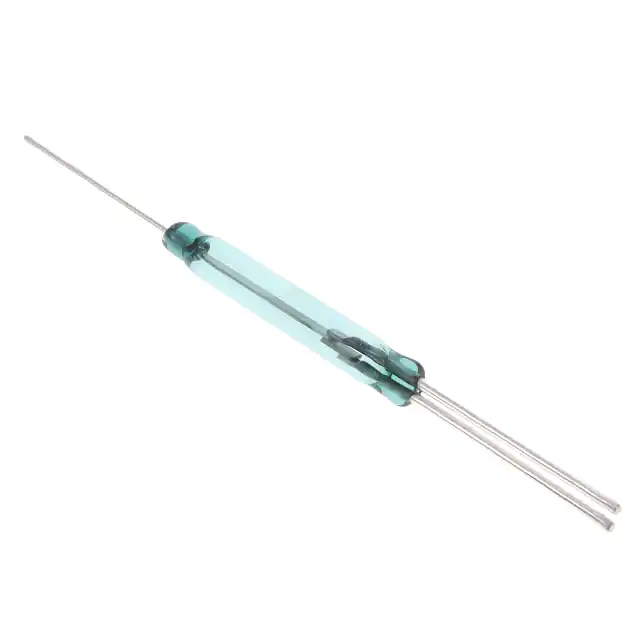

DRS-DTH-75-80SWITCH REED SPDT 350MA 350V |
875 | 19.32 |
|
Datasheet |
DRS-DTH | Bulk | Active | Glass Body Reed | SPDT | 75 ~ 80AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
|
ORD 624/15-20 ATSWITCH REED SPST-NO 500MA 150V |
3,779 | 0.00 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 150 V | 200 V | - | 0.4 ms | 0.3 ms | Through Hole | Axial | 1.732" (44.00mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|
|
RI-02SMDM-1520-G1SWITCH REED SPST-NO 500MA 140V |
8,205 | 0.86 |
|
Datasheet |
RI-02SMDM | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4 ~ 18AT | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.639" (16.23mm) | 0.452" L x 0.090" W x 0.090" H (11.48mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | - | 500mA (DC) |
|

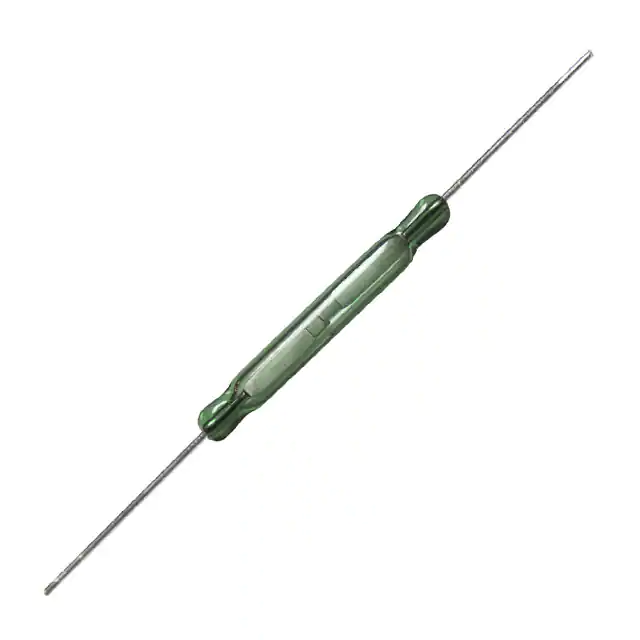

RI-03GP1520SWITCH REED SPST-NO 500MA 140V |
8,554 | 0.68 |
|
Datasheet |
RI-03 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
RI-03GP2025SWITCH REED SPST-NO 500MA 140V |
10,365 | 0.68 |
|
Datasheet |
RI-03 | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|

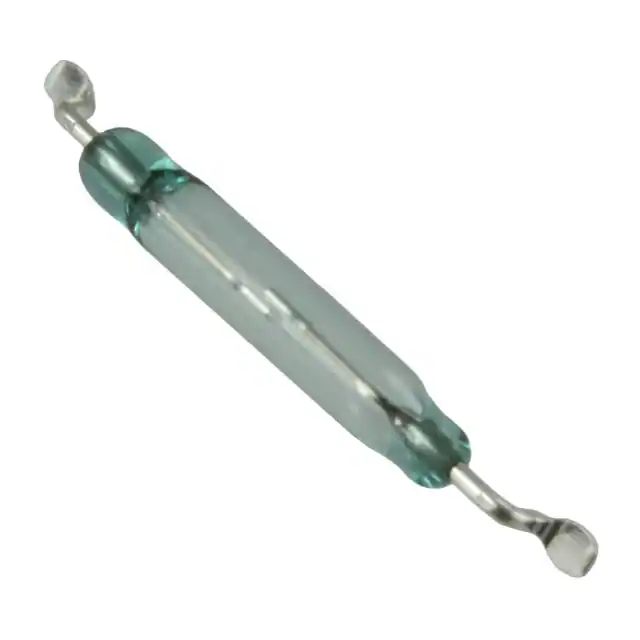

MK23-66-B-2SWITCH REED SPST-NO 500MA 200V |
7,058 | 1.16 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Surface Mount | Gull Wing | 0.772" (19.60mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.098" (2.50mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
SW GP560/20-25 ATSWITCH REED SPST-NO 1A 125V |
4,216 | 0.59 |
|
Datasheet |
GP560 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 50AT | 6 ~ 21AT | 1A (AC/DC) | 125 V | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|

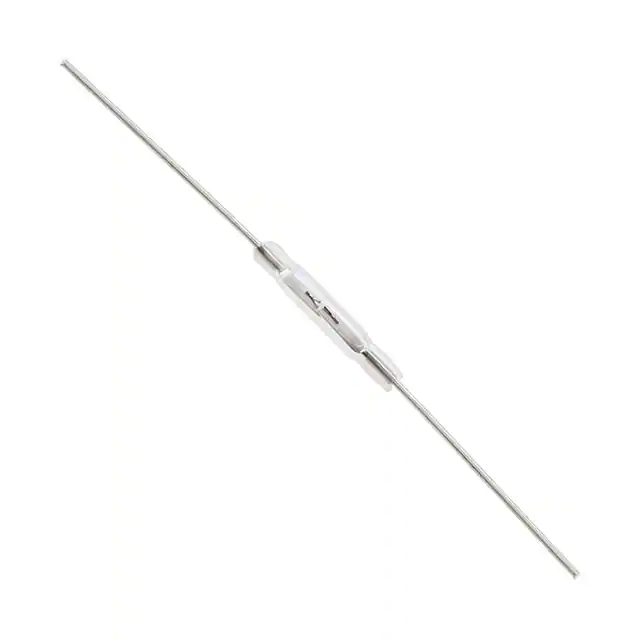

SW GP560/10-15 ATSWITCH REED SPST-NO 1A 125V |
1,799 | 0.59 |
|
Datasheet |
GP560 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 50AT | 6 ~ 21AT | 1A (AC/DC) | 125 V | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|
RI-02GP1520SWITCH REED SPST-NO 500MA 140V |
57,304 | 0.65 |
|
Datasheet |
RI-02 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.3 ms | 0.07 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -55°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
RI-02GP1015SWITCH REED SPST-NO 500MA 140V |
31,703 | 0.65 |
|
Datasheet |
RI-02 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.3 ms | 0.07 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -55°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
PMC-1401S1520SWITCH REED SPST-NO 1A 140V |
12,800 | 0.84 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) |
|
|
PMC-1401S1015SWITCH REED SPST-NO 1A 140V |
4,573 | 0.84 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) |
|

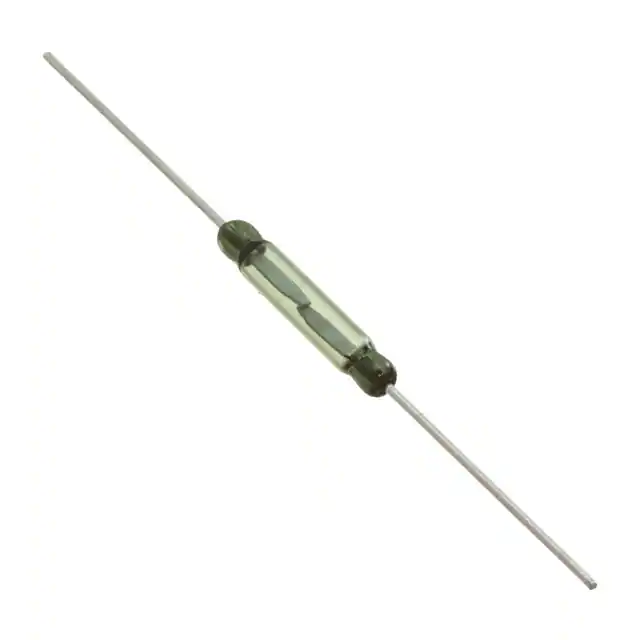

RI-23GP-4045SWITCH REED SPST-NO 500MA 140V |
5,655 | 0.76 |
|
Datasheet |
RI-23GP | Bulk | Active | Glass Body Reed | SPST-NO | 40 ~ 45AT | 20 ~ 42AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|
FLEX-14-20-25SWITCH REED SPST-NO 350MA 140V |
34,134 | 1.22 |
|
Datasheet |
FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|

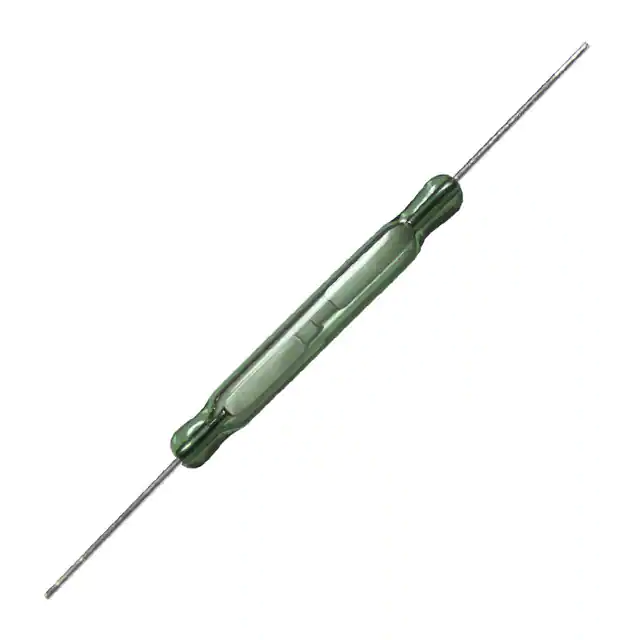

RI-46GP3035SWITCH REED SPST-NO 1A 250V |
22,712 | 0.93 |
|
Datasheet |
RI-46 | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | - | 1A (AC/DC) | 250 V | 200 V | 40W | 0.35 ms | 0.03 ms | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | - | -55°C ~ 125°C | 0.2 pF | 3A (DC) |
|
RI-69GP1520SWITCH REED SPST-NO 700MA 140V |
3,023 | 0.81 |
|
Datasheet |
RI-69 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 3 ~ 16AT | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.15 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.390" L (1.80mm x 9.91mm) | - | -55°C ~ 75°C | 0.25 pF | 1A (DC) |
