Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AJ212025REED SWITCHES FOR. A-14MM-10W/10 |
2,999 | 0.00 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 10 ~ 18AT | 400mA (DC) | - | 100 V | 10W | 1.1 ms | 50 µs | Through Hole | Axial | 1.740" (44.20mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
AJ212530REED SWITCHES FOR. A-14MM-10W/10 |
1,118 | 0.00 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 13AT | 10 ~ 18AT | 400mA (DC) | - | 100 V | 10W | 1.1 ms | 50 µs | Through Hole | Axial | 1.740" (44.20mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
AJ211720REED SWITCHES FOR. A-14MM-10W/10 |
3,596 | 0.00 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 20AT | 10 ~ 18AT | 400mA (DC) | - | 100 V | 10W | 1.1 ms | 50 µs | Through Hole | Axial | 1.740" (44.20mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|

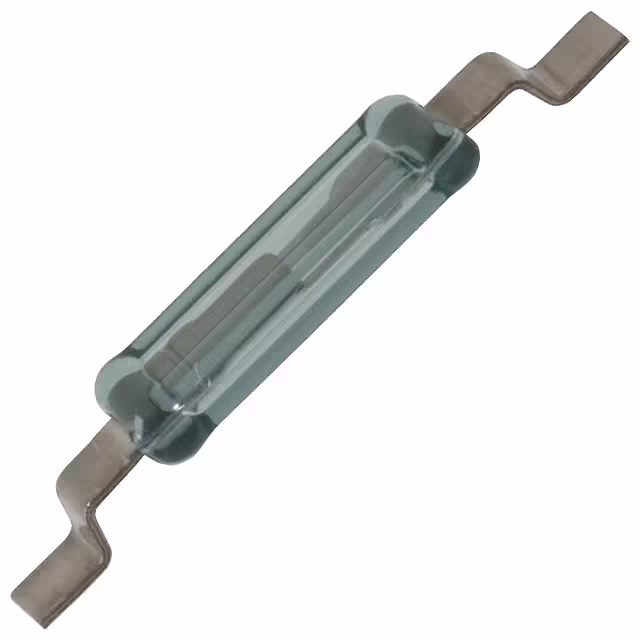

UM2376SWITCH REED SPST-NO 250MA 175V |
1,623 | 0.00 |
|
Datasheet |
UM2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 30AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | 0.064" (1.64mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
MK24-B-1SWITCH REED SPST-NO 300MA 30V |
4,329 | 0.00 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 37 ~ 71AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Axial, Flat | 0.303" (7.70mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | - | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
|
UM2315SWITCH REED SPST-NO 250MA 175V |
3,775 | 0.00 |
|
Datasheet |
UM2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 20AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | 0.064" (1.64mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
|
UM2319SWITCH REED SPST-NO 250MA 175V |
4,890 | 0.00 |
|
Datasheet |
UM2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | 0.064" (1.64mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
|
UM2325SWITCH REED SPST-NO 250MA 175V |
4,125 | 0.00 |
|
Datasheet |
UM2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | 0.064" (1.64mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
|
MVSR-20-12-18SWITCH REED SPST-NO 350MA 265V |
4,955 | 2.54 |
|
Datasheet |
MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MVSR-20-17-28SWITCH REED SPST-NO 350MA 265V |
3,401 | 2.54 |
|
Datasheet |
MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MVSR-20-17-33SWITCH REED SPST-NO 350MA 265V |
1,141 | 2.54 |
|
Datasheet |
MVSR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 33AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MVSR-20-22-38SWITCH REED SPST-NO 350MA 265V |
2,503 | 2.54 |
|
Datasheet |
MVSR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MVSR-20-27-33SWITCH REED SPST-NO 350MA 265V |
4,093 | 2.54 |
|
Datasheet |
MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MVSR-20-37-43SWITCH REED SPST-NO 350MA 265V |
3,956 | 2.54 |
|
Datasheet |
MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MVSR-20-42-48SWITCH REED SPST-NO 350MA 265V |
2,502 | 2.54 |
|
Datasheet |
MVSR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
MISM-3V1R-6-10SWITCH REED SPST-NO 180MA 120V |
3,644 | 0.00 |
|
Datasheet |
MISM-3V1 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 0.45 ms | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

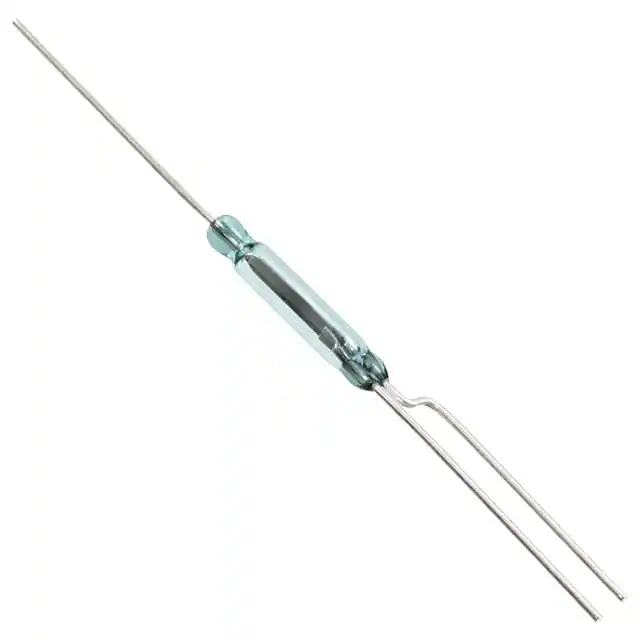

MDRR-DT-20-35-FSWITCH REED SPDT 180MA 120V |
1,714 | 2.93 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 20 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-35-40-USWITCH REED SPDT 180MA 120V |
4,636 | 3.01 |
|
Datasheet |
MDRR-DT | Bulk | Obsolete | Glass Body Reed | SPDT | 35 ~ 40AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-35-40-FSWITCH REED SPDT 180MA 120V |
1,041 | 4.99 |
|
Datasheet |
MDRR-DT | Box | Obsolete | Glass Body Reed | SPDT | 35 ~ 40AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
CM5-2376SWITCH REED SPST-NO 250MA 175V |
2,295 | 0.00 |
|
Datasheet |
CM5 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 30AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Gull Wing | 0.394" (10.00mm) | 0.265" L x 0.115" W x 0.094" H (6.73mm x 2.92mm x 2.40mm) | 0.120" (3.05mm) | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
