Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA15-2-17-28SWITCH REED SPST-NO 300MA 265V |
1,529 | 1.33 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 300mA (AC), 400mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.4A (DC) |
|
|
HA15-2-17-38SWITCH REED SPST-NO 300MA 265V |
2,192 | 1.33 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 38AT | - | 300mA (AC), 400mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.4A (DC) |
|
|
HA15-2-22-38SWITCH REED SPST-NO 350MA 265V |
1,370 | 1.33 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|
|
HA15-2-27-38SWITCH REED SPST-NO 350MA 265V |
3,276 | 1.33 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|

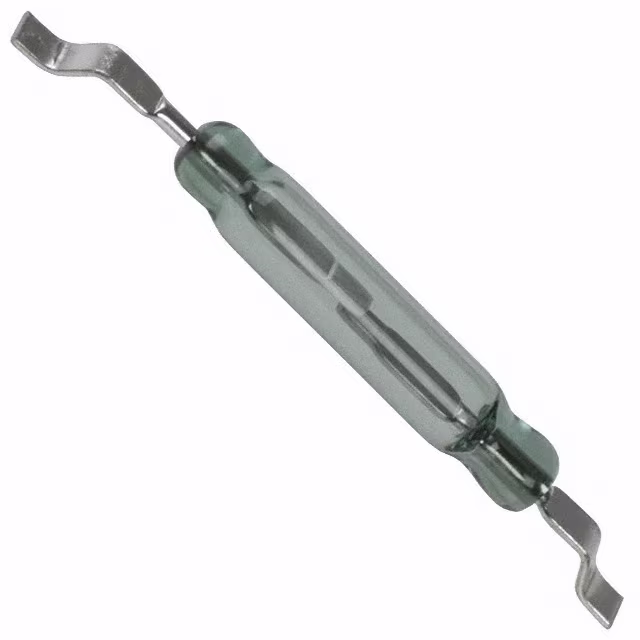

RI-02SMD-G1SWITCH REED SPST-NO 500MA 140V |
3,270 | 0.00 |
|
Datasheet |
RI-02 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 5 ~ 18AT | 2 ~ 17AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.3 ms | 0.07 ms | Surface Mount | Gull Wing | 0.639" (16.23mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | 0.087" (2.20mm) | -55°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

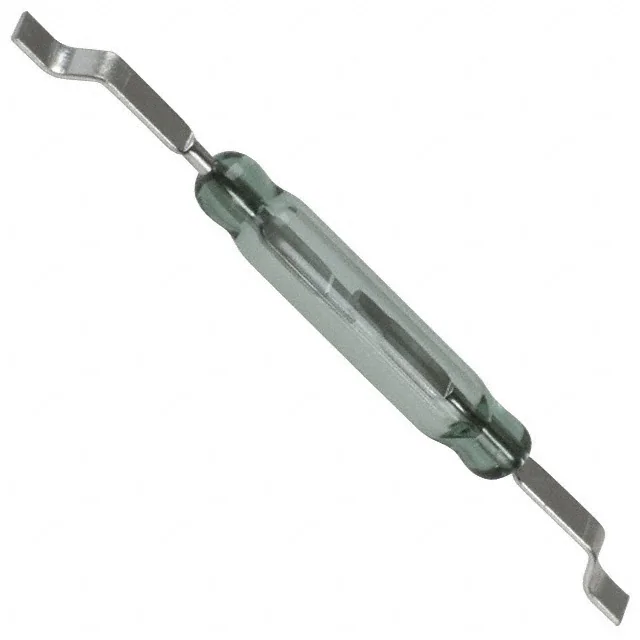

RI-02SMD-G2SWITCH REED SPST-NO 500MA 140V |
1,524 | 0.00 |
|
Datasheet |
RI-02 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 5 ~ 18AT | 2 ~ 17AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.3 ms | 0.07 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | 0.087" (2.20mm) | -55°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

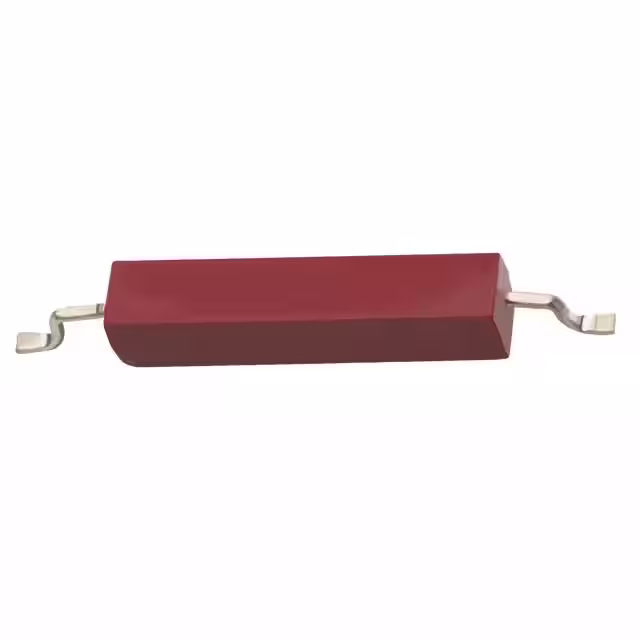

CT10-1040-G2SWITCH REED SPST-NO 500MA 140V |
4,811 | 0.00 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 40AT | 3 ~ 35AT | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
ORD 229/25-30 ATSWITCH REED SPST-NO 500MA 300V |
2,482 | 1.39 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC), 700mA (DC) | 300 V | 350 V | 50W | 0.6 ms | 0.05 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | - | 0.5 pF | 2.5A (AC/DC) |
|
|
AC031035SWITCH REED SPST-NO 500MA |
4,976 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 500mA (DC) | - | 100 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.646" (41.80mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -60°C ~ 125°C | 0.5 pF | 700mA (DC) |
|
|
AC051035SWITCH REED SPST-NO 500MA |
4,436 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 500mA (DC) | - | 100 V | 10W | 1 ms | 0.4 ms | Through Hole | Axial | 1.760" (44.70mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -60°C ~ 155°C | 0.7 pF | 700mA (DC) |
|
MK23-87-B-4SWITCH REED SPST-NO 400MA 200V |
2,253 | 0.91 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | Gull Wing | 0.646" (16.40mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | 0.094" (2.40mm) | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
MITI-3V1-6-10SWITCH REED SPST-NO 250MA |
4,957 | 0.00 |
|
Datasheet |
MITI-3V1 | Box | Obsolete | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 250mA (DC) | - | 170 V | 10W | 0.45 ms | 0.2 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|

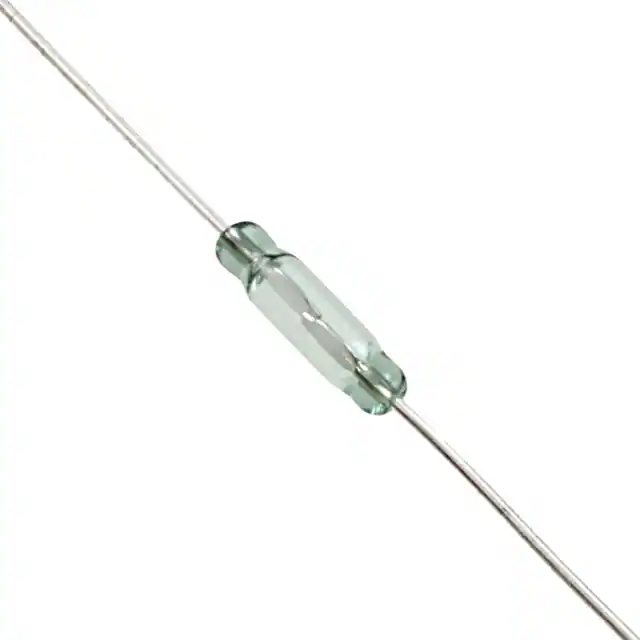

MITI-3V1-6-8SWITCH REED SPST-NO 250MA |
1,027 | 0.00 |
|
Datasheet |
MITI-3V1 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 6 ~ 8AT | - | 250mA (DC) | - | 170 V | 10W | 0.45 ms | 0.2 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

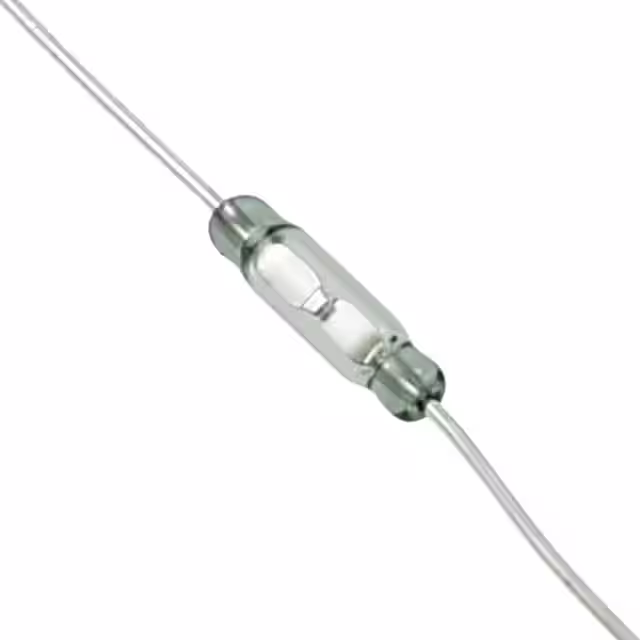

MITI-3V1-8-12.5SWITCH REED SPST-NO 250MA |
1,265 | 0.00 |
|
Datasheet |
MITI-3V1 | Box | Obsolete | Glass Body Reed | SPST-NO | 8 ~ 12AT | - | 250mA (DC) | - | 170 V | 10W | 0.45 ms | 0.2 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
FR2282SWITCH REED SPST-NO 500MA 200V |
2,242 | 0.00 |
|
Datasheet |
FR2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 30AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | 0.080" (2.03mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|

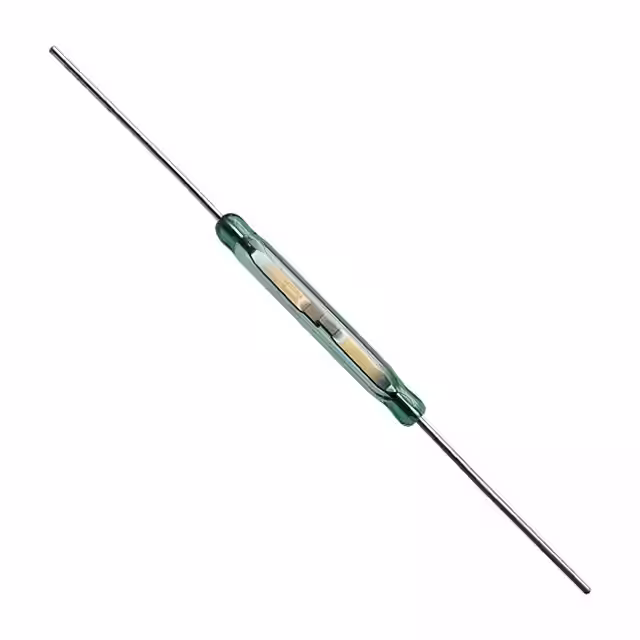

KSK-1A52-2025SWITCH REED SPST-NO 500MA 350V |
2,417 | 1.53 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 350 V | 350 V | 50W | 1.1 ms | 0.1 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | -40°C ~ 130°C | 0.5 pF | 2.5A (AC/DC) |
|
KSK-1A52-3040SWITCH REED SPST-NO 500MA 350V |
4,358 | 1.53 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 40AT | - | 500mA (AC/DC) | 350 V | 350 V | 50W | 1.1 ms | 0.1 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | -40°C ~ 130°C | 0.5 pF | 2.5A (AC/DC) |
|
MDSM-10R-15-20SWITCH REED SPST-NO 350MA 140V |
3,876 | 1.82 |
|
Datasheet |
MDSM-10 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
59166-1-U-00-ASWITCH REED SPST-NO 350MA 140V |
1,542 | 0.00 |
|
Datasheet |
59166 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MK23-85-D-2SWITCH REED SPST-NO 1A 1000V |
1,636 | 0.00 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 1A (AC/DC) | 1000 V | 1000 V | 100W | 1.1 ms | 0.1 ms | Surface Mount | Gull Wing | 1.154" (29.30mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | 0.112" (2.85mm) | -40°C ~ 130°C | 0.5 pF | 2.5A (AC/DC) |
