Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MISM-7B5-8-12.5SWITCH REED SPST-NO 180MA 120V |
3,181 | 1.48 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 8 ~ 12AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 0.45 ms | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7B5-10-15SWITCH REED SPST-NO 180MA 120V |
1,245 | 1.48 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 0.45 ms | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

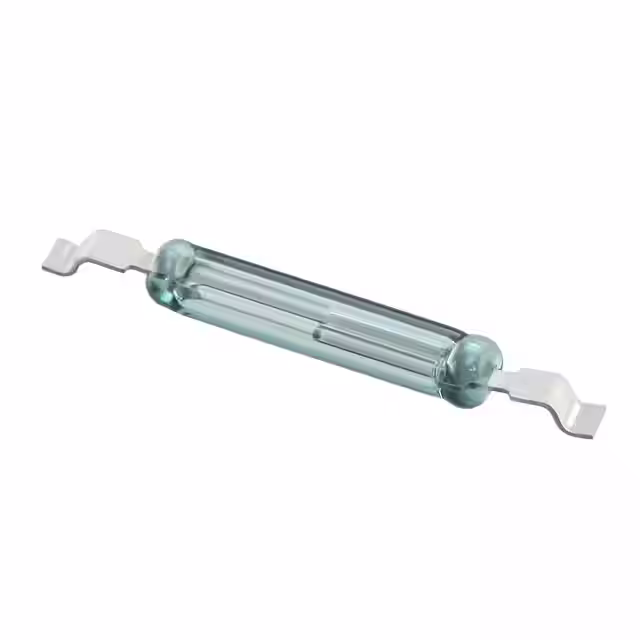

MK23-35-D-2SWITCH REED SPST-NO 1A 200V |
3,684 | 0.73 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.620" (15.75mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | 0.077" (1.95mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|

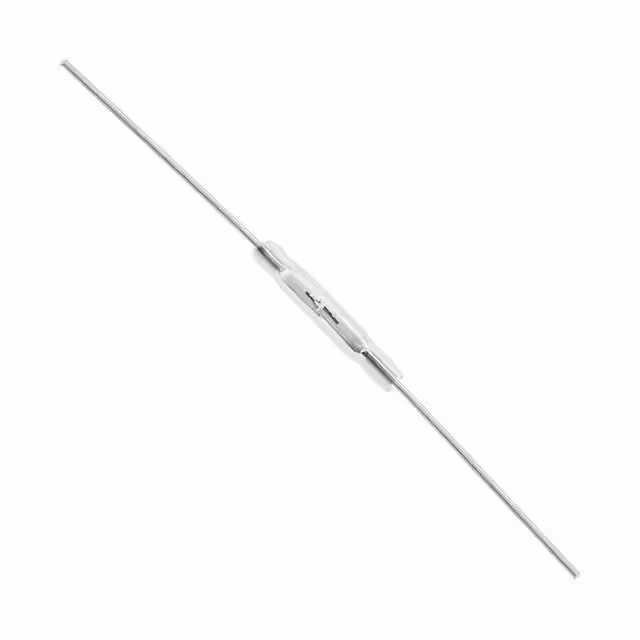

SW PR560/25-30 ATSWITCH REED SPST-NO 1A 250V |
1,683 | 1.00 |
|
- |
PR560 | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | 6 ~ 21AT | 1A (AC/DC) | 250 V | 250 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|
SW PR560/30-35 ATSWITCH REED SPST-NO 1A 250V |
4,364 | 1.00 |
|
- |
PR560 | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 6 ~ 21AT | 1A (AC/DC) | 250 V | 250 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|
|
MISM-7R-8-12.5SWITCH REED SPST-NO 180MA 120V |
3,770 | 1.52 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 8 ~ 12AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | - | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7R5-15-20SWITCH REED SPST-NO 180MA 120V |
4,761 | 0.00 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 200 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7R5-8-12.5SWITCH REED |
3,496 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MISM-7R5-10-15SWITCH REED SPST-NO 180MA 120V |
2,194 | 0.00 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 200 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7R5-6-10SWITCH REED SPST-NO 180MA 120V |
3,486 | 0.00 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 200 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
RI-60SMDM-1015-G1SWITCH REED SPST-NO 500MA 140V |
1,847 | 0.62 |
|
Datasheet |
RI-60SMDM | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 3AT | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.639" (16.23mm) | 0.452" L x 0.090" W x 0.090" H (11.48mm x 2.29mm x 2.29mm) | 0.107" (2.72mm) | -40°C ~ 125°C | 0.25 pF | 500mA (DC) |
|
MISM-7B-15-20SWITCH REED SPST-NO 180MA 120V |
1,780 | 1.48 |
|
Datasheet |
MISM-7 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7B-10-15SWITCH REED SPST-NO 180MA 120V |
2,356 | 1.48 |
|
Datasheet |
MISM-7 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7B-6-10SWITCH REED SPST-NO 180MA 120V |
1,441 | 1.62 |
|
Datasheet |
MISM-7 | Bulk | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
RI-80SMD-0510-FLSWITCH REED SPST-NO 250MA 140V |
3,139 | 0.90 |
|
Datasheet |
RI-80 SMD-FL | Bulk | Active | Glass Body Reed | SPST-NO | 5 ~ 10AT | 2 ~ 8AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Axial, Flat | 1.811" (46.00mm) | - | - | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
RI-80SMD-1015-FLSWITCH REED SPST-NO 250MA 140V |
2,371 | 0.90 |
|
Datasheet |
RI-80 SMD-FL | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Axial, Flat | 1.811" (46.00mm) | - | - | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
MK06-7-CSWITCH REED SPST-NO 500MA 200V |
1,438 | 1.26 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.779" (19.79mm) | 0.779" L x 0.130" W x 0.165" H (19.79mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|
MITI-3V1-6-12.5SWITCH REED SPST-NO 250MA |
3,078 | 0.00 |
|
Datasheet |
MITI-3V1 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 6 ~ 12AT | - | 250mA (DC) | - | 170 V | 10W | 0.45 ms | 0.2 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

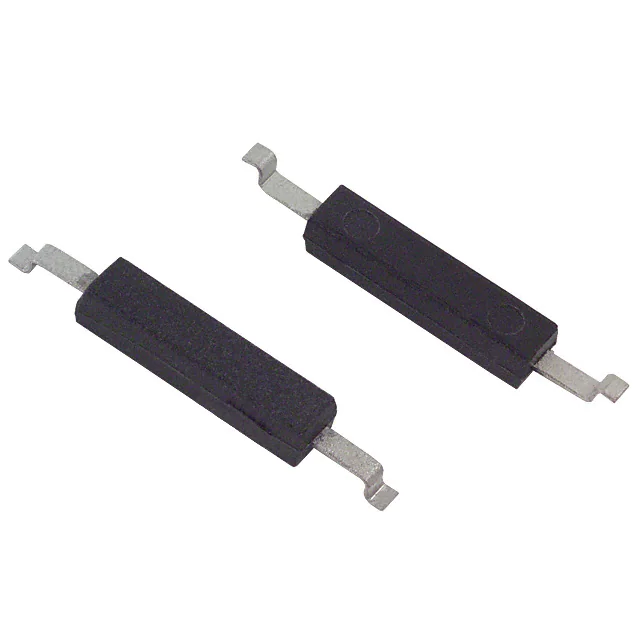

MK22-B-4SWITCH REED SPST-NO 1A 200V |
2,077 | 0.83 |
|
Datasheet |
MK22 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 200 V | 200 V | 20W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.768" (19.50mm) | 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm) | 0.094" (2.40mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
|
HA15-2-12-23SWITCH REED SPST-NO 300MA 265V |
4,152 | 1.33 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 23AT | - | 300mA (AC), 400mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.4A (DC) |
