Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MITI-3-16-21SWITCH REED SPST-NO 250MA |
3,189 | 0.00 |
|
Datasheet |
MITI-3 | Bulk | Active | Glass Body Reed | SPST-NO | 16 ~ 21AT | - | 250mA (DC) | - | 100 V | 3W | 0.35 ms | 0.1 ms | Through Hole | Axial | 1.230" (31.24mm) | 0.072" Dia x 0.270" L (1.82mm x 6.86mm) | - | -40°C ~ 100°C | 0.2 pF | 500mA (DC) |
|
MLRR-3-10-15SWITCH REED SPST-NO 700MA 140V |
2,154 | 0.00 |
|
Datasheet |
MLRR-3 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
|
MLRR-2-17-28SWITCH REED SPST-NO 1A |
4,207 | 0.00 |
|
Datasheet |
MLRR-2 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 1A (DC) | - | 200 V | 20W | 0.8 ms | 0.25 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.750" L (2.66mm x 19.05mm) | - | -40°C ~ 100°C | 0.2 pF | 500mA (DC) |
|
RI-46ITSWITCH REED SPST-NO 1A |
1,570 | 0.00 |
|
Datasheet |
RI-46 | Bulk | Obsolete | Glass Body Reed | SPST-NO | - | - | - | - | - | - | - | - | Through Hole | Axial | - | - | - | - | - | - |
|
RI-90GP1030SWITCH REED SPDT 280MA 125V |
2,232 | 0.00 |
|
Datasheet |
RI-90 | Bulk | Obsolete | Glass Body Reed | SPDT | 10 ~ 30AT | - | 280mA (AC), 400mA (DC) | 125 V | 175 V | 5W | 1 ms | 1 ms | Through Hole | Axial | 1.988" (50.50mm) | 0.100" Dia x 0.563" L (2.54mm x 14.30mm) | - | -55°C ~ 125°C | 0.8 pF | 500mA (DC) |
|
RI-80GP0515SWITCH REED SPST-NO 250MA 140V |
1,450 | 0.00 |
|
Datasheet |
RI-80 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 5 ~ 15AT | 2 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 200 V | 5W | 0.35 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | - | -55°C ~ 125°C | 0.45 pF | 500mA (AC/DC) |
|

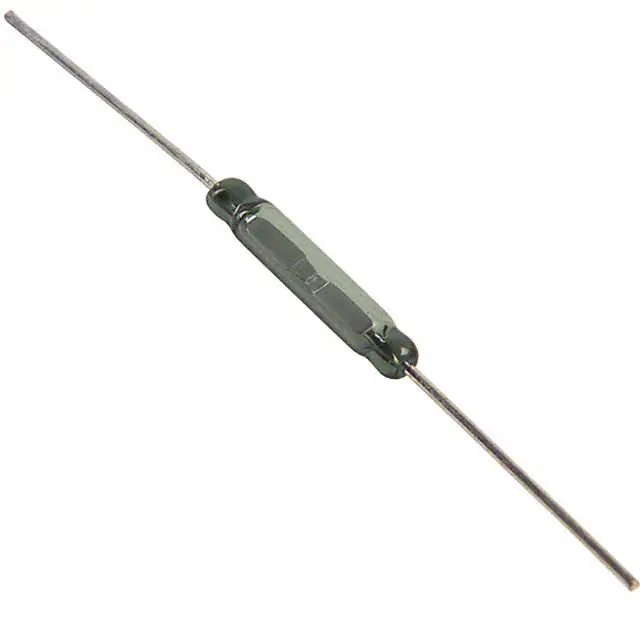

RI-01BAASWITCH REED SPST-NO 500MA 140V |
3,555 | 0.00 |
|
Datasheet |
RI-01B | Bulk | Obsolete | Glass Body Reed | SPST-NO | 14 ~ 23AT | 4 ~ 21AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.3 pF | 1A (DC) |
|

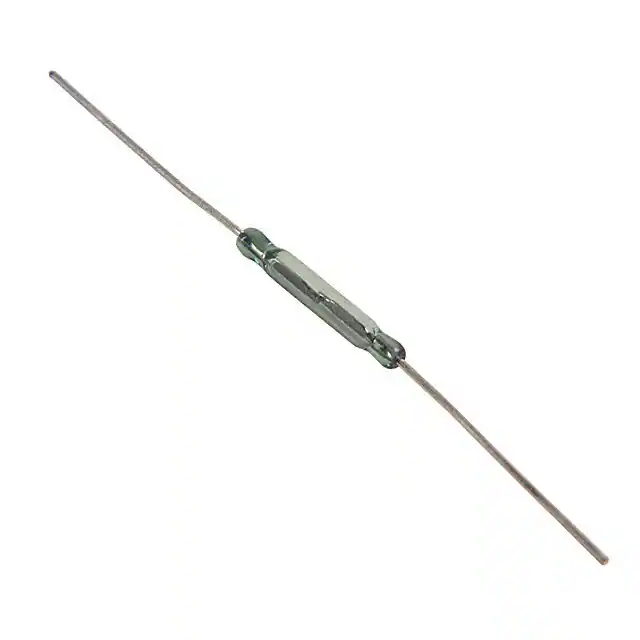

RI-01CASWITCH REED SPST-NO 500MA 140V |
4,425 | 0.00 |
|
Datasheet |
RI-01C | Bulk | Obsolete | Glass Body Reed | SPST-NO | 16 ~ 25AT | 4 ~ 18AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.35 ms | 0.05 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.25 pF | 1A (DC) |
|
RI-02ASWITCH REED SPST-NO 500MA 140V |
2,459 | 0.00 |
|
Datasheet |
RI-02 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 7 ~ 21AT | 3 ~ 16AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.3 ms | 0.07 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -55°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
RI-03ASWITCH REED SPST-NO 500MA 140V |
2,021 | 0.00 |
|
- |
RI-03 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 18 ~ 32AT | 7 ~ 27AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|
|
RI-07AASWITCH REED SPST-NO 500MA 140V |
1,729 | 0.00 |
|
Datasheet |
RI-07 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 16 ~ 25AT | 4 ~ 18AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.75A (DC) |
|
KSK-1A85-2030SWITCH REED SPST-NO 1A 1000V |
1,583 | 0.00 |
|
Datasheet |
KSK | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 1A (AC/DC) | 1000 V | 1000 V | 100W | 1.1 ms | 0.1 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | -40°C ~ 130°C | 0.5 pF | 2.5A (AC/DC) |
|
MARR-5-Q489-2SWITCH REED SPST-NO 350MA 265V |
1,730 | 0.00 |
|
Datasheet |
MARR-5 | Bulk | Obsolete | Glass Body Reed | SPST-NO | - | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
59165-1-S-00-BSWITCH REED SPST-NO 350MA 140V |
2,901 | 0.00 |
|
Datasheet |
59165 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.095" (2.41mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
DRR-129-67-73SWITCH REED SPST-NO 2.1A 280V |
4,315 | 0.00 |
|
Datasheet |
DRR-129 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 67 ~ 73AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-77-83SWITCH REED SPST-NO 2.1A 280V |
3,872 | 0.00 |
|
Datasheet |
DRR-129 | Box | Obsolete | Glass Body Reed | SPST-NO | 77 ~ 83AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-87-93SWITCH REED SPST-NO 2.1A 280V |
1,418 | 0.00 |
|
Datasheet |
DRR-129 | Box | Obsolete | Glass Body Reed | SPST-NO | 87 ~ 93AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|

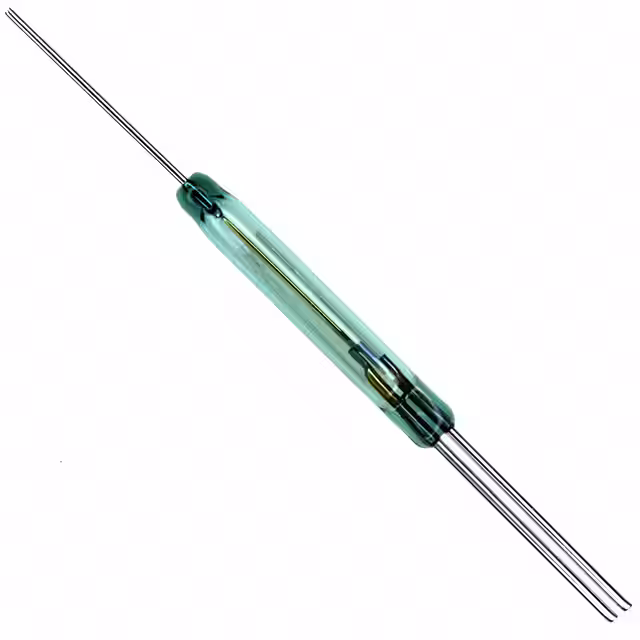

DRR-DTH-40-45SWITCH REED SPDT 350MA 350V |
2,471 | 0.00 |
|
Datasheet |
DRR-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 40 ~ 45AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
DRR-DTH-45-50SWITCH REED SPDT 350MA 350V |
3,104 | 0.00 |
|
Datasheet |
DRR-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 45 ~ 50AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|

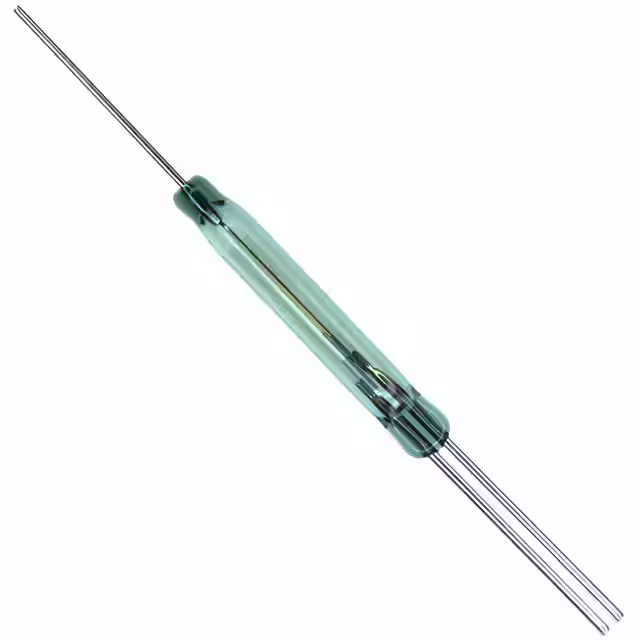

DRR-DTH-65-70SWITCH REED SPDT 350MA 350V |
3,107 | 0.00 |
|
Datasheet |
DRR-DTH | Box | Obsolete | Glass Body Reed | SPDT | 65 ~ 70AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
