Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

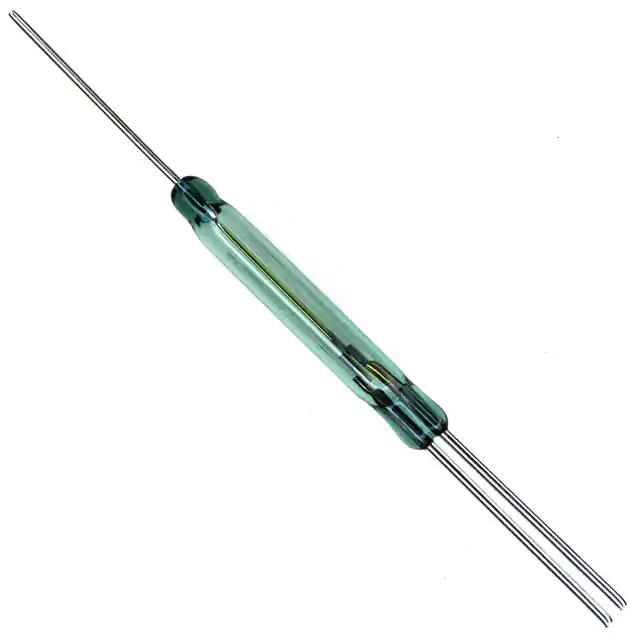

DRR-DTH-85-90SWITCH REED SPDT 350MA 350V |
1,222 | 0.00 |
|
Datasheet |
DRR-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 85 ~ 90AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|

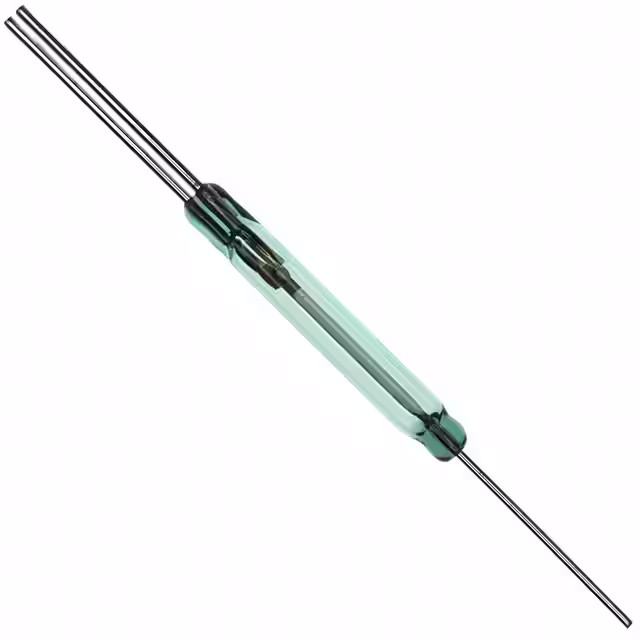

DRT-DTH-70-75SWITCH REED SPDT 1A 350V |
3,790 | 0.00 |
|
Datasheet |
DRT-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 70 ~ 75AT | - | 1A (AC), 1.5A (DC) | 350 V | 500 V | 50W | 5.5 ms | 8 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 2A (DC) |
|
MARR-5-32-38SWITCH REED SPST-NO 350MA 265V |
2,283 | 0.00 |
|
Datasheet |
MARR-5 | Box | Obsolete | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
MRPR-3-37-43SWITCH REED SPST-NO 1.1A 140V |
3,045 | 0.00 |
|
Datasheet |
MRPR-3 | Box | Obsolete | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|

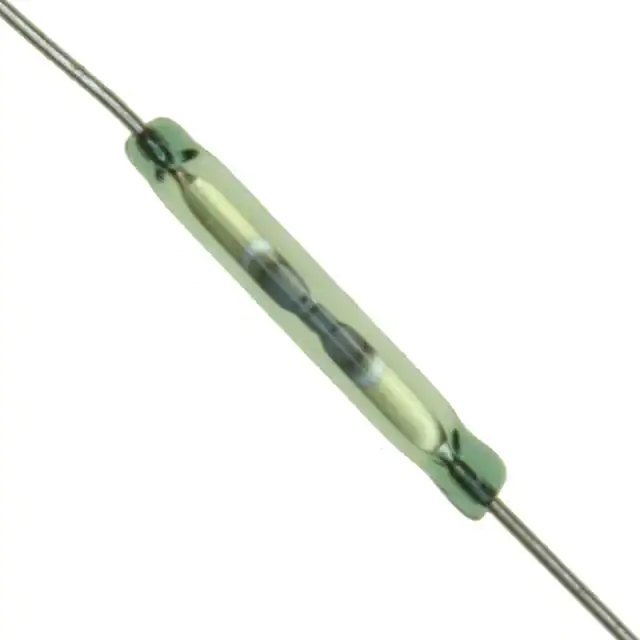

MRPR-8-17-23SWITCH REED SPST-NO 700MA 265V |
3,379 | 0.00 |
|
Datasheet |
MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|

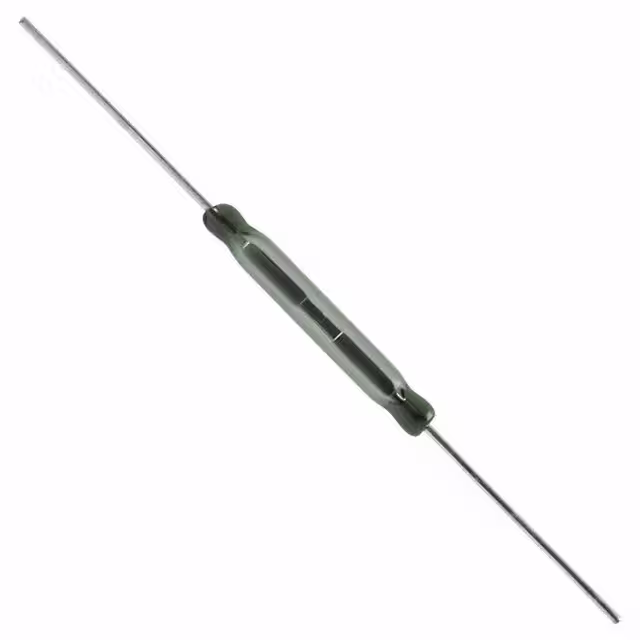

RI-08ASWITCH REED SPST-NO 1A 200V |
2,758 | 0.00 |
|
Datasheet |
RI-08 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 28AT | 5 ~ 16AT | 1A (AC/DC) | 200 V | 200 V | 30W | 0.35 ms | 0.03 ms | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | - | -55°C ~ 125°C | 0.2 pF | 2.25A (DC) |
|

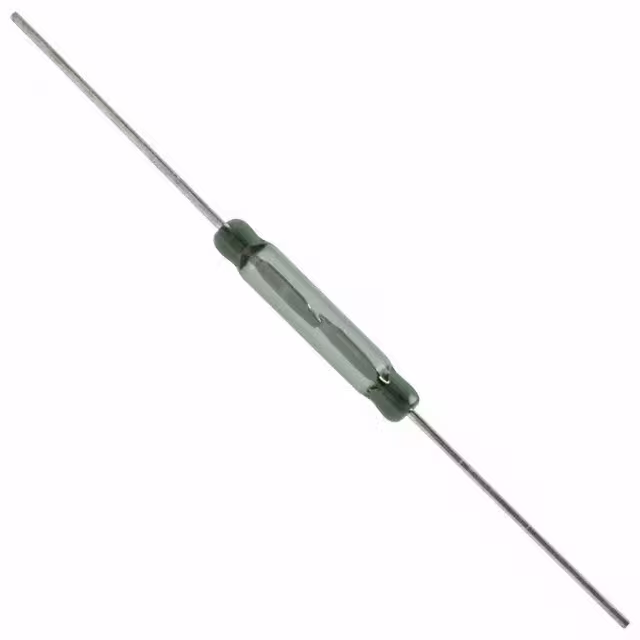

RI-21ASWITCH REED SPST-NO 500MA 250V |
2,656 | 0.00 |
|
Datasheet |
RI-21 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 18 ~ 32AT | 8 ~ 22AT | 500mA (AC/DC) | 250 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (AC/DC) |
|

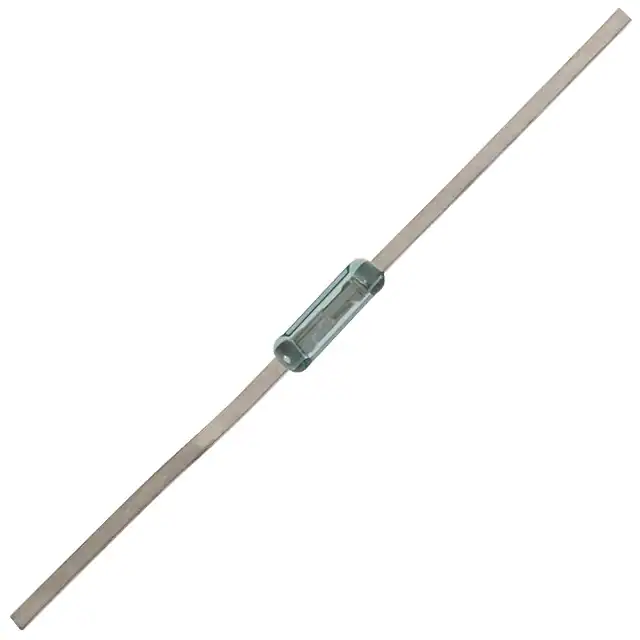

UM2S1015SWITCH REED SPST-NO 250MA 175V |
4,006 | 0.00 |
|
Datasheet |
UM2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Axial, Flat | 1.355" (34.42mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|
|
UM2S2025SWITCH REED SPST-NO 250MA 175V |
3,064 | 0.00 |
|
Datasheet |
UM2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Axial, Flat | 1.355" (34.42mm) | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|

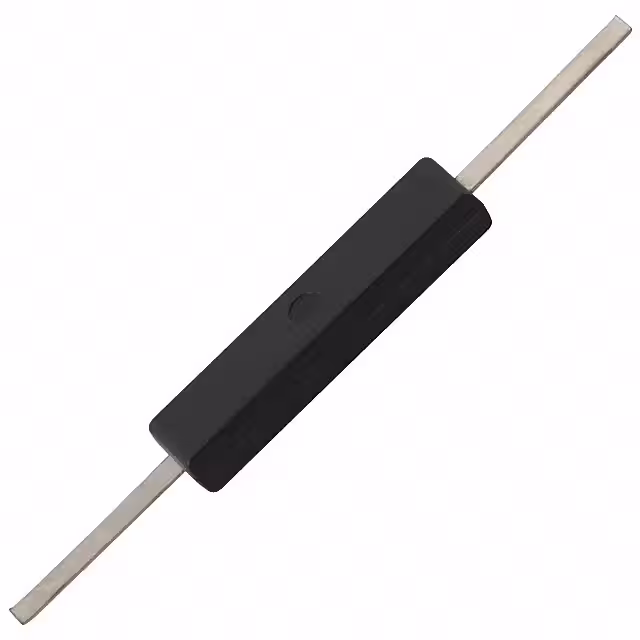

CM15S1015SWITCH REED SPST-NO 500MA 200V |
2,301 | 0.00 |
|
Datasheet |
CM15S | Bulk | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
CM15S1020SWITCH REED SPST-NO 500MA 200V |
1,315 | 0.00 |
|
Datasheet |
CM15S | Bulk | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
CM15S1520SWITCH REED SPST-NO 500MA 200V |
2,671 | 0.00 |
|
Datasheet |
CM15S | Bulk | Obsolete | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
CM15S2025SWITCH REED SPST-NO 500MA 200V |
4,410 | 0.00 |
|
Datasheet |
CM15S | Bulk | Obsolete | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|

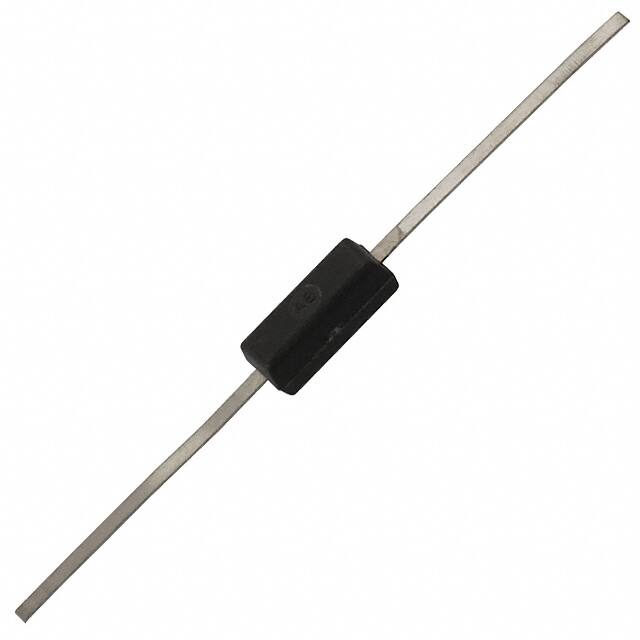

CM5S1015SWITCH REED SPST-NO 250MA 175V |
1,036 | 0.00 |
|
Datasheet |
CM5S | Bulk | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC/DC) | 175 V | 175 V | 5VA | 0.4 ms | 0.1 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.265" L x 0.115" W x 0.094" H (6.73mm x 2.92mm x 2.40mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (AC/DC) |
|

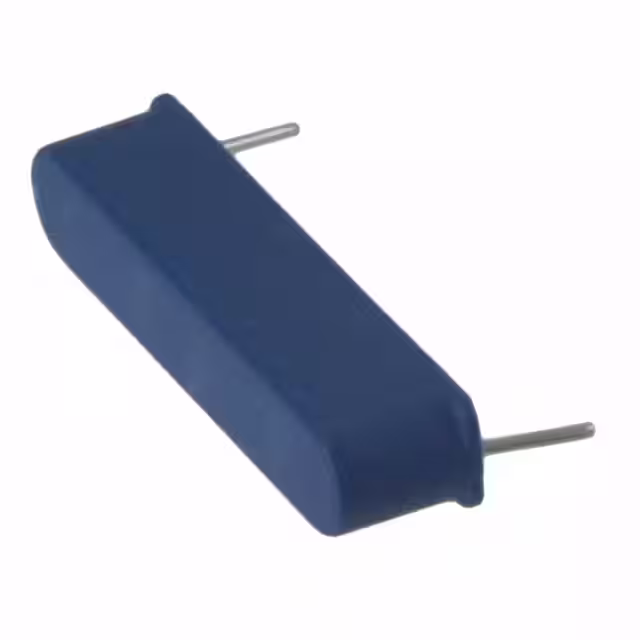

MK06-6-ESWITCH REED SPST-NO 400MA 200V |
2,954 | 0.00 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 25 ~ 30AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.679" (17.25mm) | 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.2 pF | 500mA (AC/DC) |
|
DRR-129-0-37SWITCH REED SPST-NO 2.1A 280V |
2,661 | 0.00 |
|
Datasheet |
DRR-129 | Bulk | Active | Glass Body Reed | SPST-NO | 0 ~ 37AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-102-108SWITCH REED SPST-NO 2.1A 280V |
3,443 | 0.00 |
|
Datasheet |
DRR-129 | Bulk | Active | Glass Body Reed | SPST-NO | 102 ~ 108AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-107-113SWITCH REED SPST-NO 2.1A 280V |
4,232 | 0.00 |
|
Datasheet |
DRR-129 | Bulk | Active | Glass Body Reed | SPST-NO | 107 ~ 113AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-117-123SWITCH REED SPST-NO 2.1A 280V |
1,833 | 0.00 |
|
Datasheet |
DRR-129 | Bulk | Active | Glass Body Reed | SPST-NO | 117 ~ 123AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-42-53SWITCH REED SPST-NO 2.1A 280V |
3,470 | 0.00 |
|
Datasheet |
DRR-129 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 53AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
