Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

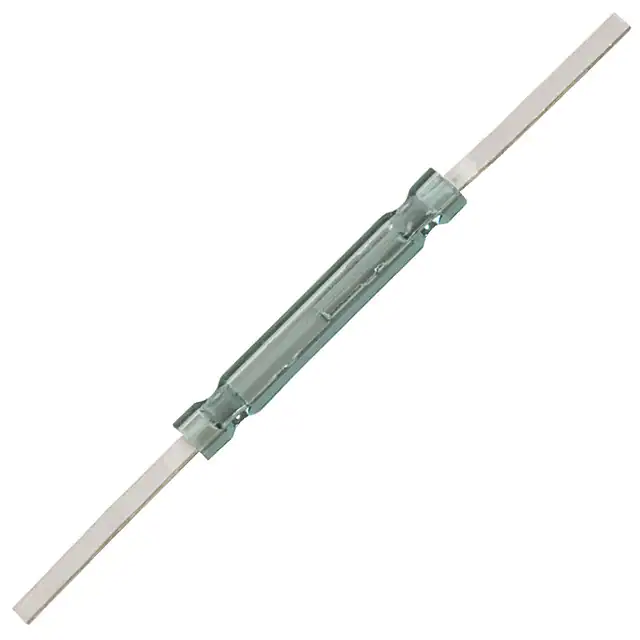

FR2S1015SWITCH REED SPST-NO 500MA 200V |
4,316 | 0.00 |
|
Datasheet |
FR2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | 5 ~ 15AT | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
FR2S1020SWITCH REED SPST-NO 500MA 200V |
1,154 | 0.00 |
|
Datasheet |
FR2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 20AT | 5 ~ 20AT | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
FR2S1520SWITCH REED SPST-NO 500MA 200V |
3,821 | 0.00 |
|
Datasheet |
FR2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 20AT | 5 ~ 20AT | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
FR2S1525SWITCH REED SPST-NO 500MA 200V |
2,644 | 0.00 |
|
Datasheet |
FR2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 25AT | 5 ~ 25AT | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
FR2S2025SWITCH REED SPST-NO 500MA 200V |
4,758 | 0.00 |
|
Datasheet |
FR2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | 5 ~ 25AT | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
FR2S2030SWITCH REED SPST-NO 500MA 200V |
2,858 | 0.00 |
|
Datasheet |
FR2 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 30AT | 5 ~ 30AT | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
DRR-DTH-75-80SWITCH REED SPDT 350MA 350V |
3,016 | 0.00 |
|
Datasheet |
DRR-DTH | Bulk | Obsolete | Glass Body Reed | SPDT | 75 ~ 80AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
MARR-5-17-23SWITCH REED SPST-NO 350MA 265V |
1,509 | 0.00 |
|
Datasheet |
MARR-5 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
MRPR-8-22-33SWITCH REED SPST-NO 700MA 265V |
1,494 | 0.00 |
|
Datasheet |
MRPR-8 | Box | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
RI-70CTASWITCH REED SPST-NO 500MA 120V |
1,947 | 0.00 |
|
Datasheet |
RI-70 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 7 ~ 14AT | - | 500mA (AC/DC) | 120 V | 170 V | 10W | 0.15 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -55°C ~ 125°C | 0.35 pF | 400mA (AC/DC) |
|
RI-27AAASWITCH REED SPST-NO 500MA 130V |
4,251 | 0.00 |
|
Datasheet |
RI-27 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 19AT | 4 ~ 16AT | 500mA (AC/DC) | 130 V | 180 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
RI-27AASWITCH REED SPST-NO 500MA 140V |
2,415 | 0.00 |
|
Datasheet |
RI-27 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 16 ~ 25AT | 5 ~ 18AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.75A (DC) |
|
|
RI-27ASWITCH REED SPST-NO 500MA 140V |
2,323 | 0.00 |
|
Datasheet |
RI-27 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 34AT | 7 ~ 19.5AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.25 pF | 1.75A (DC) |
|
|
RI-29AASWITCH REED SPST-NO 1A 140V |
3,370 | 0.00 |
|
Datasheet |
RI-29 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 16 ~ 25AT | 5 ~ 18AT | 1A (AC/DC) | 140 V | 200 V | 15W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 75°C | 0.3 pF | 1.25A (AC/DC) |
|
|
RI-29ASWITCH REED SPST-NO 1A 140V |
4,882 | 0.00 |
|
Datasheet |
RI-29 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 34AT | 7 ~ 19.5AT | 1A (AC/DC) | 140 V | 200 V | 20W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 75°C | 0.25 pF | 1.25A (AC/DC) |
|
RI-23AAASWITCH REED SPST-NO 250MA 140V |
1,301 | 0.00 |
|
Datasheet |
RI-23 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 8 ~ 16AT | 4 ~ 14AT | 250mA (AC/DC) | 140 V | 200 V | 10W | 0.1 ms | 0.07 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
RI-23AASWITCH REED SPST-NO 500MA 140V |
2,858 | 0.00 |
|
Datasheet |
RI-23 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 14 ~ 23AT | 7.5 ~ 17.5AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
RI-23ASWITCH REED SPST-NO 500MA 140V |
1,387 | 0.00 |
|
Datasheet |
RI-23 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 18 ~ 32AT | 8 ~ 22AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|
|
RI-23BSWITCH REED SPST-NO 500MA 140V |
1,364 | 0.00 |
|
Datasheet |
RI-23 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 28 ~ 52AT | 12 ~ 29AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|
|
RI-23CSWITCH REED SPST-NO 500MA 140V |
1,660 | 0.00 |
|
Datasheet |
RI-23 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 46 ~ 70AT | 16 ~ 32AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.75A (DC) |
