Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP2631(TP5,F)PHOTOCOUPLER |
4,798 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.JPG)
|
TLP2398(EOPTOISOLATOR PSH PULL 6MFSOP-5 |
3,383 | 0.00 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 15ns, 12ns | 1.5V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP250H(D4-LF5,F)OPTOCOUPLER 8DIP SMD GW |
1,524 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
TLP250H(LF5,F)OPTOCOUPLER 8DIP SMD GW |
4,473 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
TLP2631(MBS,F)PHOTOCOUPLER |
4,791 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP250H(D4-TP5,F)OPTOCOUPLER 8DIP SMD GW |
1,538 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
TLP2398(TPL,EOPTOISOLATOR PSH PULL 6MFSOP-5 |
4,318 | 0.00 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 15ns, 12ns | 1.5V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2118(F)PHOTOCOUPLER SO8 |
3,974 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VO2631-X016OPTOCOUPLER |
1,917 | 0.00 |
|
- |
- | 8-DIP (0.400", 10.16mm) | Bulk | Obsolete | 2 | 2/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
6N137SVMHIGH SPEED 10MBIT/S LOGIC GATE O |
4,666 | 1.89 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|

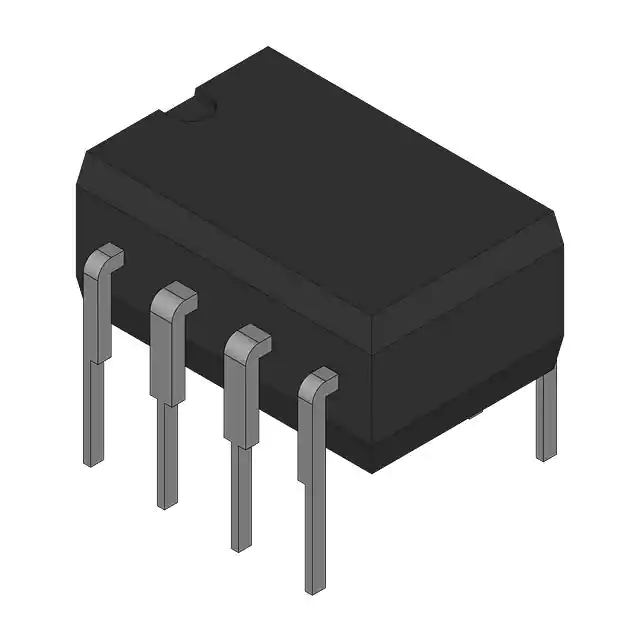

HCPL2631LOGIC IC OUTPUT OPTOCOUPLER, 2-E |
4,578 | 1.14 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL2611VMOPTOISO 2.5KV OPN COLLECTOR 8DIP |
3,891 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-PDIP |
|
|
TLP105(TPL,F)PHOTOCOUPLER |
4,723 | 0.00 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.57V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 5 Lead |
|
|
TLP9104(TOYOG-TL,FPHOTOCOUPLER |
2,943 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP2955F(F)PHOTOCOUPLER |
3,546 | 0.00 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 16ns, 14ns | 1.55V | 25mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
|
TLP754F(TP4,F)PHOTOCOUPLER |
3,899 | 0.00 |
|
- |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | 1Mbps | 550ns, 400ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
TLP2066(TPL,F)PHOTOCOUPLER |
3,861 | 0.00 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 60ns, 60ns | 5ns, 4ns | 1.6V | 25mA | 3V ~ 3.6V | - | - | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 5 Lead |
|
|
TLP754F(D4,F)PHOTOCOUPLER |
2,608 | 0.00 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | 1Mbps | 550ns, 400ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
|
TLP9104A(ND-TL,F)PHOTOCOUPLER |
4,456 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP718F(D4-TP,F)PHOTOCOUPLER |
1,457 | 0.00 |
|
- |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | - | 5Mbps | 250ns, 250ns | - | - | 3mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing |
