Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL2611SMOPTOCOUPLER LOGIC 8SMD |
4,126 | 0.83 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
TLP2630(TP1,F)PHOTOCOUPLER |
3,608 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP2200(LF1,F)PHOTOCOUPLER |
4,662 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TLP250HF(D4-TP4,F)OPTOCOUPLER 8DIP SMD GW |
3,488 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 5mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|

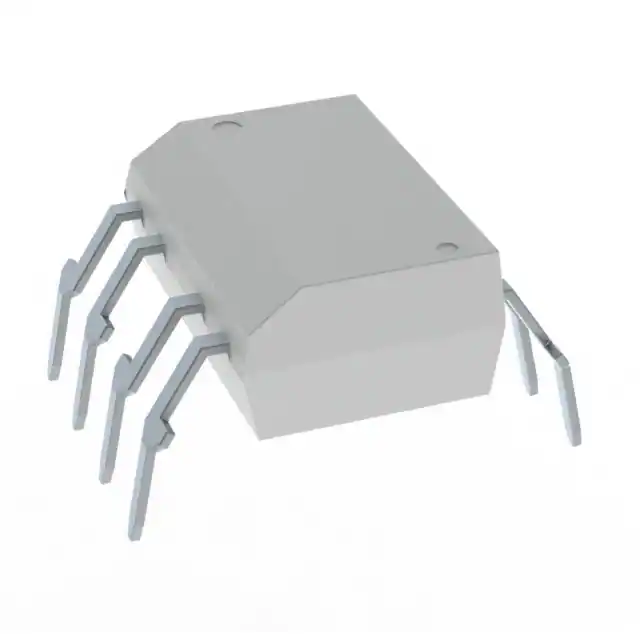

TLP250HF(F)OPTOCOUPLER 8DIP |
2,454 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 5mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
|
TLPN137(TP1,S)IC COUPLER HS LOGIC |
4,804 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP250HF(D4-LF4,F)OPTOCOUPLER 8DIP SMD GW |
3,660 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 5mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
TLP250H(TP5,F)OPTOCOUPLER 8DIP SMD GW |
2,889 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
TLP250HF(TP4,F)OPTOCOUPLER 8DIP |
2,466 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 5mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
.JPG)
|
TLP2395(TPL,EOPTOISOLATOR PSH PULL 6MFSOP-5 |
2,662 | 0.00 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 15ns, 12ns | 1.5V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP250HF(LF4,F)OPTOCOUPLER 8DIP |
4,915 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 5mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
TLP2768A(D4-TP,EOPTOISOLATOR SO6 |
3,586 | 0.00 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2745(EOPTOCOUPLER SO6 |
2,189 | 0.00 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 3ns, 3ns | 1.55V | 15mA | 4.5V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2631(LF1,F)PHOTOCOUPLER |
3,184 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP2768A(D4,EOPTOISOLATOR SO6 |
4,356 | 0.00 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP250HF(D4,F)OPTOCOUPLER 8DIP |
3,228 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 5mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
|
TLP2200(LF2,F)PHOTOCOUPLER |
2,073 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP5702(D4-TP,EOPTOCOUPLER DRIVER SO6 |
3,680 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2118(TP,F)PHOTOCOUPLER SO8 |
3,181 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP2095(TPL,F)PHOTOCOUPLER MFSOP |
3,868 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
