Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-0601OPTOISO 3.75KV OPN COLLECTOR 8SO |
2,746 | 3.52 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0600OPTOISO 3.75KV OPN COLLECTOR 8SO |
568 | 3.52 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACPL-4800-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
4,916 | 3.59 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 350ns, 350ns | 16ns, 20ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-061A-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
2,199 | 3.70 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACPL-W61L-060EOPTOISO 5KV PUSH PULL 6SO |
762 | 1.60 |
|
Datasheet |
- | 6-SOIC (0.180", 4.58mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
|
HCPL0637R2OPTOISO 3.75KV 2CH OPEN COLL 8SO |
3,048 | 3.91 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
.JPG)
|
TLX9310(TPL,FIC COUPLER; 5-PIN SO6; AECQ; ROH |
3,856 | 3.38 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5Mbps | 250ns, 250ns | 11ns, 13ns | 1.55V | 8mA | 2.7V ~ 5.5V | Automotive | AEC-Q101 | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
|
HCPL-2202-000EOPTOISO 3.75KV PUSH PULL 8DIP |
1,528 | 1.63 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2201-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
1,762 | 3.87 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-061N-000EOPTOISO 3.75KV OPN COLLECTOR 8SO |
830 | 1.66 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
TLX9378(TPL,FIC COUPLER; 4-PIN SO6; AECQ; ROH |
2,032 | 3.38 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10MBd | 100ns, 100ns | 90ns, 30ns | 1.75V (Max) | 25mA | 4.5V ~ 5.5V | Automotive | AEC-Q101 | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
HCNW4506-500EOPTOISO 5KV OPEN COLL 8DIP GW |
6,993 | 3.94 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2200-500EOPTOISO 3.75KV TRI-STATE SMD GW |
4,029 | 1.71 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 300ns, 300ns | 55ns, 15ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|

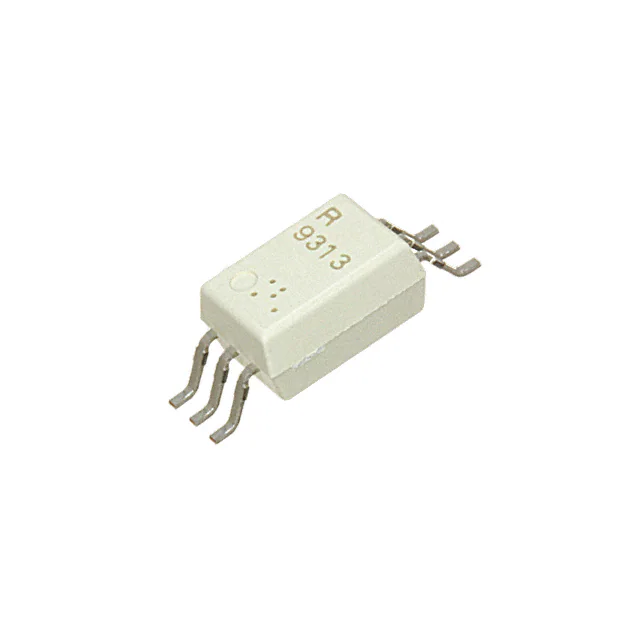

PS9313L-E3-AXHI-SPD OPTOCPLR 6PIN SDIP |
1,064 | 2.02 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
|
HCNW2601-300EOPTOISO 5KV OPEN COLL 8DIP GW |
816 | 1.71 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-W70L-000EOPTOISO 5KV PUSH PULL 6SSO |
1,018 | 4.05 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SSO |
|
|
TLX9376(TPL,FOPTOISO 3750VRMS 1CH LOGIC 6SO |
3,811 | 3.38 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 2ns, 2ns | 1.57V | 25mA | 4.5V ~ 5.5V | Automotive | AEC-Q101 | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
HCPL-2200OPTOISO 3.75KV TRI-STATE 8DIP |
964 | 2.50 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 300ns, 300ns | 55ns, 15ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
ACPL-P484-000EOPTOISO 3.75KV PUSH PULL 6SO |
4,351 | 4.25 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 150ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
|
|
HCPL062NOPTOISO 2.5KV 2CH OPEN COLL 8SO |
3,249 | 4.51 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Open Collector | 15 mA | 10Mbps | 90ns, 75ns | 16ns, 4ns | 1.75V (Max) | 50mA | 2.7V ~ 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
