Logic Output Optoisolators

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
HCPL-2232 OPTOISO 3.75KV 2CH PSH PULL 8DIP Broadcom Limited	488	8.35	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	3750Vrms	10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
TLP2355(E X36 PB-F PHOTOCOUPLER SO6 ROHS B Toshiba Semiconductor and Storage	155	1.02	RFQ	Datasheet	-	6-SOIC (0.179", 4.55mm Width), 5 Leads	Tube	Active	1	1/0	3750Vrms	25kV/µs	DC	Push-Pull, Totem Pole	25 mA	-	250ns, 250ns	15ns, 12ns	1.55V	20mA	3V ~ 20V	-	-	-40°C ~ 125°C	Surface Mount	6-SO, 5 Lead
TLP2348(E HIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage	354	1.12	RFQ	Datasheet	-	6-SOIC (0.179", 4.55mm Width), 5 Leads	Tube	Active	1	1/0	3750Vrms	30kV/µs	DC	Push-Pull, Totem Pole	50 mA	10Mbps	120ns, 120ns	3ns, 3ns	1.55V	15mA	4.5V ~ 30V	-	-	-40°C ~ 110°C	Surface Mount	6-SO, 5 Lead
H11L3TVM OPTOISO 4.17KV OPN COLL 6DIP onsemi	621	1.25	RFQ	Datasheet	-	6-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.2V	30mA	3V ~ 15V	-	-	-40°C ~ 85°C	Through Hole	6-DIP
VOH1016AD-V OPTOISO 5KV OPEN COLLECTOR 6-DIP Vishay Semiconductor Opto Division	1,879	1.14	RFQ	Datasheet	-	6-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	50 mA	2MHz	2µs, 1.2µs	50ns, 40ns	1.1V	50mA	16V	-	-	-40°C ~ 100°C	Through Hole	6-DIP

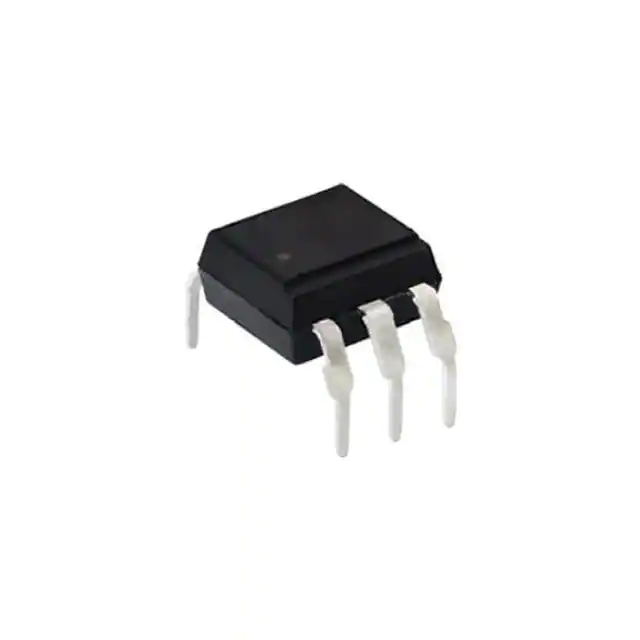

VOH1016AG-V OPTOISO 5KV OPEN COLLECTOR 6-DIP Vishay Semiconductor Opto Division	706	1.14	RFQ	Datasheet	-	6-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	50 mA	2MHz	2µs, 1.2µs	50ns, 40ns	1.1V	50mA	16V	-	-	-40°C ~ 100°C	Through Hole	6-DIP
H11L3SM OPTOISO 4.17KV OPN COLL 6SMD onsemi	539	1.23	RFQ	Datasheet	-	6-SMD, Gull Wing	Tube	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.2V	30mA	3V ~ 15V	-	-	-40°C ~ 85°C	Surface Mount	6-SMD
TLP5701(D4,E X36 PB-F DRIVER COUPLER 0.6A SO6 Toshiba Semiconductor and Storage	500	1.26	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tube	Active	1	1/0	5000Vrms	20kV/µs	DC	Push-Pull, Totem Pole	600 mA	-	500ns, 500ns	50ns, 50ns	1.57V	25mA	10V ~ 30V	-	-	-40°C ~ 110°C	Surface Mount	6-SO
H11L3SR2M OPTOISO 4.17KV OPN COLL 6SMD onsemi	1,458	1.40	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.2V	30mA	3V ~ 15V	-	-	-40°C ~ 85°C	Surface Mount	6-SMD
H11L2TVM OPTOISO 4.17KV OPN COLL 6DIP onsemi	1,600	1.49	RFQ	Datasheet	-	6-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.2V	30mA	3V ~ 15V	-	-	-40°C ~ 85°C	Through Hole	6-DIP
H11L2SM OPTOISO 4.17KV OPN COLL 6SMD onsemi	939	1.59	RFQ	Datasheet	-	6-SMD, Gull Wing	Tube	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.2V	30mA	3V ~ 15V	-	-	-40°C ~ 85°C	Surface Mount	6-SMD
H11L1-V OPTOISO 5KV OPEN COLLECTOR 6DIP Everlight Electronics Co Ltd	104	1.05	RFQ	Datasheet	-	6-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Through Hole	6-DIP
TLP2710(E HI SPEED LOGIC OUTPUT OPTOCOUPLE Toshiba Semiconductor and Storage	235	1.60	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tube	Active	1	1/0	5000Vrms	25kV/µs	DC	Push-Pull, Totem Pole	10 mA	5MBd	250ns, 250ns	11ns, 13ns	1.9V (Max)	8mA	2.7V ~ 5.5V	-	-	-40°C ~ 125°C	Surface Mount	6-SO
TLP5702H(D4-TP,E GATE DRIVE COUPLER; HIGH TEMP; R Toshiba Semiconductor and Storage	4,232	1.71	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	1	1/0	5000Vrms	50kV/µs	DC	Push-Pull, Totem Pole	-	-	200ns, 200ns	37ns, 50ns	1.55V	20mA	15V ~ 30V	-	-	-40°C ~ 125°C	Surface Mount	6-SO
6N137TSVM OPTOISO 5KV 1CH OPEN COLL 8SMD onsemi	655	1.75	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	1	1/0	5000Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	30ns, 10ns	1.45V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 100°C	Surface Mount	8-SMD
H11L1S1(TA)-V OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	1,151	1.11	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
TLP2719(TP4,E OPTOCOUPLER HI SPEED LOGIC OUTPU Toshiba Semiconductor and Storage	6,191	1.75	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	8 mA	1MBd	800ns, 800ns	-	1.6V	25mA	4.5V ~ 20V	-	-	-40°C ~ 100°C	Surface Mount	6-SO
6N137S1(TA) OPTOISO 5KV 1CH OPEN COLL 8SMD Everlight Electronics Co Ltd	335	0.95	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	40ns, 10ns	1.4V	50mA	7V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD
TLP5705H(D4-TP,E GATE DRIVE COUPLER; HIGH TEMP; R Toshiba Semiconductor and Storage	754	1.91	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	1	1/0	5000Vrms	50kV/µs	DC	Push-Pull, Totem Pole	-	-	200ns, 200ns	37ns, 50ns	1.55V	20mA	15V ~ 30V	-	-	-40°C ~ 125°C	Surface Mount	6-SO
6N137TVM OPTOISO 5KV 1CH OPEN COLL 8DIP onsemi	500	1.81	RFQ	Datasheet	-	8-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	5000Vrms	10kV/µs (Typ)	DC	Open Collector, Schottky Clamped	50 mA	10Mbps	75ns, 75ns	30ns, 10ns	1.45V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 100°C	Through Hole	8-MDIP

Total 2459 Record«Prev 1... 15 16 17 181920 21 22...123 Next»
