Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LV8161MUTAGIC HALF BRIDGE DRVR 700MA 10UDFN |
1,040 | 0.51 |
|
Datasheet |
- | 10-UFDFN | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 700mA | - | 2.2V ~ 6V | 2.2V ~ 6V | -30°C ~ 95°C (TA) | - | - | Auto Restart | Over Temperature | Surface Mount | 10-UDFN (2.5x2) |
|
TND315S-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
4,568 | 0.51 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 8Ohm HS | - | 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
TDA21102IC HALF BRIDGE DRIVER DSO14-3 |
2,719 | 0.55 |
|
Datasheet |
CoreControl™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC-DC Converters | PWM | Inductive | Power MOSFET | 1.4Ohm LS, 1Ohm HS | - | 4A | 10.8V ~ 13.2V | 5V ~ 13.2V | -25°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-DSO-14-3 |
|
LA6584JA-AHIC HALF BRIDGE DRVR 1.2A 20SSOP |
2,893 | 0.00 |
|
- |
- | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.2A | - | 2.8V ~ 14V | 2.8V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | - | Surface Mount | 20-SSOP |
|
|
TND314S-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
1,306 | 0.60 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 8Ohm HS | - | 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
LA6595T-TLM-EIC HALF BRIDGE DRVR 500MA 8MSOP |
4,854 | 0.61 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | Over Temperature | Surface Mount | 8-MSOP |
|
LA6595T-TLM-E-SYIC HALF BRIDGE DRVR 500MA 8MSOP |
2,000 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LA6587FA-BHIC HALF BRIDGE DRV 600MA 10MICRO |
3,351 | 0.66 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 600mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | Auto Restart | Over Temperature | Surface Mount | 10-Micro |
|
|
LA6681MC-AHIC HALF BRIDGE DRIVER 1A 8SOIC |
1,192 | 0.68 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 2V ~ 7V | 2V ~ 7V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit | Surface Mount | 8-SOIC |
|
LA6588MC-AHIC HALF BRIDGE DRV 800MA 10MFPSK |
2,909 | 0.71 |
|
- |
- | 10-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 800mA | - | 8V ~ 26.4V | 8V ~ 26.4V | -30°C ~ 90°C (TA) | - | - | Auto Restart | Over Temperature, Short Circuit | Surface Mount | 10-MFPSK |
|
LB1836ML-TLM-EIC MOTOR DRIVER 14SOIC |
1,971 | 1.00 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LV8068V-MPB-HIC HALF BRIDGE DRVR 1.2A 16SSOP |
4,128 | 0.75 |
|
- |
- | 16-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | PWM | Inductive | Bi-CMOS | - | 1.2A | - | 6V ~ 16V | 6V ~ 16V | -40°C ~ 90°C (TA) | - | - | 5V Regulated Output, Status Flag | Current Limiting, Over Temperature | Surface Mount | 16-SSOP |
|
TND301S-TL-EIC HALF BRIDGE DRIVER 8SOP |
7,000 | 0.77 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Bulk | Obsolete | Half Bridge (2) | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive | Power MOSFET | 3Ohm LS, 4Ohm HS | - | 2A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOP |
|
|
TND303S-TL-EIC HALF BRIDGE DRIVER 8SOP |
4,000 | 0.77 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Bulk | Obsolete | Half Bridge (2) | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive | Power MOSFET | 3Ohm LS, 4Ohm HS | - | 2A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOP |
|
|
LB11668MC-AHIC HALF BRIDGE DRVR 400MA 10SOIC |
1,728 | 0.78 |
|
- |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 400mA | 800mA | 6.9V ~ 7.6V | 6.9V ~ 7.6V | -30°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 10-SOIC |
|

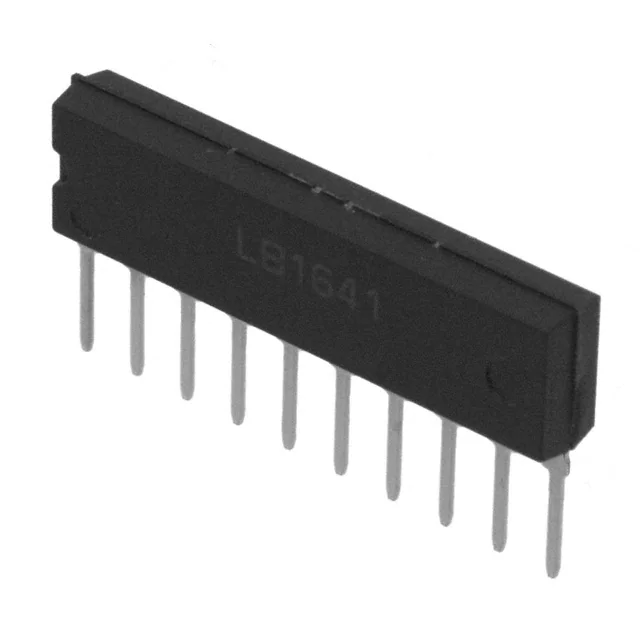

LB1641-EIC HALF BRIDGE DRIVER 1.6A 10SIP |
3,254 | 0.78 |
|
Datasheet |
- | 10-SIP | Box | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.6A | - | 5V ~ 18V, 7V ~ 18V | 5V ~ 18V, 7V ~ 18V | -25°C ~ 75°C (TA) | - | - | - | - | Through Hole | 10-SIP |
|
|
TND505MD-TL-EIC HALF BRIDGE DRIVER 16MFP |
9,000 | 0.80 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Bulk | Obsolete | Half Bridge (2) | AC Motors, Bulbs, DC Motors, General Purpose | Logic | Inductive, Capacitive, Resistive | Power MOSFET | - | - | 250mA, 500mA | 5V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 16-MFP |
|
LB1863M-TLM-HIC HALF BRIDGE DRVR 1.5A 14SOIC |
2,090 | 0.87 |
|
Datasheet |
- | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.5A | - | 6.4V ~ 7V | 24V | -30°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-SOIC/MFPS |
|
LA6584M-MPB-HIC HALF BRIDGE DRVR 1.6A MFP16FS |
3,686 | 0.86 |
|
- |
- | 16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.6A | - | 2.8V ~ 14V | 2.8V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | - | Surface Mount | 16-MFPFS |
|
|
NCP81081MNR2GIC HALF BRIDGE DRIVER 35A 40QFN |
3,159 | 0.92 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | 50A | 4.5V ~ 5.5V | 4.5V ~ 25V | 0°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
