Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR3742MTRPBFIC HALF BRIDGE DRIVER 20A 17QFN |
1,814 | 1.37 |
|
Datasheet |
PowIRstage® | 17-PowerVQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | 4mOhm LS, 8mOhm HS | 20A | - | 4.5V ~ 7.5V | 1V ~ 21V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 17-PQFN (5x6) |
|
LV8012T-MPB-EIC HALF BRIDGE DRVR 1.4A 24TSSOP |
1,844 | 1.39 |
|
Datasheet |
- | 24-TFSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 750mOhm | 1.4A | - | 2.7V ~ 5.5V | 2V ~ 7V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
FDMF6708NIC HALF BRIDGE DRIVER 50A 40PQFN |
14,390 | 1.40 |
|
Datasheet |
- | 40-TFQFN Exposed Pad | Bulk | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DMOS | 900mOhm LS, 800mOhm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
FDMF5839IC HALF BRIDGE DRIVER 35A 31PQFN |
18,000 | 1.41 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Bulk | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 650mOhm LS, 650mOhm HS | 35A | - | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
FDMF3032SWITCHING REGULATOR, SMART POWER |
6,000 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMF6705BIC HALF BRIDGE DRIVER 38A 40PQFN |
3,000 | 3.71 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 38A | - | 4.5V ~ 5.5V | 3V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
LV8068V-TLM-HIC BRIDGE DRIVER PWM SSOP-16 |
1,994 | 0.78 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ISL6571CR-TIC COMP MOSFET DRIVER 68QFN |
3,000 | 1.61 |
|
Datasheet |
- | 68-VFQFN Exposed Pad | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 68-QFN (10x10) |
|
|
ISL6571CRIC COMP MOSFET DRIVER 68QFN |
2,222 | 1.61 |
|
Datasheet |
- | 68-VFQFN Exposed Pad | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 68-QFN (10x10) |
|
|
LV8415CB-TE-L-HIC HALF BRIDGE DRVR 350MA 32WLP |
2,881 | 1.65 |
|
Datasheet |
- | 32-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Serial | Inductive | Bi-CMOS | 500mOhm LS, 700mOhm HS | 350mA | 600mA | 2.7V ~ 5.5V | 2.7V ~ 5.5V | -20°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 32-WLP (2.47x2.47) |
|
|
LV4970MC-AHIC HALF BRIDGE DRIVER |
10,000 | 1.66 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LB1939T-MPB-EIC HALF BRIDGE DRV 400MA 20TSSOP |
3,962 | 1.68 |
|
- |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 400mA | - | 1.9V ~ 6.5V | 1.6V ~ 7.5V | -20°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 20-TSSOP |
|
|
NCP303151AMNTWG50A IMON POWER STAGE DRMOS |
2,167 | 1.73 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | 4.5V ~ 5.5V | - | -40°C ~ 125°C (TA) | - | - | - | - | Surface Mount | 39-PQFN (5x6) |
|
AOZ5616BQI25V/55A DRMOS SMOD EN CONTROL TH |
3,000 | 2.03 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 55A | 120A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
LA6584M-TLM-HIC BRIDGE DRIVER ON/OFF MFP16FS |
1,939 | 1.92 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

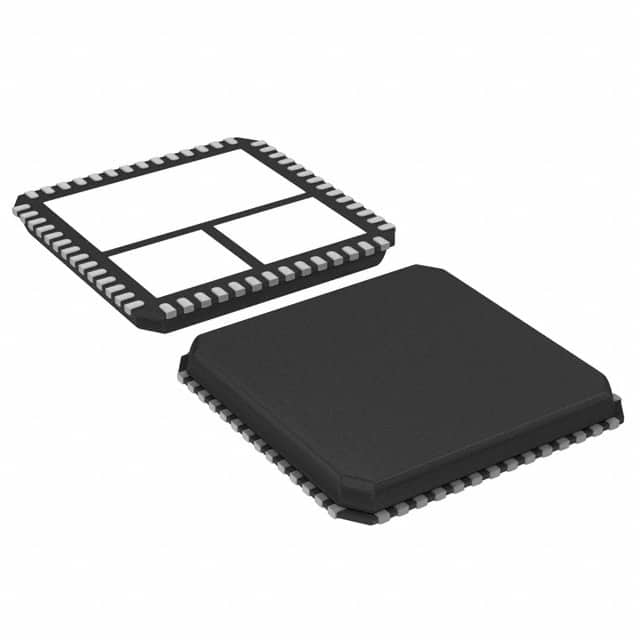

PIP213-12M,518IC HALF BRIDGE DRVR 25A 56HVQFN |
1,950 | 1.82 |
|
Datasheet |
- | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 3.8mOhm LS, 6.5mOhm HS | 25A | 40A | 3.3V ~ 16V | 24V (Max) | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, 5V Regulated Output | Over Temperature, UVLO | Surface Mount | 56-HVQFN (8x8) |
|
BTS7741GIC HALF BRIDGE DRIVER 7A PDSO28 |
500 | 1.88 |
|
Datasheet |
TrilithIC | 28-SOIC (0.295", 7.50mm Width) | Bulk | Active | Half Bridge (2) | DC Motors, General Purpose | - | Inductive | DMOS | 100mOhm LS, 110mOhm HS | 7A | 10A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Slew Rate Controlled, Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28 |
|
LB8649W-MPB-EIC HALF BRIDGE DRVR 600MA 48SQFP |
2,248 | 1.93 |
|
- |
- | 48-LQFP | Tray | Obsolete | Half Bridge (12) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 600mA | - | 1.9V ~ 10V | 1.9V ~ 10V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 48-SQFP (7x7) |
|
LB1843V-S-TRM-EIC HALF BRIDGE DRVR 800MA 20SSOP |
2,000 | 1.97 |
|
Datasheet |
- | 20-LSSOP (0.173", 4.40mm Width) | Bulk | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 800mA | - | 3V ~ 9V | 2.2V ~ 9V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 20-SSOP |
|
LV8548MCZ-AHIC HALF BRIDGE DRIVER 1A 10SOIC |
4,393 | 1.00 |
|
- |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | DMOS | 1Ohm | 1A | - | 4V ~ 16V | 4V ~ 16V | -30°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 10-SOIC |
