Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LV8011V-TLM-EIC HALF BRIDGE DRIVER 1A 20SSOP |
3,741 | 0.94 |
|
Datasheet |
- | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 370mOhm | 1A | 5A | 4.5V ~ 5.5V | 2V ~ 6.5V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 20-SSOP |
|
LB1837M-TLM-EIC HALF BRIDGE DRVR 250MA 14SOIC |
4,227 | 0.94 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 250mA | - | 3V ~ 9V | 3V ~ 9V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-SOIC/MFPS |
|
|
LB1837ML-TLM-EIC HALF BRIDGE DRVR 250MA 14SOIC |
4,912 | 0.94 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 250mA | - | 3V ~ 9V | 3V ~ 9V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-SOIC/MFPS |
|
|
LV8011V-TLM-EIC HALF BRIDGE DRIVER 1A 20SSOP |
4,000 | 0.94 |
|
Datasheet |
- | 20-LSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 370mOhm | 1A | 5A | 4.5V ~ 5.5V | 2V ~ 6.5V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 20-SSOP |
|
LB1837M-MPB-EIC HALF BRIDGE DRVR 250MA 14SOIC |
2,880 | 0.94 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 250mA | - | 3V ~ 9V | 3V ~ 9V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-SOIC/MFPS |
|
LV8011V-MPB-EIC HALF BRIDGE DRIVER 1A 20SSOP |
2,665 | 0.94 |
|
- |
- | 20-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 370mOhm | 1A | 5A | 4.5V ~ 5.5V | 2V ~ 6.5V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 20-SSOP |
|
|
LB1837M-MPB-EIC HALF BRIDGE DRVR 250MA 14SOIC |
538 | 0.94 |
|
Datasheet |
- | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 250mA | - | 3V ~ 9V | 3V ~ 9V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-SOIC / 14MFPS |
|
LB1846M-TLM-EBIDIRECTIONAL MOTOR DRIVER |
475 | 0.96 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LB1868-HMOTION CONTROL ELECTRONIC |
73,583 | 0.99 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LB1868-EMOTION CONTROL ELECTRONIC |
32,200 | 0.99 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

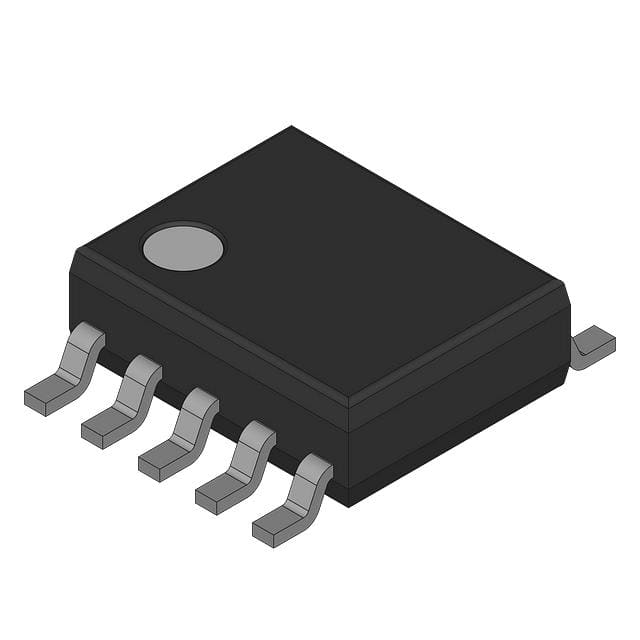

LB1846MC-AHIC HALF BRIDGE DRV 800MA 10MFPSK |
3,685 | 1.00 |
|
- |
- | 10-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 800mA | - | 2.5V ~ 7.5V | 2.5V ~ 7.5V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 10-MFPSK |
|
FDMF6821CIC HALF BRIDGE DRIVER 50A 40PQFN |
4,979 | 1.01 |
|
Datasheet |
- | 40-TFQFN Exposed Pad | Bulk | Active | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive | DrMOS | - | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
LA6585TFA-BHIC HALF BRIDGE DRVR 500MA 8MSOP |
1,429 | 1.00 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | Over Temperature | Surface Mount | 8-MSOP |
|
|
TND506MD-TL-EIC HALF BRIDGE DRIVER 16MFP |
309,000 | 1.06 |
|
- |
- | 16-SOIC (0.173", 4.40mm Width) | Bulk | Active | Half Bridge (2) | AC Motors, Bulbs, DC Motors, General Purpose | Logic | Inductive, Capacitive, Resistive | Power MOSFET | - | - | 250mA, 500mA | 5V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 16-MFP |
|
LV8548MC-AHIC HALF BRIDGE DRIVER 1A 10SOIC |
3,090 | 1.00 |
|
Datasheet |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | DMOS | 1Ohm | 1A | - | 4V ~ 16V | 4V ~ 16V | -30°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 10-SOIC |
|
NCP302055MNTWGIC GATE DRVR HALF BRD/LOW PQFN31 |
2,165 | 1.30 |
|
Datasheet |
- | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | - | 50A | - | 4.5V ~ 5.5V | 4.5V ~ 13.2V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
NCP5369NMNTXGIC HALF BRIDGE DRIVER 35A 40QFN |
4,555 | 1.26 |
|
- |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | 50A | 4.5V ~ 5.5V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-QFN (6x6) |
|
LV8401V-MPB-EIC HALF BRIDGE DRVR 1.2A 16SSOP |
3,279 | 1.33 |
|
Datasheet |
- | 16-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 330mOhm | 1.2A | 2A, 3.8A | 2.7V ~ 5.5V | 4V ~ 15V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 16-SSOP |
|
LB1940T-MPB-HIC HALF BRIDGE DRV 400MA 20TSSOP |
2,480 | 1.35 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 400mA | - | 1.9V ~ 6.5V | 1.6V ~ 7.5V | -20°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 20-TSSOP |
|
|
LB1940T-MPB-HIC HALF BRIDGE DRV 400MA 20TSSOP |
1,730 | 1.35 |
|
- |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 400mA | - | 1.9V ~ 6.5V | 1.6V ~ 7.5V | -20°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 20-TSSOP |
