Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATA6826C-TUQY-66IC HALF BRIDGE DRIVER 1A 14SOIC |
1,132 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | DMOS | 1.5Ohm | 1A | 1.3A | 4.75V ~ 5.25V | 5.6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 14-SOIC |
|

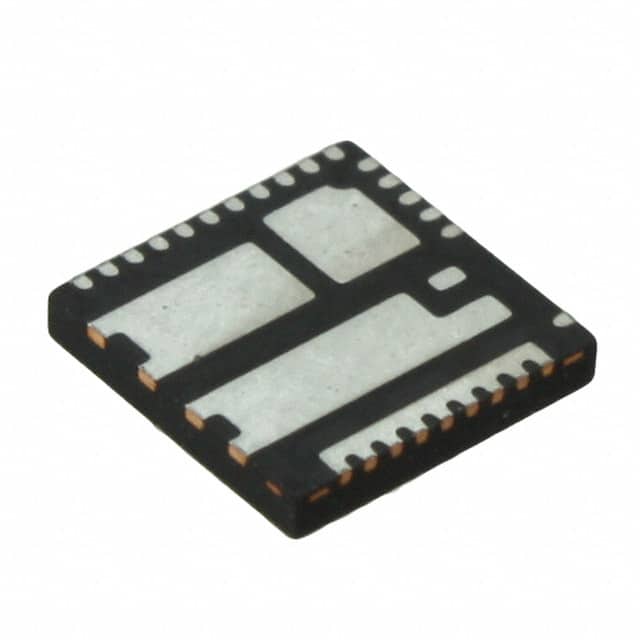

IR3550MTRPBFIC HALF BRIDGE DRIVER 60A 32QFN |
4,018 | 0.00 |
|
Datasheet |
PowIRstage® | 32-PowerVFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 7V | 4.5V ~ 15V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 32-PQFN (6x6) |
|

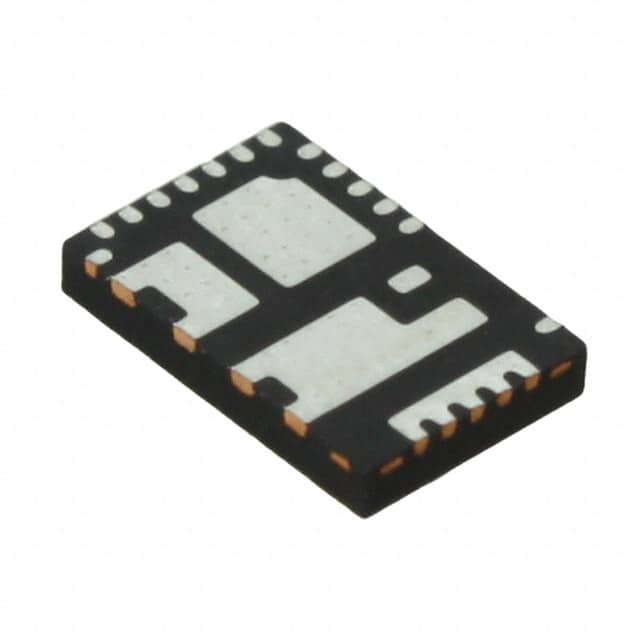

IR3553MTRPBFIC HALF BRIDGE DRIVER 40A 2PQFN |
3,693 | 0.00 |
|
Datasheet |
PowIRstage® | 25-PowerVFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 40A | 60A | 4.5V ~ 7V | 4.5V ~ 15V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, UVLO | Surface Mount | 25-PQFN (4x6) |
|
FDMF6706BIC HALF BRIDGE DRIVER 43A 40PQFN |
1,413 | 0.00 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 43A | - | 4.5V ~ 5.5V | 3V ~ 15V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
NCP81081MNTWGIC HALF BRIDGE DRIVER 35A 40QFN |
2,985 | 0.00 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | 50A | 4.5V ~ 5.5V | 4.5V ~ 25V | 0°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
|
SIC778ACD-T1-GE3IC HALF BRIDGE DRIVER 40A PPAK |
1,687 | 0.00 |
|
Datasheet |
- | PowerPAK® MLP66-40 | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 40A | - | 4.5V ~ 5.5V | 4.5V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP66-40 |
|
BTS7710GNUMA1IC HALF BRIDGE DRIVER PDSO28 |
2,482 | 0.00 |
|
Datasheet |
TrilithIC™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 40mOhm LS, 70mOhm HS | - | 15A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Over Temperature, Short Circuit, UVLO | Surface Mount | P-DSO-28-14 |
|
LB1836M-MPB-EIC HALF BRIDGE DRIVER 1A 14MFPS |
2,350 | 1.00 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tape & Box (TB) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 2.5V ~ 9V | 1.8V ~ 9V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
LB1843V-MPB-EIC HALF BRIDGE DRVR 800MA 20SSOP |
3,302 | 1.00 |
|
- |
- | 20-LSSOP (0.173", 4.40mm Width) | Tape & Box (TB) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 800mA | - | 3V ~ 9V | 2.2V ~ 9V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 20-SSOP |
|
LA6586FA-AHIC HALF BRIDGE DRV 600MA 10MICRO |
4,461 | 0.00 |
|
- |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 600mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | Auto Restart | Over Temperature | Surface Mount | 10-Micro |
|
LB1867M-TLM-EIC HALF BRIDGE DRIVER 1A 14MFPS |
3,401 | 0.61 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 6.4V ~ 7V | 12V, 24V | -30°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
MC33186HVW2R2IC HALF BRIDGE DRIVER 5A 20HSOP |
2,623 | 0.00 |
|
Datasheet |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Solenoids | Logic | Inductive | Bi-CMOS | 150mOhm | 5A | - | 5V ~ 28V | 5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 20-HSOP |
|
|
MC33186HVW2IC HALF BRIDGE DRIVER 5A 20HSOP |
1,912 | 0.00 |
|
Datasheet |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Solenoids | Logic | Inductive | Bi-CMOS | 150mOhm | 5A | - | 5V ~ 28V | 5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 20-HSOP |
|
|
IR3558MTRPBFIC HALF BRIDGE DRIVER 45A PQFN |
4,690 | 0.00 |
|
Datasheet |
PowIRstage® | 28-PowerVQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 45A | - | 4.5V ~ 5.5V | 4.5V ~ 15V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, UVLO | Surface Mount | PQFN (5x6) |
|
AAT4901IJS-3-T1IC HALF BRIDGE DRIVER 700MA SC70 |
4,716 | 0.00 |
|
Datasheet |
ASPM™, FastSwitch™ | 8-TFSOJ (0.069", 1.75mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, Solenoids, Transformers | Logic | Inductive | Power MOSFET | 200mOhm LS, 240mOhm HS | 700mA | 3A | 2V ~ 5.5V | 2V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Shoot-Through | Surface Mount | 8-SC70JW |
|
FAN7093-F085IC HALF BRIDGE DRVR 46A TO263-7 |
4,510 | 0.00 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 18.2mOhm LS (Max), 12.3mOhm HS (Max) | 46A | 88A | 7V ~ 18V | 7V ~ 18V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | TO-263-7 |
|
FDMF6824BIC HALF BRIDGE DRIVER 55A 40PQFN |
3,401 | 1.74 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 55A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
BA5937AFP-E2IC HALF BRIDGE DRIVER 28HSOP |
2,477 | 3.11 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.3V ~ 13.2V | 4.3V ~ 13.2V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
BA5955FP-E2IC HALF BRIDGE DRIVER 1A 25HSOP |
1,183 | 3.42 |
|
Datasheet |
- | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 4.5V ~ 11V | 6.1V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 25-HSOP |
|
BA5956FM-E2IC HALF BRIDGE DRIVER 36HSOP |
1,484 | 3.42 |
|
Datasheet |
- | 36-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (10) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.5V ~ 14V | - | -35°C ~ 85°C (TA) | - | - | - | Over Temperature, UVLO | Surface Mount | 36-HSOP-M |
