Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BA6792FP-YE2IC HALF BRIDGE DRIVER 25HSOP |
2,872 | 3.49 |
|
Datasheet |
- | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.5V ~ 13.5V | 4.5V ~ 13.5V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 25-HSOP |
|

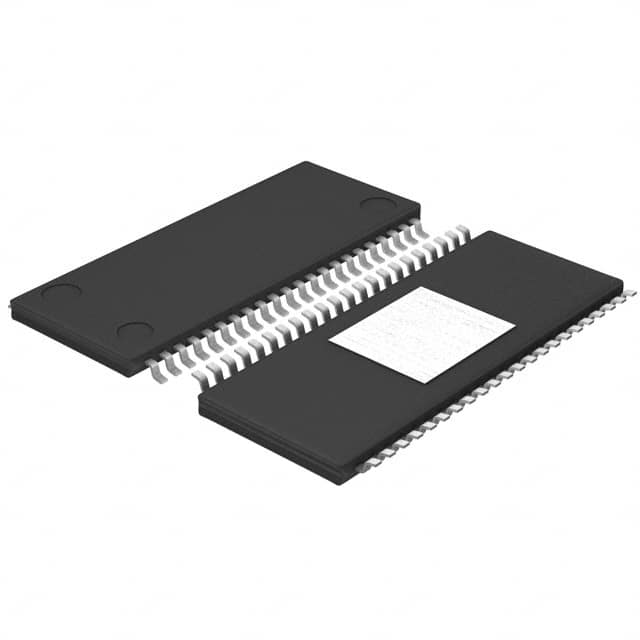

BD7776ARFS-E2IC HALF BRIDGE DRIVER 44HTSSOP |
4,906 | 3.40 |
|
Datasheet |
- | 44-VSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (15) | DC Motors, General Purpose | Logic | Inductive | - | - | 500mA, 1A | - | 10.8V ~ 13.2V | 4.3V ~ 13.2V | -20°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature | Surface Mount | 44-HTSSOP-A |
|
BD6883GUL-E2IC HALF BRIDG DRV 150MA VCSP50L1 |
2,917 | 0.93 |
|
Datasheet |
- | 6-UFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 150mA | - | 2.5V ~ 5.5V | - | -25°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | VCSP50L1 |
|
AAT4901IJS-1-T1IC HALF BRIDGE DRIVER 700MA SC70 |
2,867 | 0.00 |
|
Datasheet |
ASPM™, FastSwitch™ | 8-TFSOJ (0.069", 1.75mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, Solenoids, Transformers | Logic | Inductive | Power MOSFET | 200mOhm LS, 240mOhm HS | 700mA | 3A | 2V ~ 5.5V | 2V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Shoot-Through | Surface Mount | 8-SC70JW |
|
AAT4900IGV-T1IC HALF BRIDGE DRIVER 2A SOT23-5 |
4,585 | 0.00 |
|
Datasheet |
ASPM™ | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, DC-DC Converters | On/Off | Inductive | Power MOSFET | 105mOhm LS, 130mOhm HS | 2A | - | 2V ~ 5.5V | 2V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Shoot-Through | Surface Mount | SOT-23-5 |
|
P67001EXGIC HALF BRIDGE DRIVER 2A 8SOIC |
1,324 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Half Bridge (2) | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 2A | - | 4.5V ~ 5.5V | 10.8V ~ 13.2V | 0°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 8-SOIC |
|
|
P67001EXG8IC HALF BRIDGE DRIVER 2A 8SOIC |
3,867 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 2A | - | 4.5V ~ 5.5V | 10.8V ~ 13.2V | 0°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 8-SOIC |
.jpg)
|
P9147NRGIIC HALF BRIDGE DRIVER 12DFN |
2,364 | 0.00 |
|
- |
- | 12-VFDFN Exposed Pad | Tube | Obsolete | Half Bridge | General Purpose | 2-Wire | Inductive | - | - | - | 6A | 4.5V ~ 5.5V | 5.6V ~ 12.6V | -40°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 12-DFN (4x3) |
|
BTN8960TAAUMA1IC HALF BRIDGE DRVR 30A TO263-7 |
3,219 | 1.00 |
|
Datasheet |
NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 7.5mOhm LS, 6.7mOhm HS | 30A | 70A | 6V ~ 40V | 6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|
|
BTN8980TAAUMA1IC HALF BRIDGE DRVR 50A TO263-7 |
4,001 | 1.00 |
|
Datasheet |
NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 4.7mOhm LS, 5.3mOhm HS | 50A | 117A | 6V ~ 40V | 6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|
NCV7608DQR2GIC HALF BRIDGE DRIVER 36SSOP |
1,351 | 0.00 |
|
- |
- | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, Lamps, Relays | SPI | Inductive, Capacitive, Resistive | Power MOSFET | 1.2Ohm | - | 250mA | 3.15V ~ 5.25V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Slew Rate Controlled, Status Flag | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO | Surface Mount | 36-SSOP-EP |
|
IR3575MTRPBFIC HALF BRIDGE DRIVER 60A 32QFN |
1,752 | 0.00 |
|
Datasheet |
PowIRstage® | 32-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 7V | 4.5V ~ 15V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, UVLO | Surface Mount | 32-PQFN (6x6) |
|
FDMF5833IC HALF BRIDGE DRIVER 50A 31PQFN |
3,708 | 0.00 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 50A | - | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
FDMF5839IC HALF BRIDGE DRIVER 35A 31PQFN |
4,283 | 1.41 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 650mOhm LS, 650mOhm HS | 35A | - | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
|
UPD166028T1K-E1-AY#YEIC HALF BRIDG DRV 4MA 24PWRHSSOP |
1,292 | 0.00 |
|
- |
- | 24-PowerBSOP (0.295", 7.50mm Width) | Tray | Active | Half Bridge (2) | General Purpose | Logic | Inductive, Capacitive, Resistive | Power MOSFET | - | 4mA | - | 28V | 42V | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Auto Restart, Charge Pump | Current Limiting, Over Temperature, Short Circuit | Surface Mount | 24-PowerHSSOP |
|
STK551U3A2A-EIC HALF BRIDGE DRIVER 20A 29SIP |
4,611 | 18.38 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 20A | 40A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Current Limiting, Shoot-Through, UVLO | Through Hole | 29-SIP |
|
|
STK554U392A-EIC HALF BRIDGE DRIVER 15A 29SIP |
2,182 | 14.82 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Shoot-Through, UVLO | Through Hole | 29-SIP |
 36 LEADS.JPG)
|

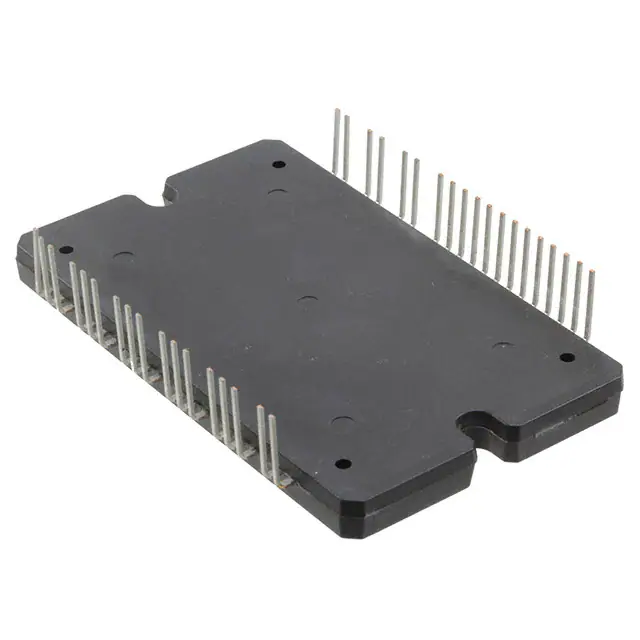

STK5F1U3E2D-EIC HALF BRIDGE DRIVER 50A 44DIP |
4,075 | 1.00 |
|
Datasheet |
- | 44-DIP Module, 37 Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 50A | 76A | 12.5V ~ 17.5V | 450V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 44-DIP |
|
|
L9741IC DRIVER SMART PWR POWERSO |
4,828 | 5.77 |
|
- |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
L99SD01-EIC HALF BRIDGE DRVR 14A PWRSSO36 |
2,918 | 0.00 |
|
Datasheet |
- | 36-PowerBFSOP (0.295", 7.50mm Width) | Tube | Active | Half Bridge | Solenoids | I2C, PWM | Inductive | Power MOSFET | 150mOhm LS (Max), 150mOhm HS (Max) | 14A | - | 6V ~ 28V | 45V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO | Surface Mount | PowerSSO-36 EPD |
