Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

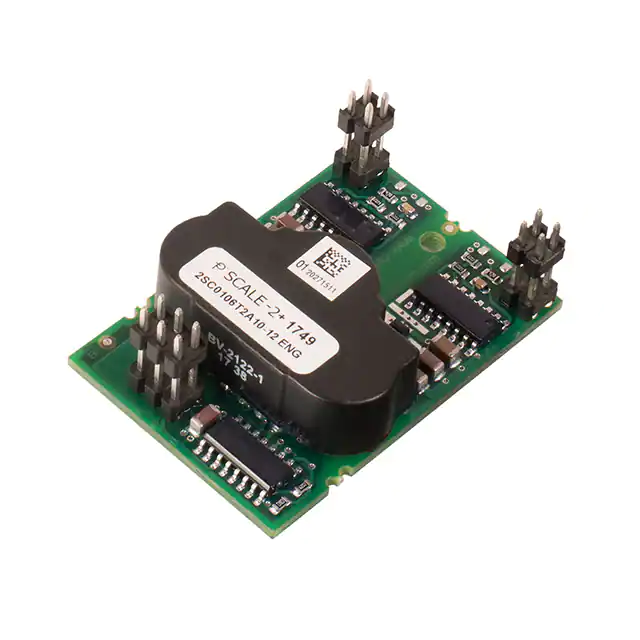

2SC0106T2A1-12IC GATE DRVR HALF-BRIDGE MODULE |
585 | 30.41 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 6A, 6A | - | 1200 V | 20ns, 13ns | -40°C ~ 105°C (TA) | - | - | Surface Mount | Module |
|

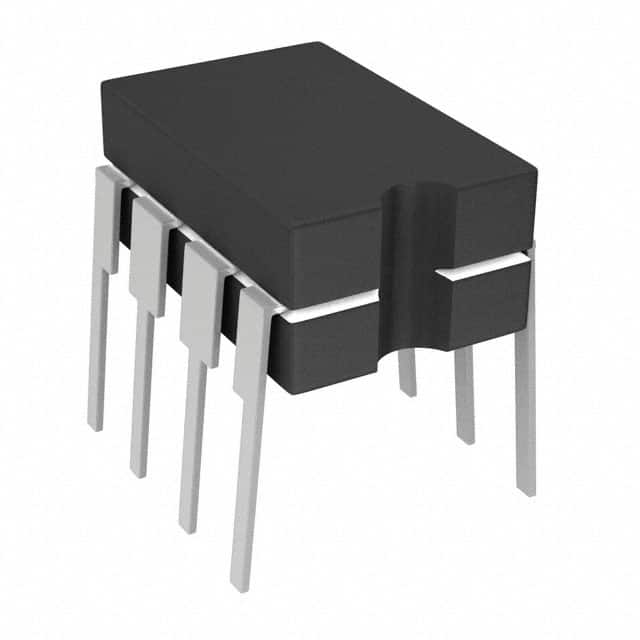

TC4427MJAIC GATE DRVR LOW-SIDE 8CERDIP |
922 | 41.05 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 19ns, 19ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
2SC0108T2F1-17IC GATE DRVR HI/LOW SIDE MODULE |
4,839 | 56.37 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SC0108T2H0-17IC GATE DRVR HI/LOW SIDE MODULE |
228 | 56.37 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1200 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2CG010BBC11NIC GATE DRVR HALF-BRIDGE MODULE |
281 | 73.27 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, SiC MOSFET | 13V ~ 28V | 1.65V, 3.85V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

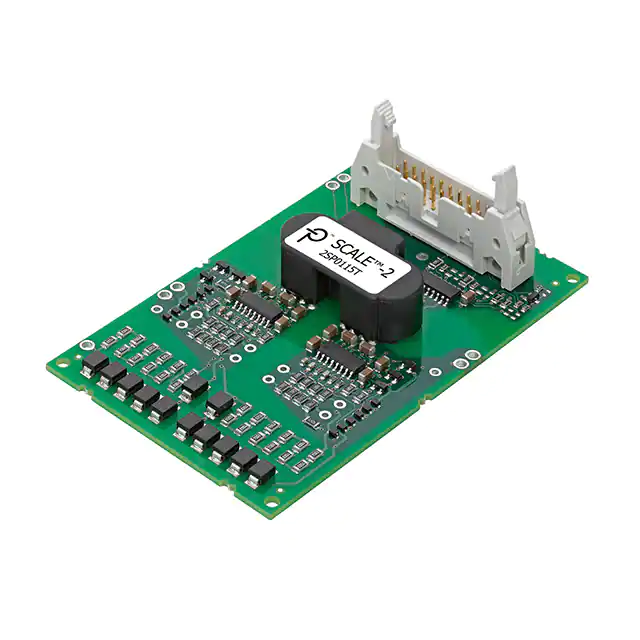

2SP0115T2A0-12IC GATE DRVR HALF-BRIDGE MODULE |
2,078 | 95.45 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1200 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SP0115T2B0-17IC GATE DRVR HALF-BRIDGE MODULE |
1,489 | 105.00 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1700 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

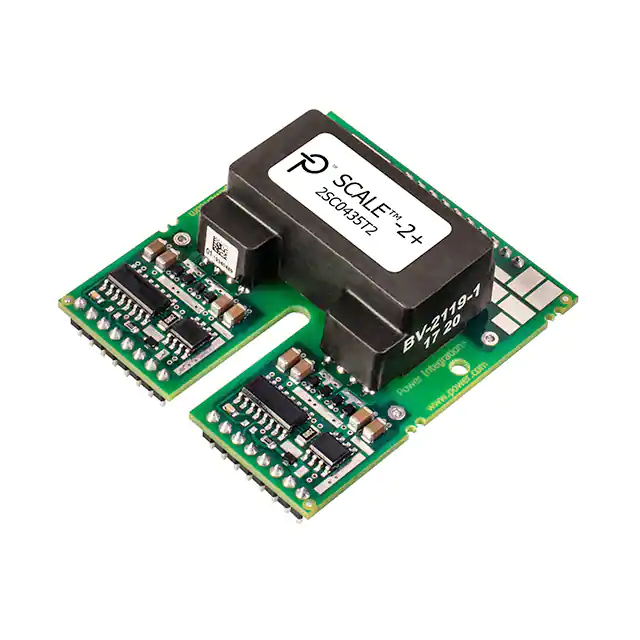

2SC0435T2H0-17IC GATE DRVR HI/LOW SIDE MODULE |
544 | 105.69 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SC0435T2F1-17IC GATE DRVR HI/LOW SIDE MODULE |
133 | 105.69 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SD106AI-17 UCIC GATE DRVR HALF-BRIDGE MODULE |
2,101 | 0.00 |
|
Datasheet |
SCALE™-1 | Module | Tray | Not For New Designs | Not Verified | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 6A, 6A | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SD315AIIC GATE DRVR HALF-BRIDGE MODULE |
511 | 118.75 |
|
Datasheet |
SCALE™-1 | 44-DIP Module, 42 Leads | Tray | Active | Not Verified | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | - | - | 18A, 18A | - | - | 160ns, 130ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
2SD300C17A1IC GATE DRVR HALF-BRIDGE MODULE |
387 | 133.87 |
|
Datasheet |
SCALE™-2 | 45-DIP Module, 43 Leads | Tray | Active | Not Verified | Half-Bridge | - | 2 | IGBT | 14V ~ 16V | - | 30A, 30A | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

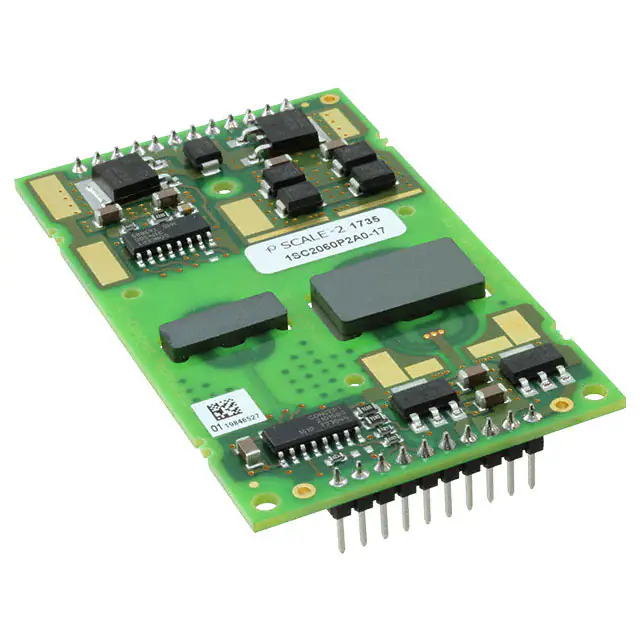

1SC2060P2A0-17IC GATE DRVR HI/LOW SIDE MODULE |
2,839 | 162.05 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 60A, 60A | - | - | 10ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
EPC7011L7CIC GATE DRVR |
2,049 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TPM27224-SO1RIC GATE DRVR LOW-SIDE 8SOIC |
3,597 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 23V | - | 2A, 2A | Non-Inverting | - | 9ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOP |
|
ZXGD3009DYTAIC GATE DRVR LOW-SIDE SOT363 |
19,930 | 0.43 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 40V (Max) | - | 2A, 2A | Non-Inverting | - | 210ns, 240ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
LM2103DRIC GATE DRVR HALF-BRIDGE 8SOIC |
2,722 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 18V | - | 500mA, 800mA | Inverting | - | 28ns, 18ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM2104DRIC GATE DRVR HALF-BRIDGE 8SOIC |
2,231 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | Half-Bridge | Synchronous | 1 | N-Channel MOSFET | 9V ~ 18V | 0.8V, 2V | 500mA, 800mA | Inverting | - | 18ns, 18ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
2EDN7534FXTMA1IC GATE DRVR LOW-SIDE 8SOIC |
1,285 | 1.45 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Non-Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
1EDN8511BXUSA1IC GATE DRVR LOW-SIDE SOT23-6 |
36,939 | 1.07 |
|
Datasheet |
EiceDRIVER™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 8V ~ 20V | 1.2V, 1.9V | 4A, 8A | Inverting, Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-6-2 |
