Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

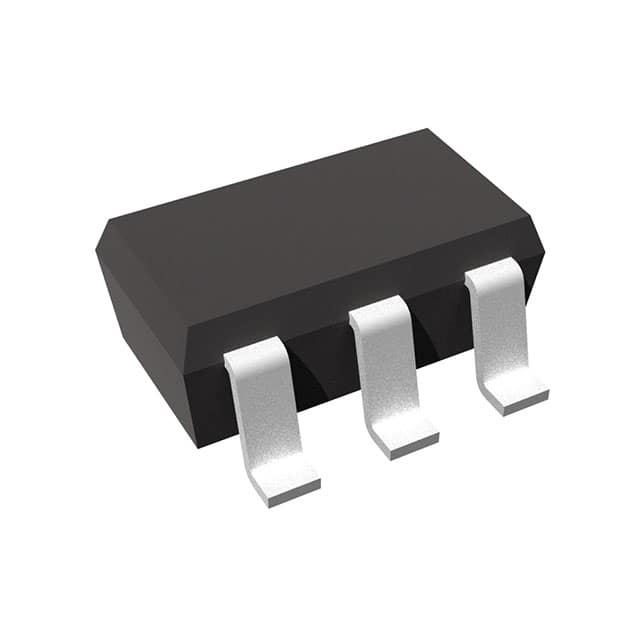

1EDN7511BXUSA1IC GATE DRVR LOW-SIDE SOT23-6 |
24,049 | 1.07 |
|
Datasheet |
EiceDRIVER™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 4A, 8A | Inverting, Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-6-2 |
|
UCC27518DBVRIC GATE DRVR LOW-SIDE SOT23-5 |
8,001 | 1.05 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | - | 4A, 4A | Inverting | - | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
MCP1416RT-E/OTIC GATE DRVR LOW-SIDE SOT23-5 |
9,047 | 0.88 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
UCC27517ADBVRIC GATE DRVR LOW-SIDE SOT23-5 |
7,848 | 1.15 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 4A, 4A | Inverting, Non-Inverting | - | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

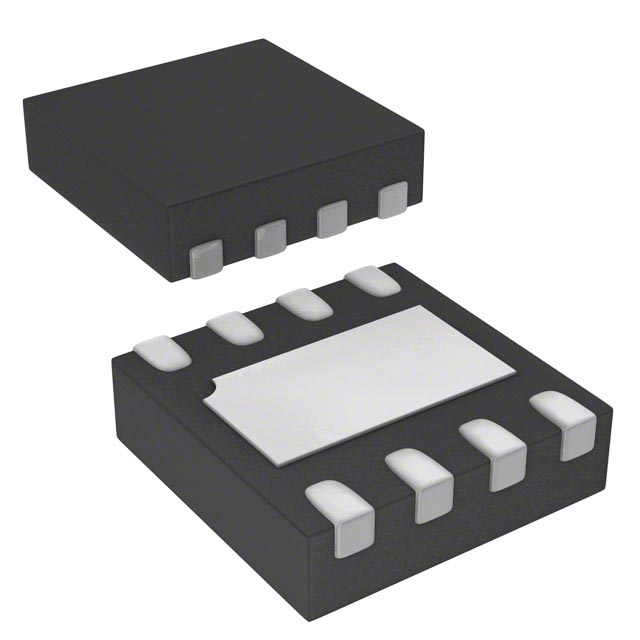

SLG55021-200010VIC GATE DRVR HIGH-SIDE 8TDFN |
327,132 | 0.57 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.75V ~ 5.25V | 0.4V, 5.5V | 32µA, 400µA | CMOS | - | - | -55°C ~ 125°C | - | - | Surface Mount | 8-TDFN (2x2) |
|
IRS44273LTRPBFIC GATE DRVR LOW-SIDE SOT23-5 |
23,213 | 1.33 |
|
Datasheet |
µHVIC™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 10.2V ~ 20V | 0.8V, 2.5V | 1.5A, 1.5A | Non-Inverting | - | 25ns, 25ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

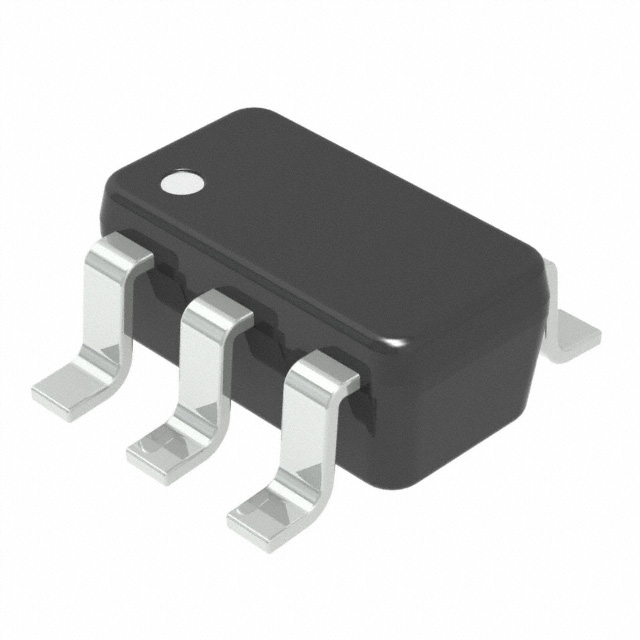

IRS10752LTRPBFIC GATE DRVR HIGH-SIDE SOT23-6 |
14,333 | 1.22 |
|
Datasheet |
µHVIC™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 10V ~ 18V | 0.8V, 2.2V | 160mA, 240mA | Non-Inverting | 100 V | 85ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SOT23-6 |
|
NCP81151MNTBGIC GATE DRVR HALF-BRIDGE 8DFN |
9,885 | 0.48 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.6V, 3.3V | - | Non-Inverting | 40 V | 16ns, 11ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|

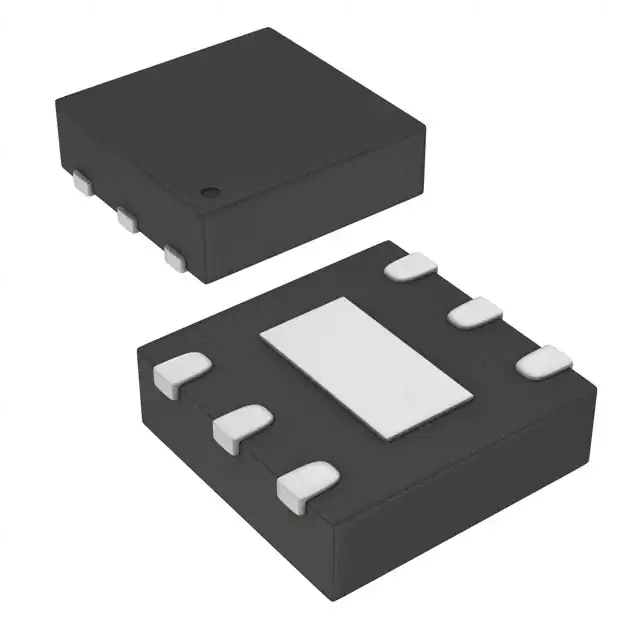

UCC27516DRSRIC GATE DRVR LOW-SIDE 6SON |
36,000 | 1.05 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 4A, 4A | Inverting, Non-Inverting | - | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | 6-SON (3x3) |
|
DGD0506AM10-13IC GATE DRVR HALF-BRIDGE 10MSOP |
16,797 | 0.53 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.4V | 1.5A, 2A | Non-Inverting | 50 V | 17ns, 12ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
1EDN7116UXTSA1IC GATE DRVR HI/LOW SIDE TSNP-7 |
2,458 | 1.08 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1EDN7550BXTSA1IC GATE DRVR HIGH-SIDE SOT23-6 |
4,908 | 1.00 |
|
Datasheet |
EiceDRIVER™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A | Non-Inverting | 84 V | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-6 |
|
|
1EDN9550BXTSA1IC GATE DRVR HI/LOW SIDE SOT23-6 |
3,269 | 0.00 |
|
Datasheet |
EiceDRIVER™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side and Low-Side | Single | 2 | N-Channel MOSFET, SiC MOSFET | 4.5V ~ 20V | - | 5.2A, 9.4A | Inverting, Non-Inverting | 400 V | 1ns, 1ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-6 |
|
MCP14A0052T-E/CHIC GATE DRVR HI/LOW SIDE SOT23-6 |
2,776 | 0.84 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | - | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 500mA, 500mA | Non-Inverting | - | 40ns, 28ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
2EDN7524FXTMA1IC GATE DRVR LOW-SIDE 8SOIC |
2,196 | 1.45 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A | Non-Inverting | - | 5.3ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8-60 |
|
|
1EDN6550BXTSA1IC GATE DRVR HI/LOW SIDE SOT23-6 |
2,127 | 0.00 |
|
Datasheet |
EiceDRIVER™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side and Low-Side | Single | 2 | N-Channel MOSFET, SiC MOSFET | 4.5V ~ 20V | - | 5.2A, 9.4A | Inverting, Non-Inverting | 400 V | 1ns, 1ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-6-3 |
|
|
1EDN8550BXTSA1IC GATE DRVR HIGH-SIDE SOT23-6 |
1,332 | 1.00 |
|
Datasheet |
EiceDRIVER™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A | Non-Inverting | 84 V | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-6 |
|
|
IRS20752LTRPBFIC GATE DRVR HIGH-SIDE SOT23-6 |
18,112 | 1.26 |
|
Datasheet |
µHVIC™ | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 10V ~ 18V | 0.8V, 2.2V | 160mA, 240mA | Non-Inverting | 200 V | 85ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SOT23-6 |
|
|
PM8841DIC GATE DRVR LOW-SIDE SOT23-5 |
7,648 | 1.12 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 10V ~ 18V | - | 800mA, 1A | Non-Inverting | - | 20ns, 20ns (Max) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
2EDN8524FXTMA1IC GATE DRVR LOW-SIDE DSO8 |
3,351 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 5A, 5A | Non-Inverting | - | 5.3ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
