Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC7000ARMSE-1#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
2,572 | 7.42 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 14 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT1910IS8#TRPBFIC GATE DRVR HIGH-SIDE 8SOIC |
5,645 | 6.86 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 8V ~ 48V | 0.7V, 3.5V | - | Non-Inverting | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LT1910IS8#PBFIC GATE DRVR HIGH-SIDE 8SOIC |
2,265 | 6.86 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 8V ~ 48V | 0.7V, 3.5V | - | Non-Inverting | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
LTC7003IMSE#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
16,771 | 7.92 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 60 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LTC7001IMSE#PBFIC GATE DRVR HIGH-SIDE 10MSOP |
541 | 7.92 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LTC7001IMSE#TRPBFIC GATE DRVR HIGH-SIDE 10MSOP |
422 | 7.92 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LTC7000IMSE-1#WTRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
10,000 | 8.05 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 14 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-MSOP-EP |
|
MAX1614EUA+IC GATE DRVR HIGH-SIDE 8UMAX |
821 | 6.07 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 5V ~ 26V | 0.6V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
LT1166CS8#PBFIC GATE DRVR HIGH-SIDE 8SOIC |
344 | 8.25 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side | Synchronous | 2 | N-Channel MOSFET | - | - | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LTC7000EMSE#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
7,662 | 8.35 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC7004HMSE#TRPBFIC GATE DRVR HIGH-SIDE 10MSOP |
1,290 | 8.35 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 60 V | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
EL7156CSZIC GATE DRVR HI/LOW SIDE 8SOIC |
883 | 7.32 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 4.5V ~ 16.5V | 0.8V, 2.4V | 3.5A, 3.5A | Non-Inverting | - | 14.5ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

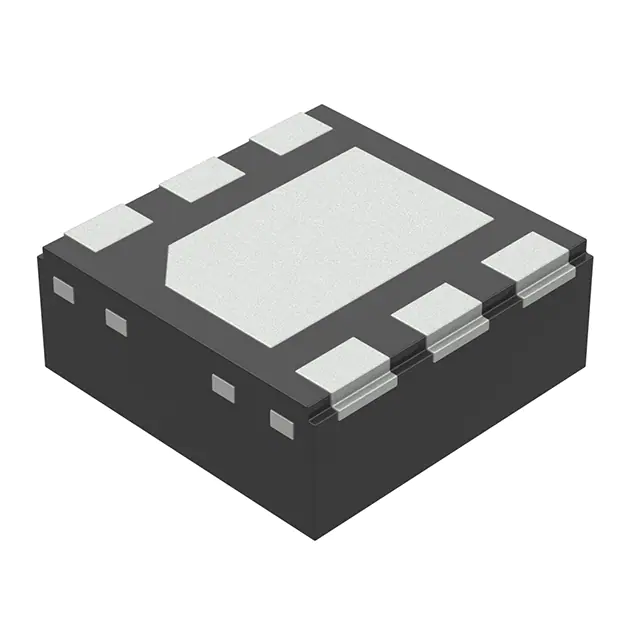

LMG1025QDEETQ1IC GATE DRVR LOW-SIDE 6WSON |
1,045 | 7.02 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.75V ~ 5.25V | 1.8V, 1.7V | 7A, 5A | Inverting, Non-Inverting | - | 650ps, 850ps | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WSON (2x2) |
|
IXDD630YIIC GATE DRVR LOW-SIDE TO263-5 |
6,420 | 9.56 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|

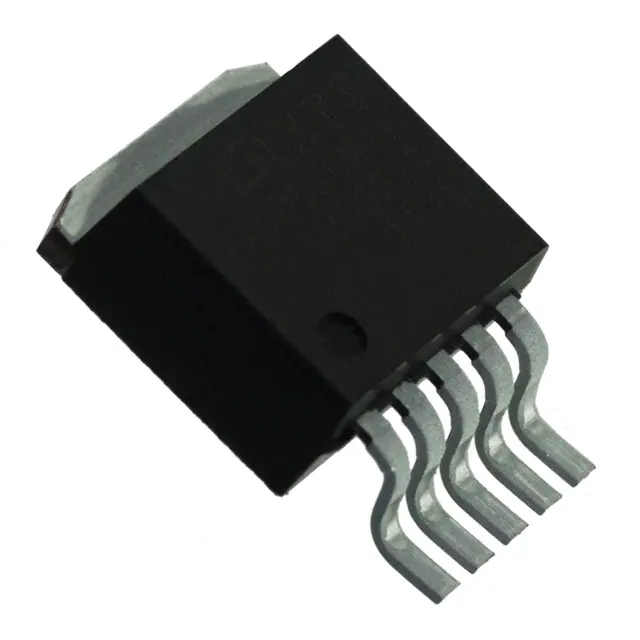

IXDD630MYIIC GATE DRVR LOW-SIDE TO263-5 |
4,570 | 9.56 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 9V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|

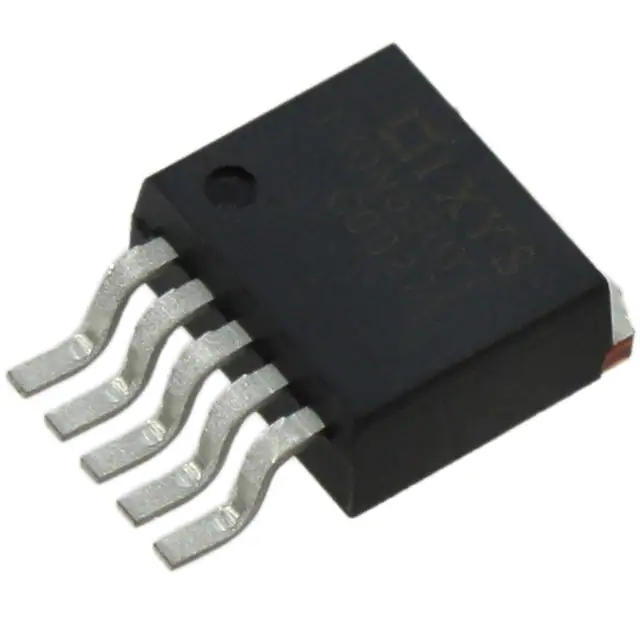

IXDN630YIIC GATE DRVR LOW-SIDE TO263-5 |
3,048 | 9.56 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|

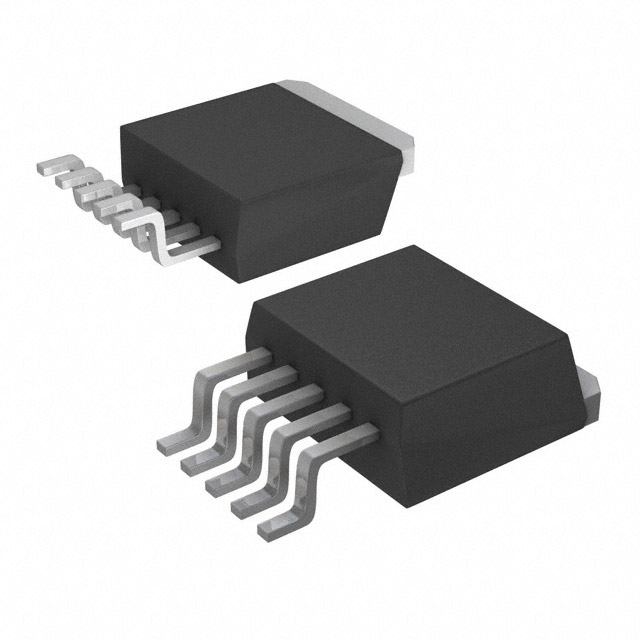

IXDN630MYIIC GATE DRVR LOW-SIDE TO263-5 |
403 | 9.56 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 9V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
LTC4444MPMS8E-5#PBFIC GATE DRVR HALF-BRIDGE 8MSOP |
624 | 8.73 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 13.5V | 1.85V, 3.25V | 2.5A, 3A | Non-Inverting | 114 V | 8ns, 5ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
LTC7003HMSE#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
8,184 | 8.80 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 60 V | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC7000IMSE#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
2,423 | 8.93 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
