Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1158ISW#PBFIC GATE DRVR HALF-BRIDGE 16SOIC |
2,948 | 11.37 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 30V | 0.8V, 2V | 500mA, 500mA | Inverting, Non-Inverting | 56 V | 130ns, 120ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
LTC1156CSW#PBFIC GATE DRVR HIGH-SIDE 16SOIC |
4,885 | 15.52 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SO |
|
LT1162ISW#PBFIC GATE DRVR HALF-BRIDGE 24SOIC |
3,721 | 16.29 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
LTC7003MPMSE#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
232 | 18.50 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 60 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC7000MPMSE#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
1,242 | 20.99 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
2SC0108T2D0-12IC GATE DRVR HI/LOW SIDE MODULE |
239 | 68.23 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1200 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2CG010BBC13NIC GATE DRVR HALF-BRIDGE MODULE |
187 | 73.27 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, SiC MOSFET | 13V ~ 28V | 1.65V, 3.85V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
2SP0115T2A0-17IC GATE DRVR HALF-BRIDGE MODULE |
3,116 | 95.45 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1700 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SC0435T2G1-17IC GATE DRVR HI/LOW SIDE MODULE |
3,118 | 105.69 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

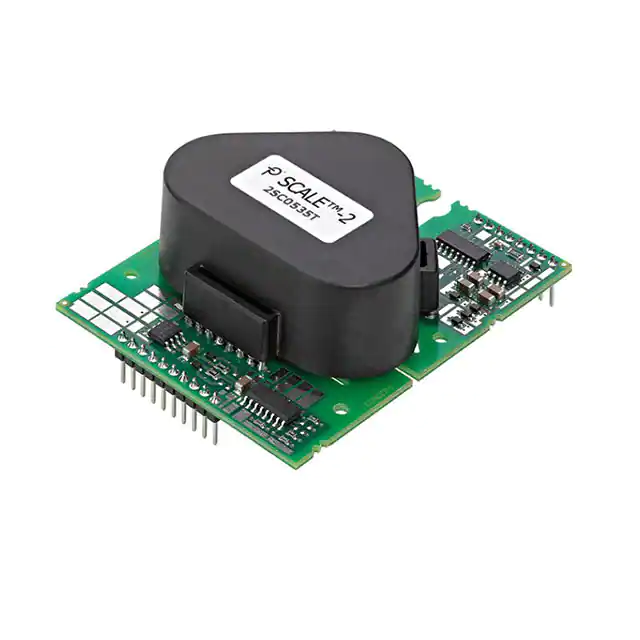

2SC0535T2G0-33IC GATE DRVR HI/LOW SIDE MODULE |
107 | 202.93 |
|
Datasheet |
SCALE™-2 | Module | Box | Last Time Buy | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 3300 V | 20ns, 25ns | -55°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
FBS-GAM02P-R-PSEIC GATE DRVR HI/LOW SIDE 18SMD |
2,869 | 0.00 |
|
Datasheet |
- | 18-SMD Module | Bulk | Active | - | High-Side and Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V, 5V ~ 50V | 0.8V, 2.9V | - | Non-Inverting | 100 V | 35ns, 22ns | -55°C ~ 130°C (TJ) | - | - | Surface Mount | Module |
|
|
2EDN8533FXTMA1IC GATE DRVR LOW-SIDE 8SOIC |
2,418 | 1.45 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
|
2EDN7434FXTMA1IC GATE DRVR LOW-SIDE 8SOIC |
2,345 | 1.45 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Non-Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
|
2EDN8534FXTMA1IC GATE DRVR LOW-SIDE 8SOIC |
1,535 | 1.45 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Non-Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
|
2EDN8534RXTMA1IC GATE DRVR LOW-SIDE 8TSSOP |
4,410 | 1.33 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Non-Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
|
2EDN7534RXTMA1IC GATE DRVR LOW-SIDE 8TSSOP |
3,823 | 1.33 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Non-Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
|
1ED44171N01BXTSA1IC GATE DRVR LOW-SIDE SOT23-5 |
3,555 | 1.26 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12.7V ~ 20V | 1.2V, 1.9V | 2.6A, 2.6A | Non-Inverting | - | 5ns, 5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-5-1 |
|
|
1EDN7126UXTSA1IC GATE DRVR HI/LOW SIDE TSNP-7 |
4,416 | 1.03 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1EDN7136UXTSA1IC GATE DRVR HI/LOW SIDE TSNP-7 |
4,280 | 0.97 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

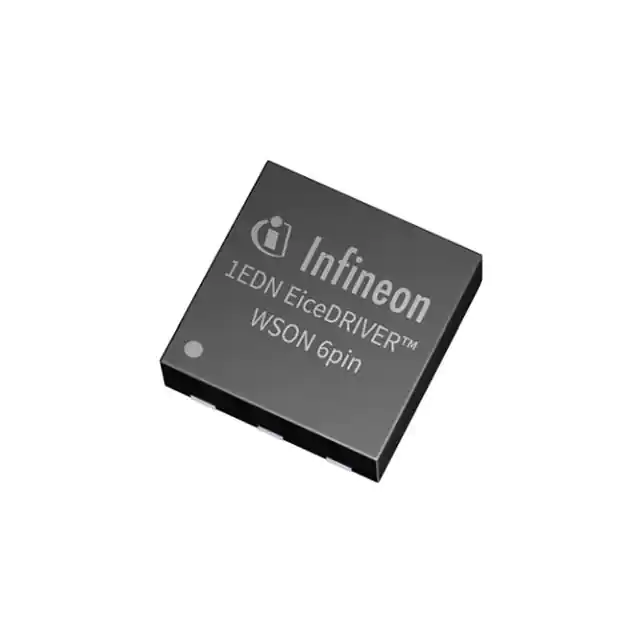

1EDN7512GXTMA1IC GATE DRVR LOW-SIDE 6WSON |
3,778 | 1.07 |
|
Datasheet |
EiceDRIVER™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A | Inverting, Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-WSON-6-1 |
