Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1404T-E/SNIC GATE DRVR LOW-SIDE 8SOIC |
132 | 2.63 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 4.5A, 4.5A | Non-Inverting | - | 15ns, 18ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MIC5014YM-TRIC GATE DRVR HI/LOW SIDE 8SOIC |
7,809 | 2.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MIC4102YM-TRIC GATE DRVR HALF-BRIDGE 8SOIC |
8,334 | 2.66 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 9V ~ 16V | 0.8V, 2.2V | 2A, 3A | Non-Inverting | 118 V | 330ns, 200ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

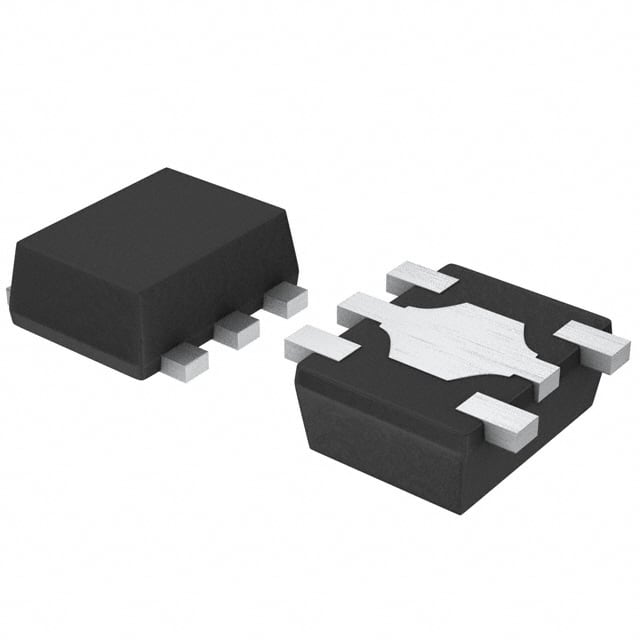

BD2270HFV-TRIC GATE DRVR HIGH-SIDE HVSOF5 |
493 | 1.85 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 2.7V ~ 5.5V | - | - | Non-Inverting | - | 130µs, 18µs | -25°C ~ 85°C (TA) | - | - | Surface Mount | 5-HVSOF |
|
IR2011STRPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
5,732 | 3.46 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A | Inverting | 200 V | 35ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TLF11251EPXUMA1IC GATE DRVR HALF-BRIDGE 14TSSOP |
4,579 | 3.17 |
|
Datasheet |
- | 14-PowerTSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Single | 1 | N-Channel, P-Channel MOSFET | 2.35V ~ 7V | 2.31V, 4.69V | 2.5A, 2.5A | Non-Inverting | - | 60ns, 60ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-5 |
-8.jpg)
|

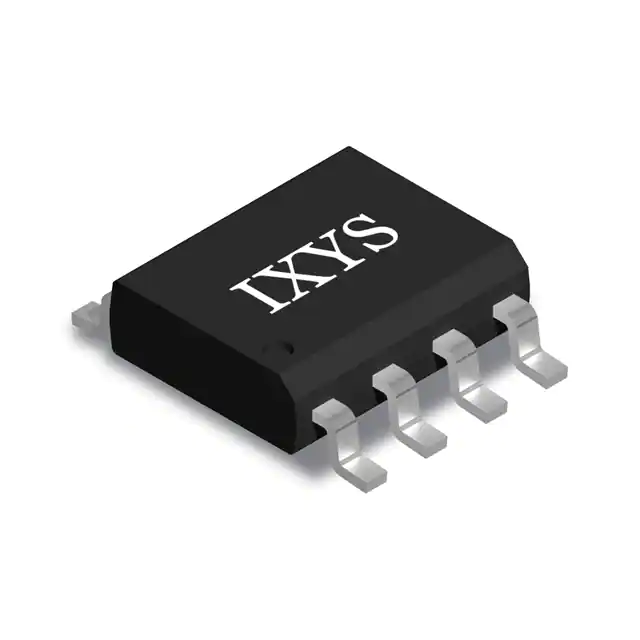

LF2190NTRIC GATE DRVR HALF-BRIDGE 8SOIC |
13,238 | 2.06 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4.5A, 4.5A | Non-Inverting | 600 V | 25ns, 20ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|

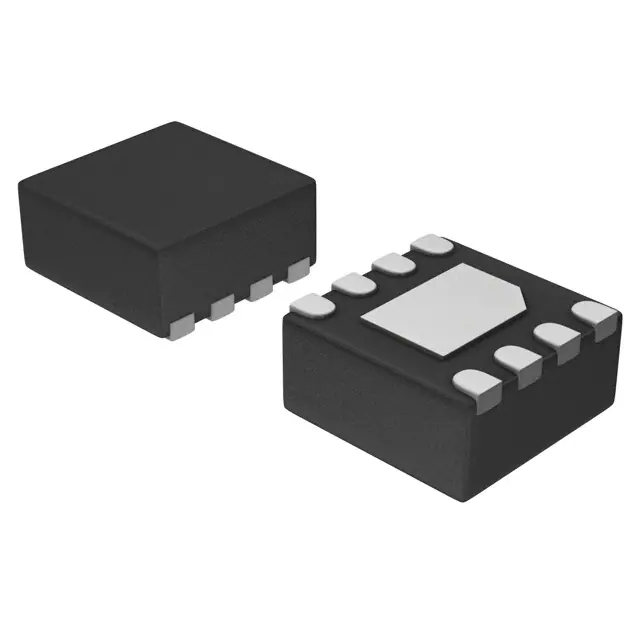

NCP81074AMNTBGIC GATE DRVR LOW-SIDE 8DFN |
7,995 | 2.00 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 20V | 1.5V, 1.9V | 10A, 10A | Inverting, Non-Inverting | - | 4ns, 4ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
LM9061MX/NOPBIC GATE DRVR HIGH-SIDE 8SOIC |
4,100 | 3.13 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 7V ~ 26V | 1.5V, 3.5V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR1167ASTRPBFIC GATE DRVR LOW-SIDE 8SOIC |
2,757 | 3.29 |
|
Datasheet |
SmartRectifier™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 12V ~ 18V | 2V, 2.15V | 2A, 7A | Non-Inverting | - | 18ns, 10ns | -25°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

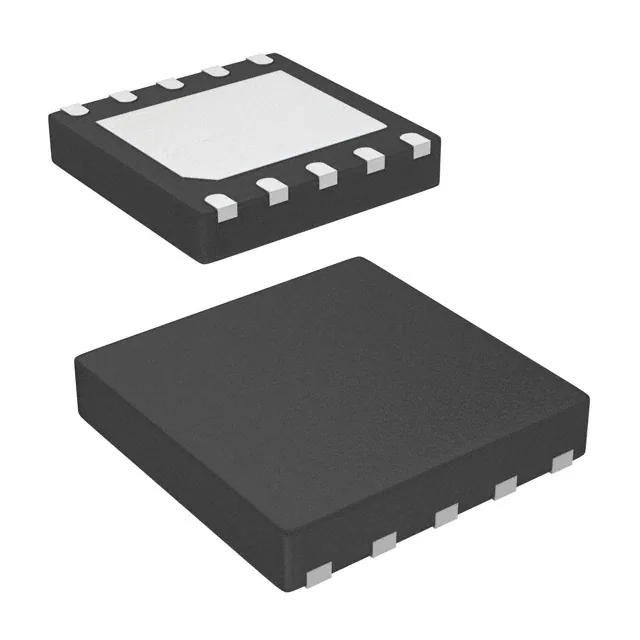

HIP2210FRTZ-TIC GATE DRVR HALF-BRIDGE 10TDFN |
27,491 | 2.00 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6V ~ 18V | 1.47V, 1.84V | 3A, 4A | Non-Inverting | 115 V | 435ns, 365ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-TDFN (4x4) |
|
MC33151DR2GIC GATE DRVR LOW-SIDE 8SOIC |
2,223 | 2.02 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 6.5V ~ 18V | 0.8V, 2.6V | 1.5A, 1.5A | Inverting | - | 31ns, 32ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
.jpg)
|

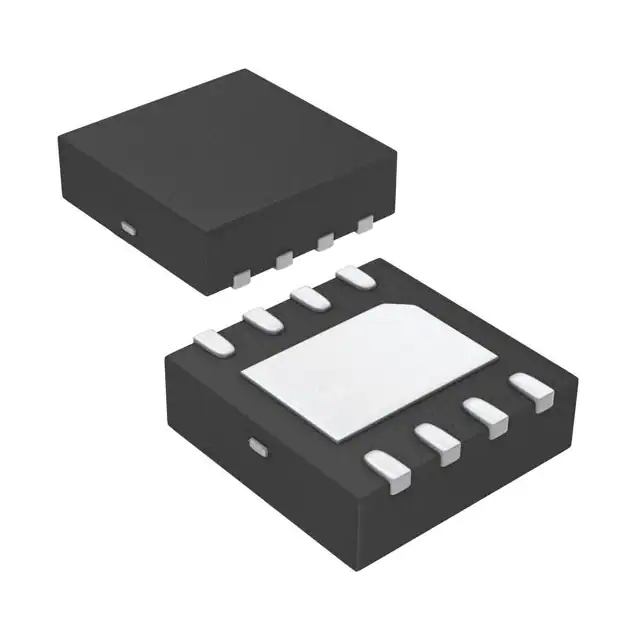

FAN3122TMPXIC GATE DRVR LOW-SIDE 8MLP |
13,007 | 2.03 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3x3) |
|
FAN3122TMXIC GATE DRVR LOW-SIDE 8SOIC |
5,578 | 2.06 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MIC5015YM-TRIC GATE DRVR HI/LOW SIDE 8SOIC |
4,013 | 2.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MP1907AGQ-ZIC GATE DRVR HALF-BRIDGE 10QFN |
12,337 | 1.01 |
|
- |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 100 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (3x3) |
|

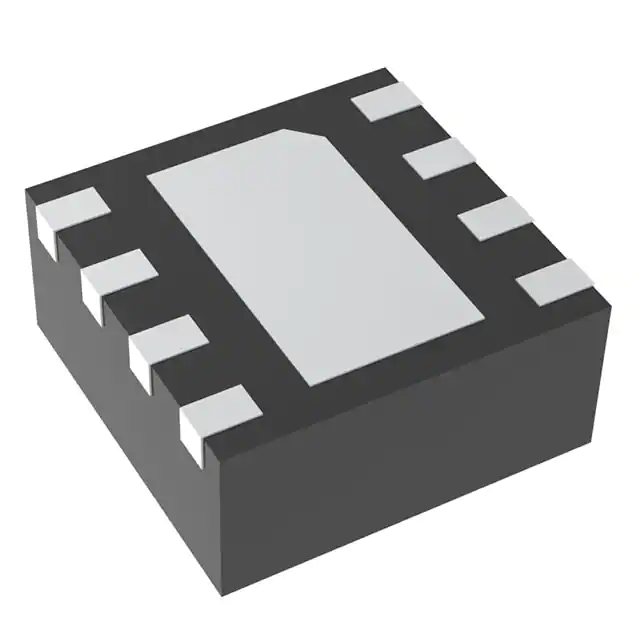

ISL95808HRZ-TIC GATE DRVR HALF-BRIDGE 8DFN |
8,197 | 2.97 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | - | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -10°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
MP1907GQ-ZIC GATE DRVR HALF-BRIDGE 10QFN |
3,340 | 2.10 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 100 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (3x3) |
|
TC4452VMFIC GATE DRVR LOW-SIDE 8DFN |
1,338 | 3.49 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 13A, 13A | Non-Inverting | - | 30ns, 32ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-S (6x5) |
|
IXDN604SIATRIC GATE DRVR LOW-SIDE 8SOIC |
22,884 | 2.21 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 4A, 4A | Non-Inverting | - | 9ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
