Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXDD609SITRIC GATE DRVR LOW-SIDE 8SOIC |
14,581 | 3.22 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 9A, 9A | Non-Inverting | - | 22ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
IR2110STRPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
9,314 | 3.78 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IR2113STRPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
5,298 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
LMG1205YFXRIC GATE DRVR HALF-BRIDGE 12DSBGA |
4,964 | 3.68 |
|
Datasheet |
- | 12-WFBGA, DSBGA | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | - | 1.2A, 5A | TTL | 100 V | 7ns, 3.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DSBGA |
|
|
IXDN609SIIC GATE DRVR LOW-SIDE 8SOIC |
1,575 | 3.22 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 9A, 9A | Non-Inverting | - | 22ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
.jpg)
|
FAN3224TMPXIC GATE DRVR LOW-SIDE 8MLP |
8,825 | 2.30 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 5A, 5A | Non-Inverting | - | 12ns, 9ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MLP (3x3) |
|
UCC27714DRIC GATE DRVR HALF-BRIDGE 14SOIC |
3,000 | 3.43 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 18V | 1.2V, 2.7V | 4A, 4A | Non-Inverting | 600 V | 15ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
IR2136STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
3,427 | 4.45 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|

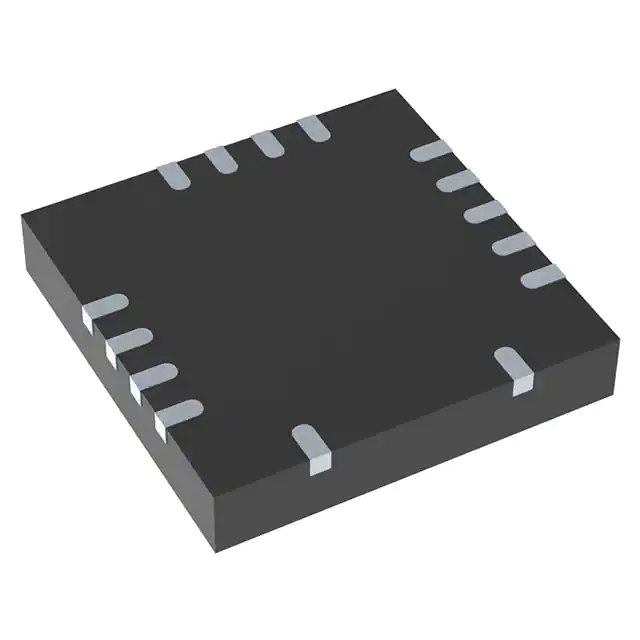

NCP51820AMNTWGIC GATE DRVR HALF-BRIDGE HI SPD |
5,493 | 3.03 |
|
Datasheet |
- | 15-VFQFN | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | - | N-Channel, P-Channel MOSFET | 9V ~ 17V | - | 1A, 2A | Non-Inverting | 670 V | 2ns, 1.5ns | 150°C (TJ) | - | - | Surface Mount | 15-QFN (4x4) |
|
|
NCP51810AMNTWGIC GATE DRVR HALF-BRIDGE 15QFN |
5,176 | 4.51 |
|
Datasheet |
- | 15-VFQFN | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Single | 1 | N-Channel MOSFET | 9V ~ 17V | - | 1A, 2A | Non-Inverting | 150 V | 2ns, 1.5ns | 150°C (TJ) | - | - | Surface Mount | 15-QFN (4x4) |
|
LM5105SD/NOPBIC GATE DRVR HALF-BRIDGE 10WSON |
9,215 | 1.00 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.2V | 1.8A, 1.8A | Non-Inverting | 118 V | 15ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-WSON (4x4) |
|
MC33153DR2GIC GATE DRVR LOW-SIDE 8SOIC |
10,236 | 2.44 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 11V ~ 20V | 1.2V, 3.2V | 1A, 2A | Inverting | - | 17ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IXDD614SITRIC GATE DRVR LOW-SIDE 8SOIC |
59,453 | 4.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Non-Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
FAN3122CMXIC GATE DRVR LOW-SIDE 8SOIC |
7,661 | 2.50 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | - | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AUIR3241STRIC GATE DRVR HIGH-SIDE 8SO |
8,452 | 3.70 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3V ~ 36V | 0.8V, 2.5V | 350mA, 350mA | Non-Inverting | - | 6µs, 6µs | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-903 |
|
LM5102MM/NOPBIC GATE DRVR HALF-BRIDGE 10VSSOP |
11,473 | 2.63 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 0.8V, 2.2V | 1.6A, 1.6A | Non-Inverting | 118 V | 600ns, 600ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSSOP |
|

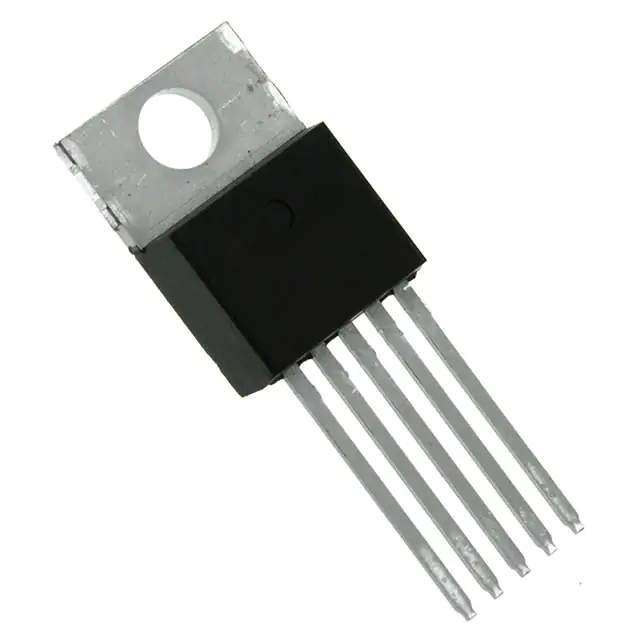

TC4422AVATIC GATE DRVR LOW-SIDE TO220-5 |
868 | 3.40 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 10A, 10A | Non-Inverting | - | 38ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
UP1966EIC GATE DRVR HALF-BRIDGE 12WLCSP |
41,946 | 3.82 |
|
Datasheet |
- | 12-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | Enhanced Mode GaN FET | 4.5V ~ 5.5V | 0.5V, 2.3V | 7.1A, 12.5A | Non-Inverting | 85 V | 8ns, 4ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-WLCSP-B (1.6x1.6) |
|
|
IXDN604SIIC GATE DRVR LOW-SIDE 8SOIC |
1,991 | 3.63 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 4A, 4A | Non-Inverting | - | 9ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
|
IR2130STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
2,971 | 13.06 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
