Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5113QDPRRQ1IC GATE DRVR HALF-BRIDGE 10WSON |
2,385 | 5.00 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | - | 1.2A, 5A | Non-Inverting | 100 V | 7ns, 3.5ns | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 10-WSON (4x4) |
|
IR2113SPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
6,809 | 5.35 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|

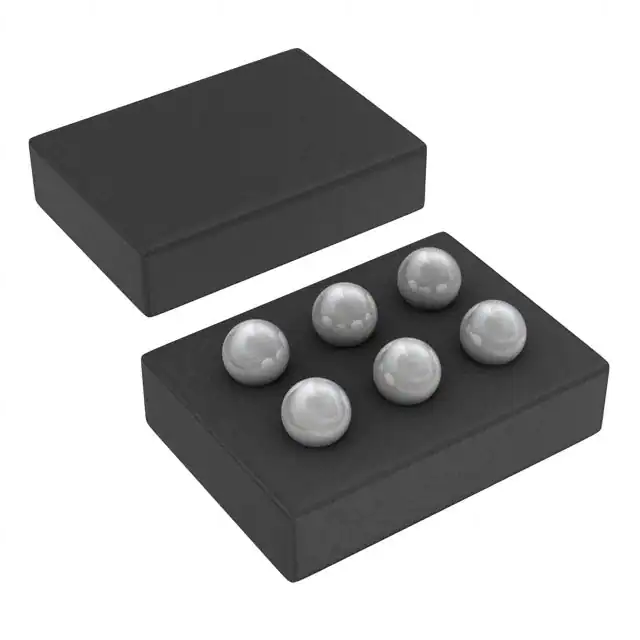

LMG1020YFFRIC GATE DRVR LOW-SIDE 6DSBGA |
28,836 | 5.09 |
|
Datasheet |
- | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.75V ~ 5.25V | 1.8V, 1.7V | 7A, 5A | Inverting, Non-Inverting | - | 375ps, 350ps | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA |
|
IXDN614SITRIC GATE DRVR LOW-SIDE 8SOIC |
5,026 | 4.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Non-Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
IXDD614SIIC GATE DRVR LOW-SIDE 8SOIC |
1,417 | 4.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Non-Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
IXDN614SIIC GATE DRVR LOW-SIDE 8SOIC |
15,953 | 4.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Non-Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
NCP81075MNTXGIC GATE DRVR HI/LOW SIDE 8DFN |
434 | 3.72 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 8.5V ~ 20V | 0.8V, 2.7V | 4A, 4A | Non-Inverting | 200 V | 8ns, 7ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | 8-DFN (4x4) |
|
EL7202CSZIC GATE DRVR LOW-SIDE 8SOIC |
8,619 | 3.82 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 15V | 0.8V, 2.4V | 2A, 2A | Non-Inverting | - | 7.5ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

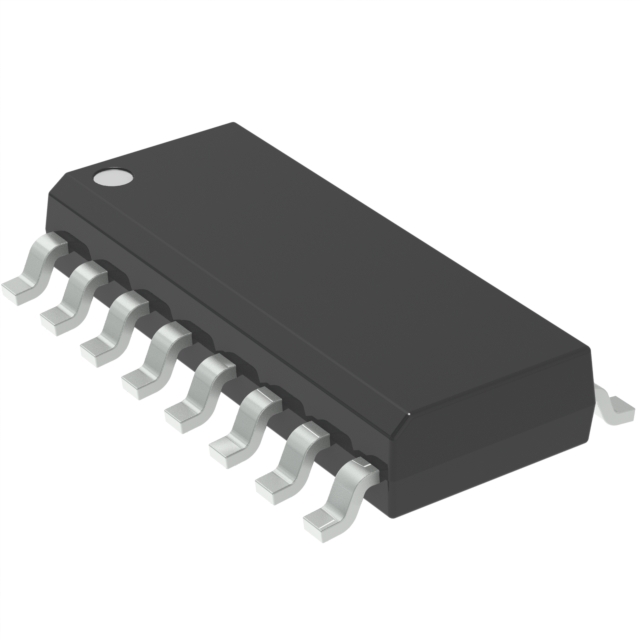

NCD5700DR2GIC GATE DRVR HI/LOW SIDE 16SOIC |
3,334 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Synchronous | 1 | IGBT | 20V | 0.75V, 4.3V | 7.8A, 6.8A | Inverting | - | 9.2ns, 7.9ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
EL7202CSZ-T7IC GATE DRVR LOW-SIDE 8SOIC |
2,679 | 3.82 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 15V | 0.8V, 2.4V | 2A, 2A | Non-Inverting | - | 7.5ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
2ED2410EMXUMA1IC GATE DRVR HIGH-SIDE 24TSSOP |
6,691 | 5.26 |
|
Datasheet |
EiceDRIVER™ | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Independent | 2 | N-Channel MOSFET | 3V ~ 58V | 0.7V, 2.5V | 175mA, 1.4A (Typ) | Non-Inverting | - | 7µs, 2µs | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSO-24 |
|
TC4468COE713IC GATE DRVR LOW-SIDE 16SOIC |
2,621 | 5.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Non-Inverting | - | 15ns, 15ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
TC4469COE713IC GATE DRVR LOW-SIDE 16SOIC |
1,364 | 5.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting, Non-Inverting | - | 15ns, 15ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
TC4468COEIC GATE DRVR LOW-SIDE 16SOIC |
1,002 | 5.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Non-Inverting | - | 15ns, 15ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
LMG1020YFFTIC GATE DRVR LOW-SIDE 6DSBGA |
742 | 6.10 |
|
Datasheet |
- | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.75V ~ 5.25V | 1.8V, 1.7V | 7A, 5A | Inverting, Non-Inverting | - | 375ps, 350ps | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA |
|
|
TC4468EOEIC GATE DRVR LOW-SIDE 16SOIC |
1,421 | 5.51 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Non-Inverting | - | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
HIP2101EIBZTIC GATE DRVR HALF-BRIDGE 8SOIC |
3,642 | 4.58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 0.8V, 2.2V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
HIP2101IBZTIC GATE DRVR HALF-BRIDGE 8SOIC |
7,135 | 4.58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 0.8V, 2.2V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NCP51705MNTXGIC GATE DRVR LOW-SIDE 24QFN |
2,874 | 1.00 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | SiC MOSFET | 10V ~ 22V | 1.2V, 1.6V | 6A, 6A | Inverting, Non-Inverting | - | 8ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-QFN (4x4) |
|
|
LTC1693-1CS8#PBFIC GATE DRVR HI/LOW SIDE 8SOIC |
10,120 | 5.73 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | 1.7V, 2.2V | 1.5A, 1.5A | Non-Inverting | - | 16ns, 16ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
