PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRG0120FF2EPTC RESET FUSE 30V 1.2A RADIAL |
749 | 0.45 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.2 A | 2 A | 40 A | 700 ms | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
RUSBF090PTC RESET FUSE 16V 900MA RADIAL |
558 | 0.56 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|

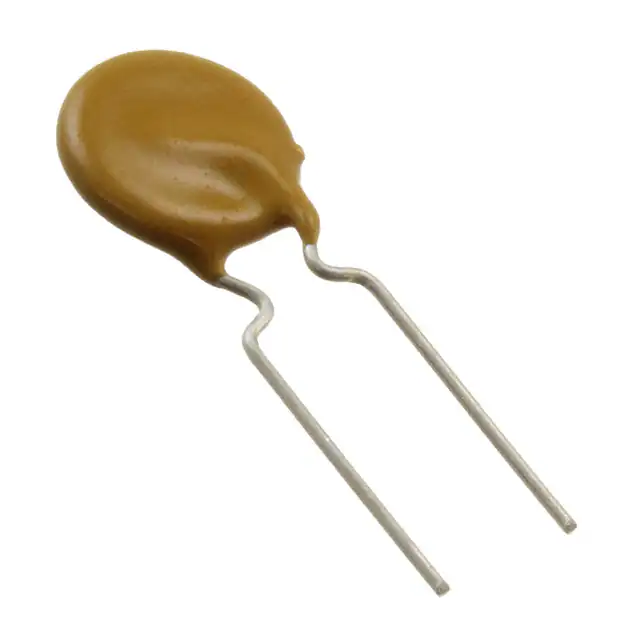

0ZRN0100FF1EPTC RESET FUSE 30V 1A RADIAL |
1,837 | 0.75 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
RKEF135PTC RESET FUSE 60V 1.35A RADIAL |
471 | 0.59 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 4.5 s | 110 mOhms | 370 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.150" W (10.20mm x 3.80mm) | 0.669" (17.00mm) | - | 0.200" (5.08mm) |
|
RUEF135-2PTC RESET FUSE 30V 1.35A RADIAL |
228 | 0.52 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 100 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
60R040XUPTC RESET FUSE 60V 400MA RADIAL |
115 | 0.49 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
RGEF300PTC RESET FUSE 16V 3A RADIAL |
252 | 0.60 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.260" L x 0.098" W (6.60mm x 2.50mm) | 0.433" (11.00mm) | - | 0.199" (5.05mm) |
|
RHEF070PTC RESET FUSE 30V 700MA RADIAL |
780 | 0.63 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|
RHEF100PTC RESET FUSE 30V 1A RADIAL |
247 | 0.63 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
RXEF110KPTC RESET FUSE 72V 1.1A RADIAL |
166 | 0.52 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) | 0.689" (17.50mm) | - | 0.199" (5.05mm) |
|
RGEF400PTC RESET FUSE 16V 4A RADIAL |
721 | 0.64 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
MICROASMD010F-2PTC RESET FUSE 30V 100MA 1210 |
466 | 0.57 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 250 mA | 10 A | 1 s | 2.1 Ohms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.026" (0.67mm) | - |
|
60R030XUPTC RESET FUSE 60V 300MA RADIAL |
250 | 0.45 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

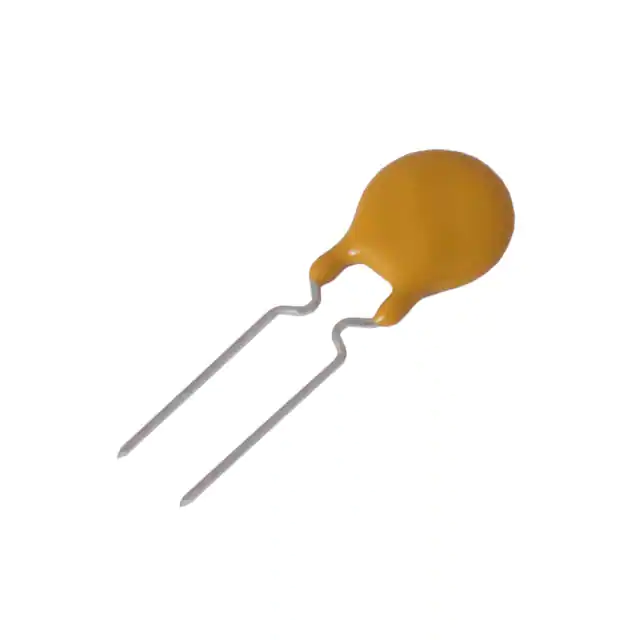

0ZRS0050FF1EPTC RESET FUSE 32V 500MA RADIAL |
754 | 0.81 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 500 mA | 1 A | 100 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
2920L035DRPOLYSWITCH RESETTABLE PPTC |
882 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 72V | 350 mA | 700 mA | 10 A | 5 s | 500 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RHEF200PTC RESET FUSE 16V 2A RADIAL |
886 | 0.68 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 4.3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
|

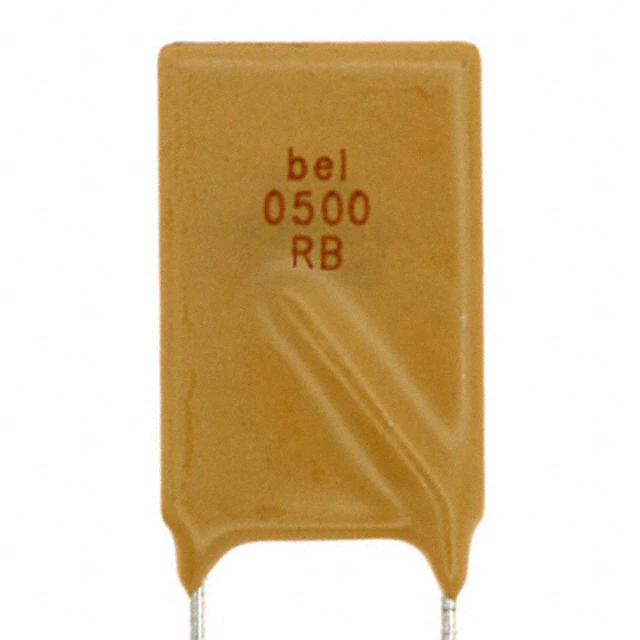

0ZRB0500FF1APTC RESET FUSE 30V 5A RADIAL |
650 | 0.57 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
PTSLR12066V300PTC RESET FUSE 6V 3A 1206 |
3,947 | 0.52 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 4 s | 3 mOhms | 26 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
60R065XUPTC RESET FUSE 60V 650MA RADIAL |
480 | 0.51 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
60R010XUPTC RESET FUSE 60V 100MA RADIAL |
333 | 0.46 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
