PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-FSML300/6-2PTC RESET FUSE 6V 3A 0603 |
397 | 1.45 |
|
Datasheet |
0603 (1608 Metric), Concave | Multifuse®, MF-FSML | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.055" (1.40mm) | - |
|
1210L005WRPTC RESET FUSE 30V 50MA 1210 |
1,879 | 0.52 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
RUEF250-APPTC RESET FUSE 30V 2.5A RADIAL |
646 | 0.56 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.199" (5.05mm) |
|
1206L010/60WRPTC RESET FUSE 60V 100MA 1206 |
456 | 0.57 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 250 mA | 10 A | 1.5 s | 1.5 Ohms | 10 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
SMD100F-2PTC RESET FUSE 30V 1.1A 2SMD |
4,692 | 0.47 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 480 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
MINISMDC110F/24-2PTC RESET FUSE 24V 1.1A 1812 |
2,277 | 0.61 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.057" (1.46mm) | - |
|
2016L030DRPTC RESET FUSE 60V 300MA 2016 |
199 | 0.67 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 20 A | 3 s | 500 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.049" (1.25mm) | - |
|

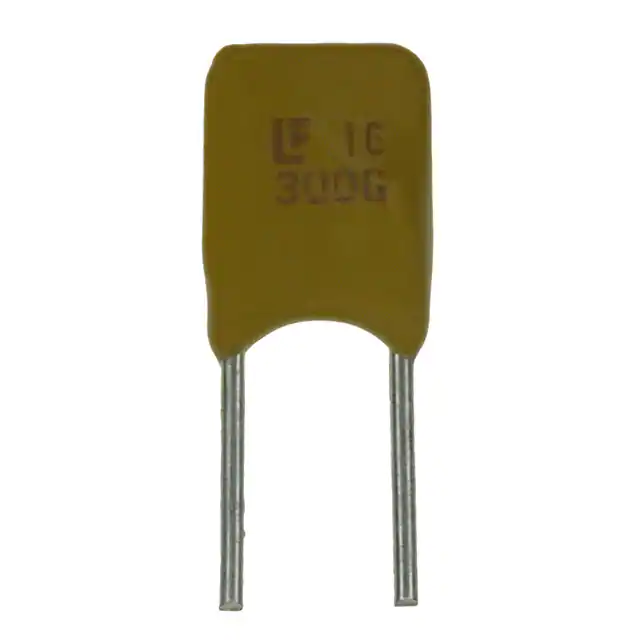

16R300GUPTC RESET FUSE 16V 3A RADIAL |
938 | 0.61 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
2016L100/33DRPTC RESET FUSE 33V 1.1A 2016 |
2,972 | 0.77 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.049" (1.25mm) | - |
|
MINISMDC200F/16-2PTC RESET FUSE 16V 2A 1812 |
544 | 0.79 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 4 A | 40 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.048" (1.22mm) | - |
|
TRF250-120PTC RESET FUSE 60V 120MA RADIAL |
461 | 0.80 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
|
2016L075/60MRPTC RESET FUSE 60V 750MA 2016 |
373 | 0.86 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 20 A | 500 ms | 130 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.079" (2.00mm) | - |
|
RXEF250PTC RESET FUSE 72V 2.5A RADIAL |
870 | 0.78 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.819" Dia x 0.118" T (20.80mm x 3.00mm) | 1.000" (25.40mm) | - | 0.400" (10.15mm) |
|
1812L035/60MRPTC RESET FUSE 60V 350MA 1812 |
840 | 0.96 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 350 mA | 700 mA | 10 A | 150 ms | 400 mOhms | 1.7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|
|
1812L260/12MRPTC RESET FUSE 12V 2.6A 1812 |
744 | 0.98 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 12V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.34mm) | - |
|
B59870C0120A070PTC RESET FUSE 265V 100MA RADIAL |
2,374 | 1.79 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
0603L003/36YRPTC RESET FUSE 36V 30MA 0603 |
2,817 | 1.69 |
|
Datasheet |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 36V | 30 mA | 90 mA | 40 A | 1 s | 6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
2920L500/16MRPTC RESET FUSE 16V 5A 2920 |
1,477 | 1.84 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 10 A | 40 A | 5 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
1210L900SLPRPTC RESET FUSE 9.0A 6V 1210 |
965 | 2.19 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 9 A | 18 A | 50 A | 2 s | 1 Ohms | 5.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|

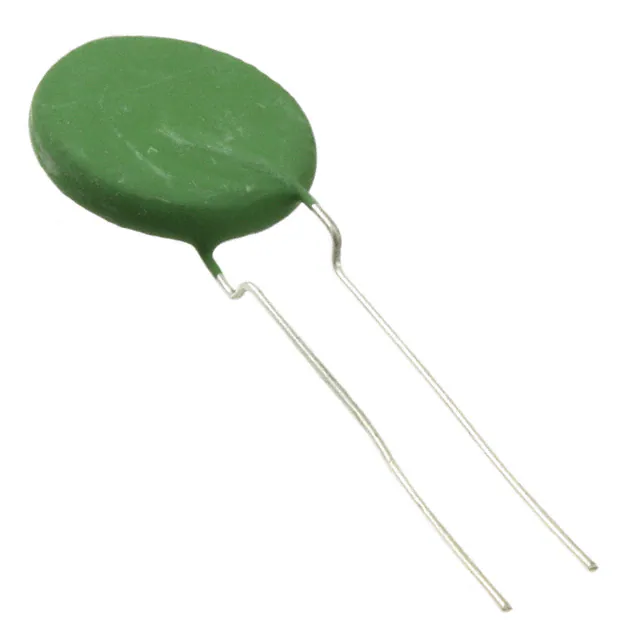

YQD120N0006PTC RESET FUSE 265V 390MA RADIAL |
1,271 | 4.12 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 390 mA | 780 mA | 3.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | - | - | 0.201" (5.10mm) |
