PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUEF600-2PTC RESET FUSE 30V 6A RADIAL |
1,002 | 0.89 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.400" (10.15mm) |
|
|
RUEF700PTC RESET FUSE 30V 7A RADIAL |
538 | 0.93 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 7 A | 14 A | 100 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.020" (25.90mm) | - | 0.400" (10.15mm) |
|
RXEF250-2PTC RESET FUSE 72V 2.5A RADIAL |
1,637 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.819" Dia x 0.118" T (20.80mm x 3.00mm) | 1.000" (25.40mm) | - | 0.400" (10.15mm) |
|
30R300UUPTC RESET FUSE 30V 3A RADIAL |
749 | 0.62 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.756" (19.20mm) | - | 0.201" (5.10mm) |
|
PTCCL05H100SBEPTC RESET FUSE 600V RADIAL DISC |
792 | 1.52 |
|
Datasheet |
Radial, Disc | PTCCL - 600V | Bulk | Active | Ceramic | 600V | 10 mA | 20 mA | 2 A | - | - | - | 1.6 kOhms | -20°C ~ 85°C | - | - | - | Through Hole | 0.197" Dia x 0.177" T (5.00mm x 4.50mm) | 0.409" (10.40mm) | - | 0.197" (5.00mm) |
|
600R160URPTC RESET FUSE 60V 160MA RADIAL |
2,997 | 1.08 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Cut Tape (CT) | Active | Polymeric | 60V (600V Int) | 160 mA | 320 mA | 3 A | 10 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.201" (5.10mm) |
|
3425L260/60UR3425L PPTC |
1,037 | 0.00 |
|
Datasheet |
Nonstandard SMD | 3425L | Tape & Reel (TR) | Active | Polymeric | 60V | 2.6 A | 5.2 A | 20 A | 10 s | 20 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.341" L x 0.250" W (8.65mm x 6.35mm) | - | 0.118" (3.00mm) | - |
|

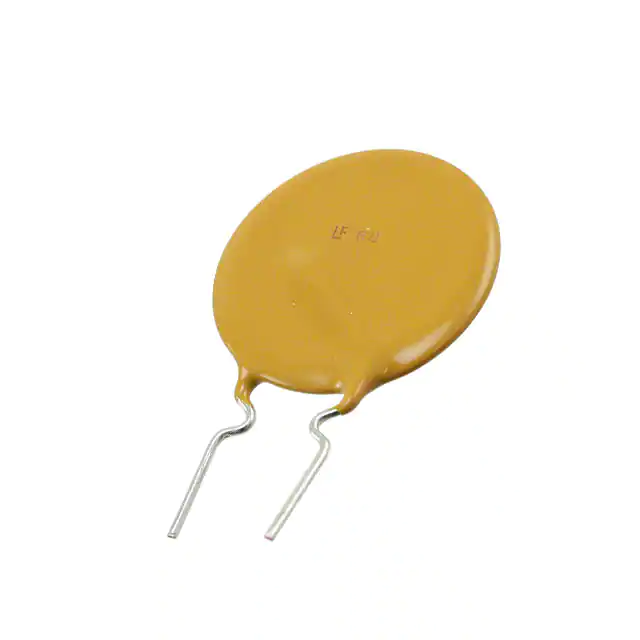

60R300XFPTC RESET FUSE 60V 3A RADIAL |
1,529 | 0.73 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.910" Dia x 0.122" T (23.11mm x 3.10mm) | 1.154" (29.30mm) | - | 0.402" (10.20mm) |
|

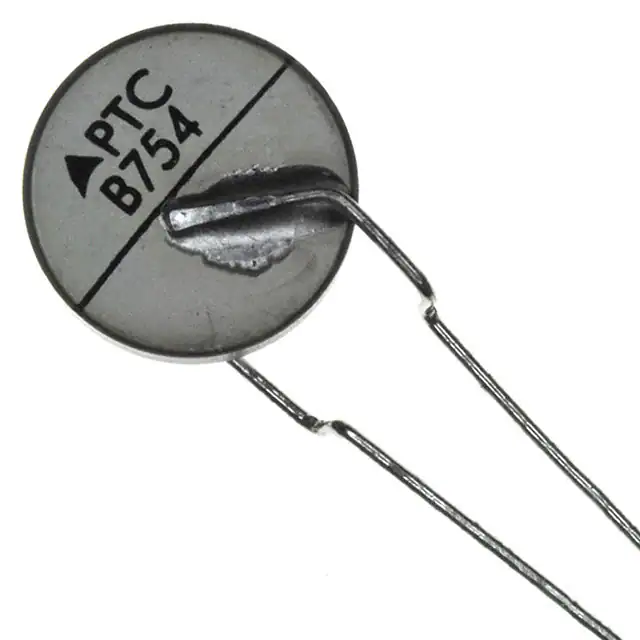

B59754B0120A070PTC RESET FUSE 420V RADIAL DISC |
1,334 | 0.00 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 420V | - | 100 mA | 2 A | 3 s | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.492" Dia x 0.276" T (12.50mm x 7.00mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
B59810C0130A070PTC RESET FUSE 265V 650MA RADIAL |
4,841 | 3.85 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 650 mA | 980 mA | 7 A | - | - | - | 3.5 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.866" Dia x 0.197" T (22.00mm x 5.00mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
PTCCL21H701HBEPTC RESET FUSE 265V 700MA RADIAL |
3,302 | 5.91 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 700 mA | 1.05 A | 5.5 A | - | - | - | 2.8 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.807" Dia x 0.217" T (20.50mm x 5.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
SMD1812B110TF/16PTC RESET FUSE 16V 1.1A 1812 |
167 | 0.15 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 1.95 A | 100 A | 300 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.079" (2.00mm) | - |
|
|
SMD1812B110TF/24PTC RESET FUSE 8V 1.1A 1812 |
200 | 0.19 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.079" (2.00mm) | - |
|
|
SMD1812B260TF/12PTC RESET FUSE 12V 2.6A 1812 |
839 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 12V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|
PTS18126V260PTC RESET FUSE 6V 2.6A 1812 |
1,195 | 0.21 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

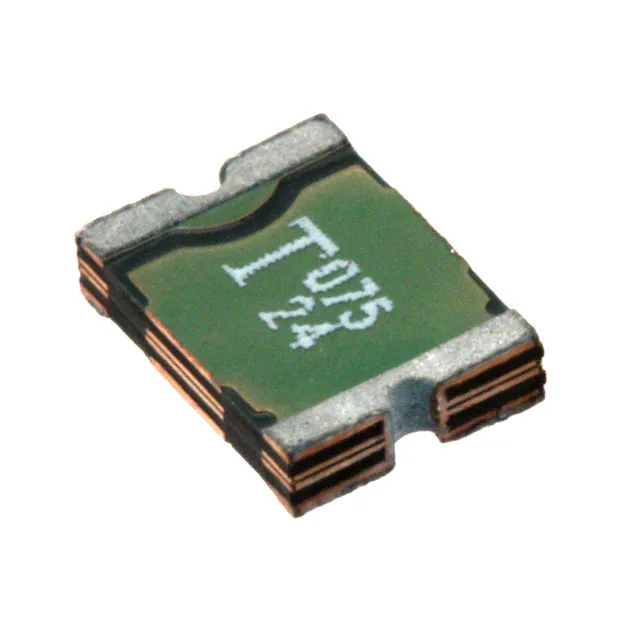

PTS181224V075PTC RESET FUSE 24V 750MA 1812 |
785 | 0.21 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
BK30-300-SZPTC RESET FUSE 30V 3A RAD |
190 | 0.37 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 22 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.520" L x 0.122" W (13.20mm x 3.10mm) | 0.807" (20.50mm) | - | 0.201" (5.10mm) |
|
0ZRR0075FF1EPTC RESET FUSE 60V 750MA RADIAL |
206 | 0.42 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
PTR060V0025-BKPTC RESET FUSE 60V 250MA RADIAL |
855 | 0.26 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|
|
SMD2920B100TFPTC RESET FUSE 33V 1.1A 2920 |
844 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 65 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (0.98mm) | - |
