PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRN0300FF1EPTC RESET FUSE 16V 3A RADIAL |
990 | 0.75 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|

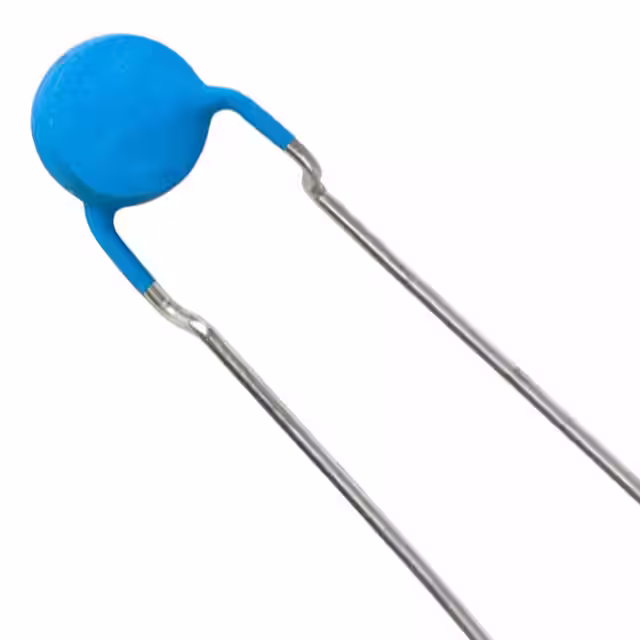

B59980C0130A070PTC RESET FUSE 80V 85MA RADIAL |
961 | 0.79 |
|
Datasheet |
Radial, Disc | B59980 | Bulk | Active | Ceramic | 80V | 85 mA | 130 mA | 700 mA | - | - | - | 62 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
AHEF070PTC RESET FUSE 32V 700MA RADIAL |
473 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 700 mA | 1.4 A | 100 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.118" (3.00mm) |
|
PTSLR12106V500PTC RESET FUSE 6V 5A 1210 |
126 | 0.68 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 2 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
2920L300DRPTC RESET FUSE 6V 3A 2920 |
906 | 0.79 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5 A | 40 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
AHS200-2PTC RESET FUSE 16V 2A 2SMD |
783 | 0.79 |
|
Datasheet |
2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 4 A | 70 A | 13.4 s | 50 mOhms | 140 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
MF-NSML500/6-2PTC RESET FUSE 6V 5A 1206 |
747 | 0.87 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 50 A | 5 s | 2 mOhms | 11 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.039" (1.00mm) | - |
|
TRF250-180PTC RESET FUSE 100V 180MA RADIAL |
108 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bulk | Active | Polymeric | 100V (250V Int) | 180 mA | 650 mA | 10 A | 2 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.150" T (9.00mm x 3.80mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
LVR025S-1PTC RESET FUSE 240V 250MA RADIAL |
400 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.200" (5.08mm) |
|
TRF250-145UPTC RESET FUSE 60V 145MA RADIAL |
540 | 0.90 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 4 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
AHRF450S-1PTC RESET FUSE 16V 4.5A RADIAL |
1,000 | 0.91 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 4.5 A | 8.7 A | 100 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|
RKEF375KPTC RESET FUSE 60V 3.75A RADIAL |
806 | 0.81 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|

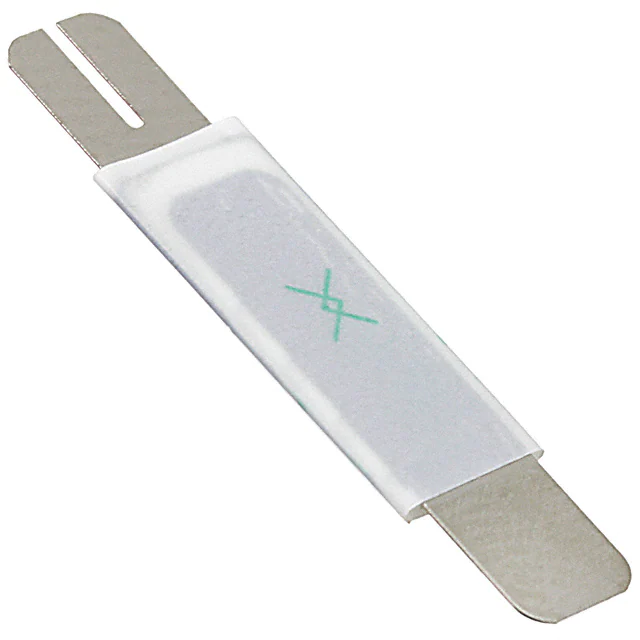

VTP210SFPTC RESET FUSE 16V 2.1A STRAP |
688 | 0.91 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.909" L x 0.209" W (23.10mm x 5.30mm) | - | 0.032" (0.80mm) | - |
|

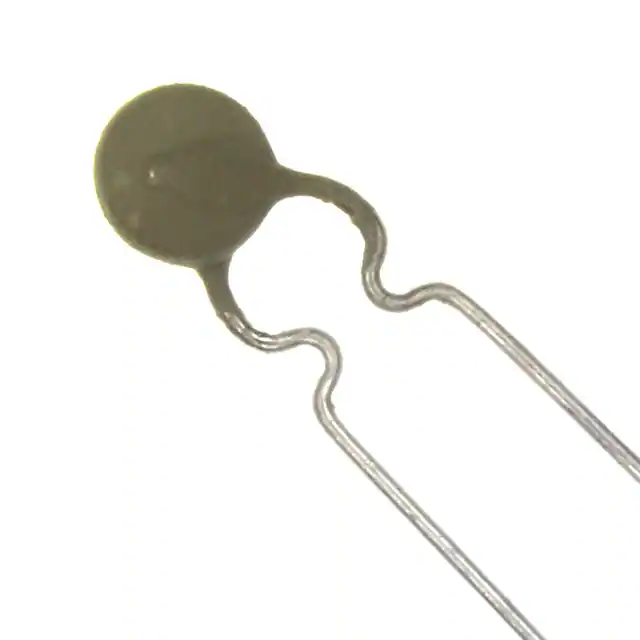

PTCCL05H940EBEPTC RESET FUSE 60V 94MA RADIAL |
671 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 60V | Bulk | Active | Ceramic | 60V | 94 mA | 145 mA | 800 mA | - | - | - | 50 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PICOASMDC010S-2PTC RESET FUSE 15V 100MA 0805 |
504 | 0.82 |
|
Datasheet |
0805 (2012 Metric) | PolySwitch®, picoASMDC | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 20 A | 600 ms | 1.5 Ohms | 11 Ohms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.040" (1.02mm) | - |
|
AHRF550PTC RESET FUSE 16V 5.5A RADIAL |
219 | 0.91 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 13 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.199" (5.05mm) |
|
60R075XUPTC RESET FUSE 60V 750MA RADIAL |
459 | 0.51 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
PTSLR12066V350PTC RESET FUSE 6V 3.5A 1206 |
227 | 0.64 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 5 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
LVR033KPTC RESET FUSE 240V 330MA RADIAL |
214 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
AHRF300PTC RESET FUSE 16V 3A RADIAL |
500 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 3 A | 6.5 A | 100 A | 5 s | 29 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.199" (5.05mm) |
