PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RHEF100-APPTC RESET FUSE 30V 1A RADIAL |
840 | 0.67 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Cut Tape (CT) | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|

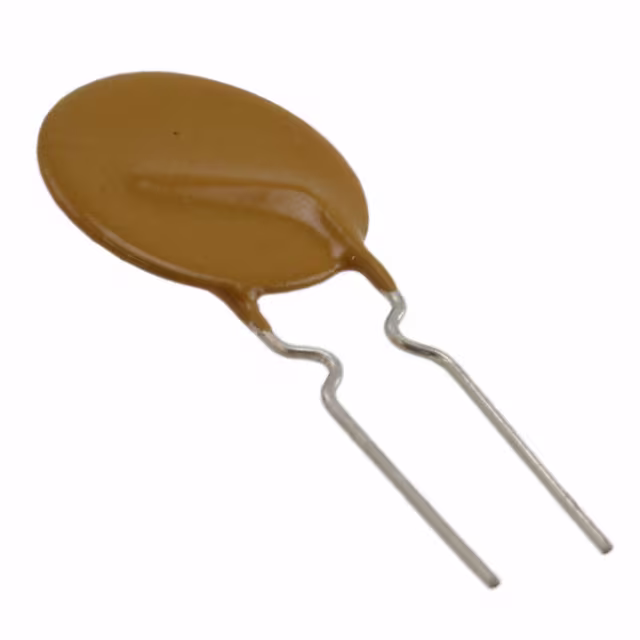

PFRA.185PTC RESET FUSE 30V 1.85A RADIAL |
637 | 0.60 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
|
0ZRR0250FF1APTC RESET FUSE 60V 2.5A RADIAL |
233 | 0.48 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.839" Dia x 0.122" T (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
RXEF135-2PTC RESET FUSE 72V 1.35A RADIAL |
599 | 0.58 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) | 0.752" (19.10mm) | - | 0.199" (5.05mm) |
|
0ZRP0160FF1APTC RESET FUSE 60V 1.6A RADIAL |
3,501 | 0.59 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 9 s | 100 mOhms | 320 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.480" L x 0.142" W (12.20mm x 3.60mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
RUEF400-APPTC RESET FUSE 30V 4A RADIAL |
191 | 0.71 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.760" (19.30mm) | - | 0.199" (5.05mm) |
|
PFRA.300PTC RESET FUSE 30V 3A RADIAL |
159 | 0.65 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|

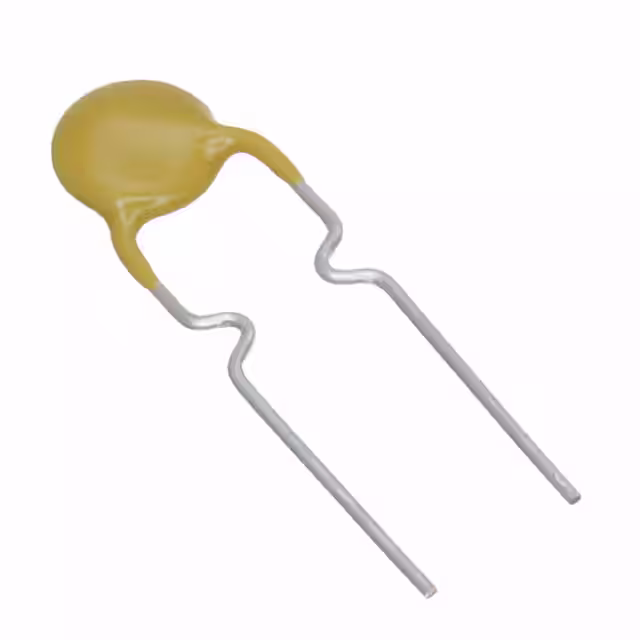

AHRF050PTC RESET FUSE 30V 500MA RADIAL |
601 | 0.74 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 30V | 500 mA | 1 A | 40 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.130" T (7.40mm x 3.30mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
60R090XUPTC RESET FUSE 60V 900MA RADIAL |
451 | 0.52 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.122" T (11.20mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
RGEF500-1PTC RESET FUSE 16V 5A RADIAL |
125 | 0.75 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
;RA.JPG)
|
PRG21AR420MS1RAPTC RESET FUSE 20V 54MA 0805 |
648 | 1.12 |
|
Datasheet |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 54 mA | 100 mA | 590 mA | - | - | - | 42 Ohms | -40°C ~ 105°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - |
|
LR4-190FPTC RESET FUSE 15V 1.9A STRAP |
642 | 0.76 |
|
Datasheet |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.205" W (21.00mm x 5.20mm) | - | - | - |
|
RXEF185KPTC RESET FUSE 72V 1.85A RADIAL |
390 | 0.62 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.118" T (16.76mm x 3.00mm) | 0.906" (23.00mm) | - | 0.199" (5.05mm) |
|
LVR016KPTC RESET FUSE 240V 160MA RADIAL |
352 | 0.76 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.543" (13.80mm) | - | 0.200" (5.08mm) |
|
PTR030V0600-BKPTC RESET FUSE 30V 6A RADIAL |
290 | 0.56 |
|
Datasheet |
Radial, Disc | PTR030V | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.169" (29.70mm) | - | 0.394" (10.00mm) |
|
PFRA.400PTC RESET FUSE 30V 4A RADIAL |
3,990 | 0.69 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
MF-RX030/72-0PTC RESET FUSE 72V 300MA RADIAL |
477 | 0.64 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
RGEF700PTC RESET FUSE 16V 7A RADIAL |
464 | 0.78 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
MF-RX250/72-2PTC RESET FUSE 72V 2.5A RADIAL |
446 | 0.67 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.702" L x 0.122" W (17.84mm x 3.10mm) | 0.939" (23.84mm) | - | 0.402" (10.20mm) |
|
MINIASMDC260F/13.2-2PTC RESET FUSE 13.2V 2.6A 1812 |
163 | 0.79 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Bulk | Active | Polymeric | 13.2V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.060" (1.52mm) | - |
